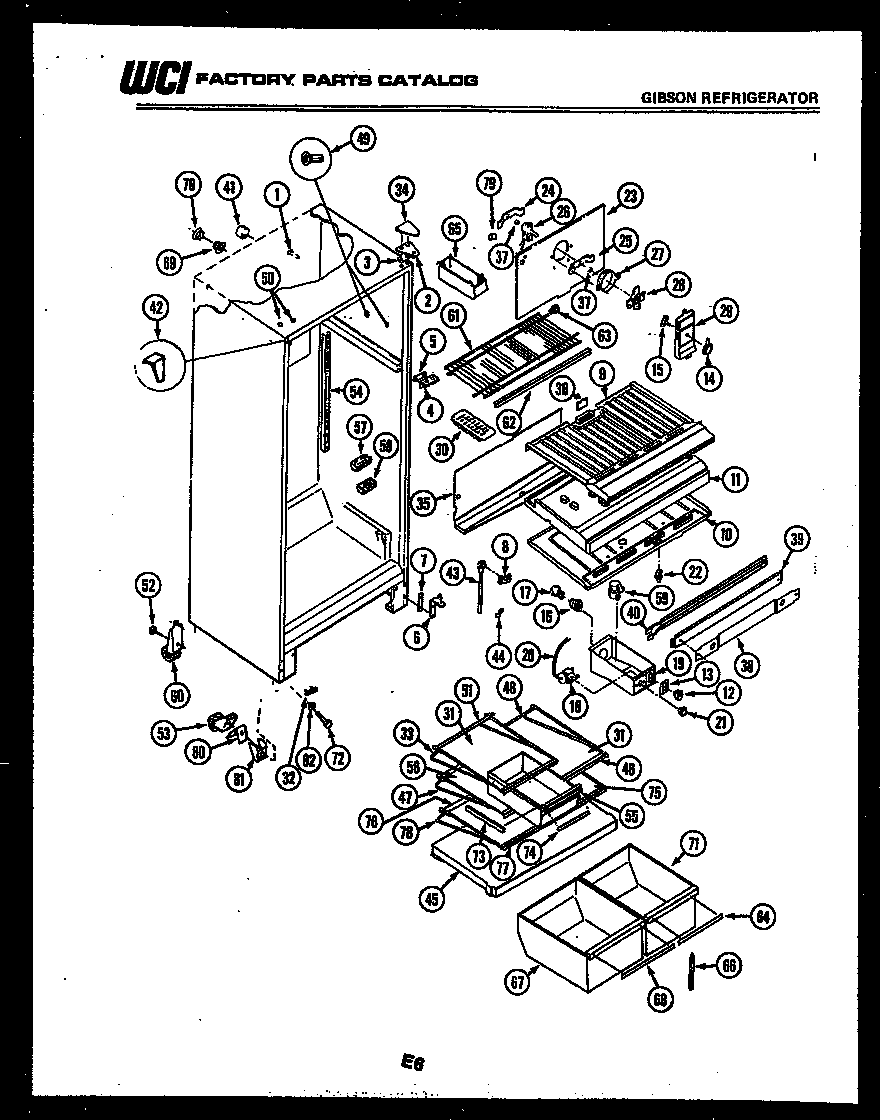

RT17F9WT3B 05 – CABINET PARTSadmin2025-04-26T10:18:51+00:00RT17F9WT3B 05 – CABINET PARTS
Products
| Position | Product |
|---|
| *50702 | BUTTON, PLUG, LINER (2) |
| *50698 | BUTTON, PLUG, ICE MAKER HARNESS |
| *50699 | HARNESS, WIRING |
| *50692 | SERVICE DATA SHEET |
| *50697 | BUTTON, PLUG, WATER INLET |
| *50695 | BUTTON, LINER |
| *50697 | BUTTON-DECORATIVE |
| *50703 | WCI G188124 |
| *50706 | WCI G183100-59 |
| 47 | WCI G187218-07 |
| 48 | TRIM, SHELF, REAR (3) (REGULAR) |
| 49A | 5304500407 Frigidaire Refrigerator Shelf Mounting Grommet |
| 49 | 5304509705 Frigidaire Refrigerator Grommet |
| 50 | WCI G174747-08 |
| 50 | WCI G174747-11 |
| 50 | WCI G174747-10 |
| 50 | WCI G174747--01 |
| 50 | WCI G174747-09 |
| 51 | TRIM, SHELF, REAR (MEAT KEEPER) |
| 52 | BOLT ROLLER (2) |
| 53 | ROLLER FRONT, ADJUSTABLE (2) |
| 54A | 5304455852 Frigidaire Refrigerator Screw |
| 54 | CHANNEL, SHELF (2) |
| 54B | CHANNEL, CENTER SHELF, MOUNTING |
| 55 | WCI G176918-12 |
| 56 | WCI G171654-55 |
| 57 | WCI G162178 |
| 58 | DEFLECTOR AIR |
| 59 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 59A | 5304455649 Frigidaire Refrigerator Screw |
| 60 | ROLLER, REAR (2) |
| 61 | WCI G177059-10 |
| 62 | TRIM - SHELF |
| 63 | WCI G166495-01 |
| 64 | WCI G177343-16 |
| 65 | WCI G163022-03 |
| 66 | SUPPORT, CRISPER COVER |
| 67 | WCI G490015-49 |
| 68 | TRIM |
| 69 | WCI G174733 |
| 70 | WCI G174734 |
| 71 | WCI G490015-48 |
| 72 | BOLT-ROLLER (2) |
| 73A | HANGAR, RIGHT SIDE |
| 73 | HANGAR, LEFT SIDE |
| 74 | WCI G177343-10 |
| 75 | WCI G171654-56 |
| 76 | WCI G172436-17 |
| 77 | WCI G172410-10 |
| 78 | WCI G171608-19 |
| 79 | WCI G164571 |
| 80 | SPRING-ROLLER (2) |
| 81 | SUPPORT, ROLLER (2) |
| 82 | WCI G183799 |
