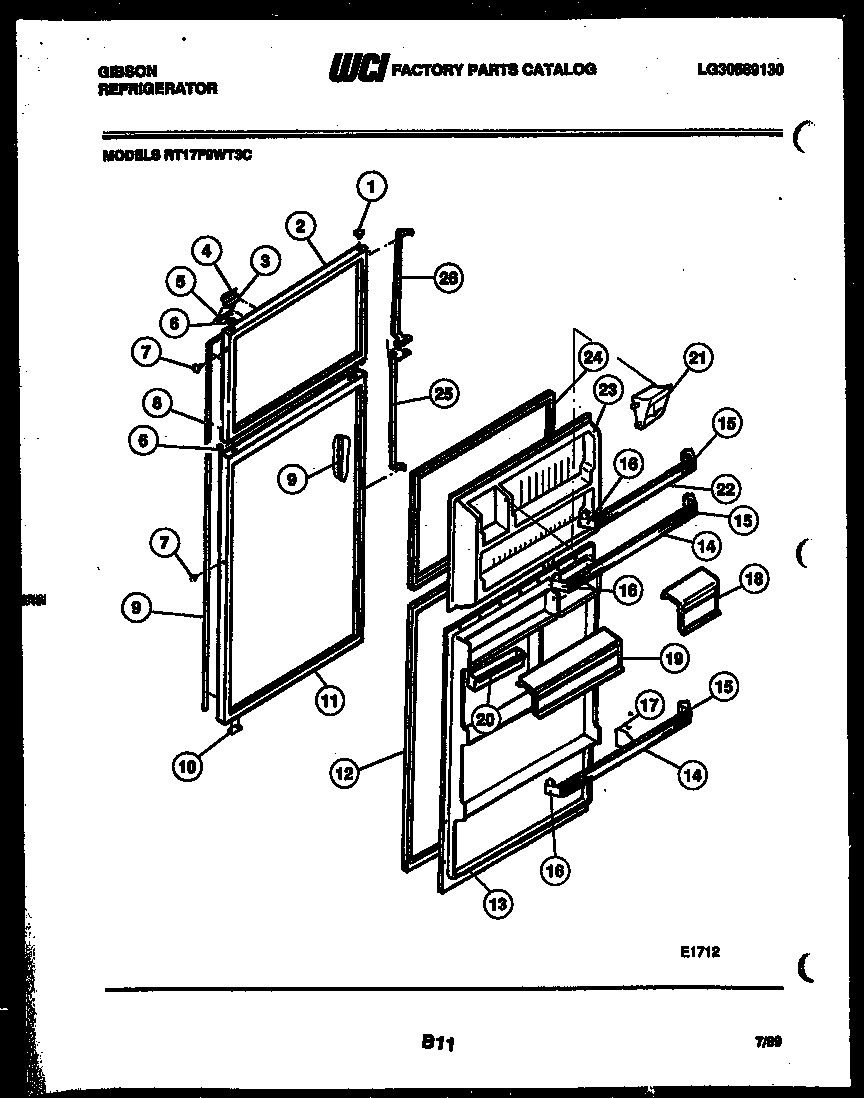

RT17F9WT3C 02 – DOOR PARTSadmin2025-04-26T10:18:27+00:00RT17F9WT3C 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *17493 | WCI G89643 |
| 1 | WCI G169332-09 |
| 1 | WCI G169332-08 |
| 1 | WCI G169332-11 |
| 1 | WCI G169332-10 |
| 1 | WCI G169332-01 |
| 2 | WCI G189018-10 |
| 2 | WCI G189018-11 |
| 2 | WCI G189018-09 |
| 2 | WCI G189018-08 |
| 2 | WCI G189018 |
| 3 | NAMEPLATE |
| 3A | TAPE-FRAME MOUNTING (NON-ILLUSTRATED) |
| 4 | LABEL, UPPER |
| 5 | LABEL-LOWER |
| 6 | BEARING, HINGE (3) |
| 7 | WCI G162977-11 |
| 7 | 240494001 Frigidaire Refrigerator Plug Button |
| 7 | WCI G162977-10 |
| 7 | WCI G162977-09 |
| 7 | WCI G162977-08 |
| 8 | WCI G167404-01 |
| 9 | TRIM (2) |
| 10 | STOP, DOOR. PC & FC (2) |
| 10A | WCI G185566 |
| 11 | WCI G189020 |
| 11 | WCI G189020-09 |
| 11 | WCI G189020-10 |
| 11 | WCI G189020-11 |
| 11 | WCI G189020-08 |
| 12 | 218730603 Frigidaire Door Gasket |
| 13 | WCI G187494-02 |
| 14 | RACK-REFR/FRZR (3) |
| 15 | SUPPORT, RACK, RH, (PC) (2) |
| 16 | SUPPORT, RACK, LH (PC) (2) |
| 17 | SNUGGER-SHELF (2) (NON-ILLUSTRATED) |
| 18 | DOOR-DAIRY RS |
| 19 | DOOR, DAIRY (2) |
| 20 | TRAY, UTILITY |
| 21 | DISPENSER-JUICE CAN |
| 22 | RACK-FRZR UPPER |
| 23 | PANEL-FREEZER INNER DOOR |
| 23A | 5304455651 Frigidaire Refrigerator Screw |
| 24 | GASKET-FREEZER |
| 25 | HANDLE ASSEMBLY |
| 26 | HANDLE ASSEMBLY |
