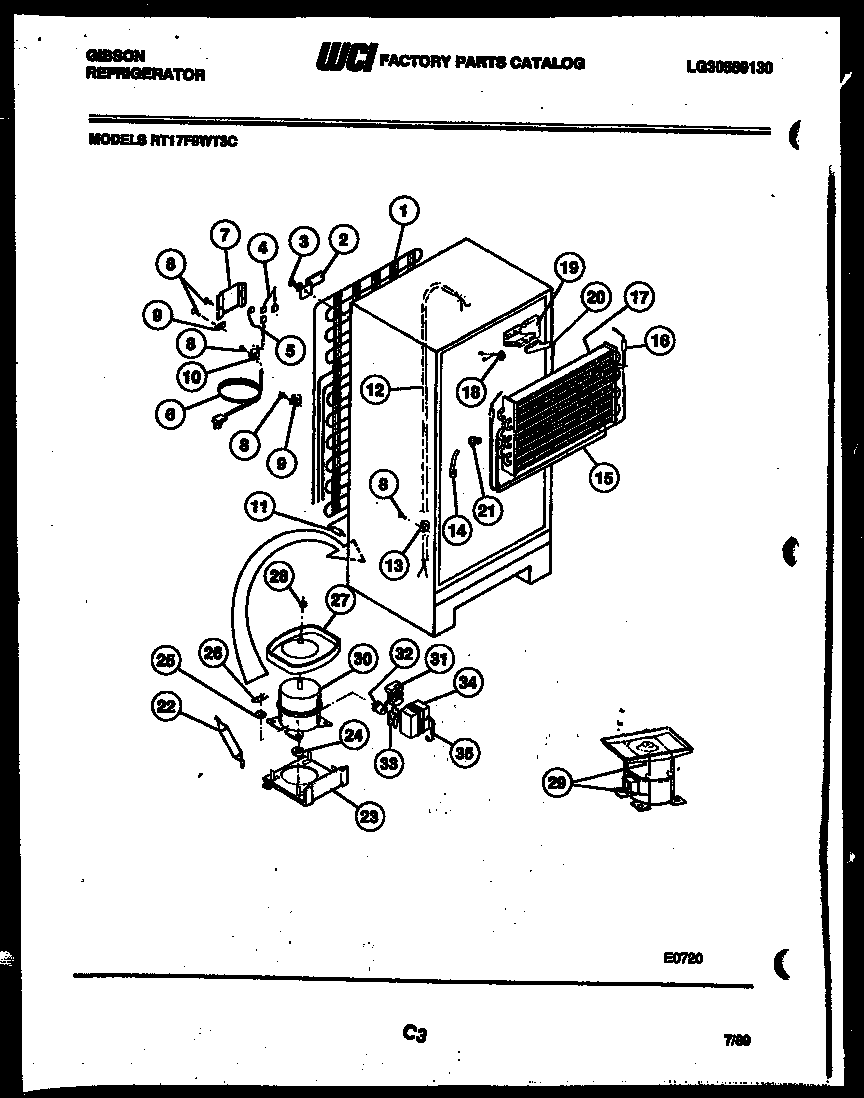

RT17F9WT3C 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*17514HOT TUBE REPAIR KIT
1WCI G178225
2WCI G164367
3AWASHER
35308000039 Frigidaire Refrigerator Screw
4HARNESS, WIRING
5HARNESS-COMPRESSOR
85304455651 Frigidaire Refrigerator Screw
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
10240396801 Frigidaire Refrigerator Tube Clamp
115303017691 Frigidaire Refrigerator Spacer-Tube
12HEAT-EXCH
145308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15INSULATOR
16HEATER, DEFROST
17EVAPORATOR
185303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
19BLOCK, EVAPORATOR, RH
20PLUG, EVAPORATOR INSULATION BLOCK, R H
21BLOCK, LEFT SIDE
225303305677 Frigidaire Replacement Filter Dryer Filters
23PLATE
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WASHER, COMPRESSOR MOUNTING (4)
26CLIP, COMPRESSOR MOUNTING (4)
27DEFROST PAN & NUT
28NUT, LOCK
29PAN RETAINER KIT-SERVICE
30COMPRESSOR WITH ELECTRICALS
31WCI G182225-11
32WCI G187874
33RETAINER, OVERLOAD
355303006412 Frigidaire Refrigerator Cover Mounting Strap
