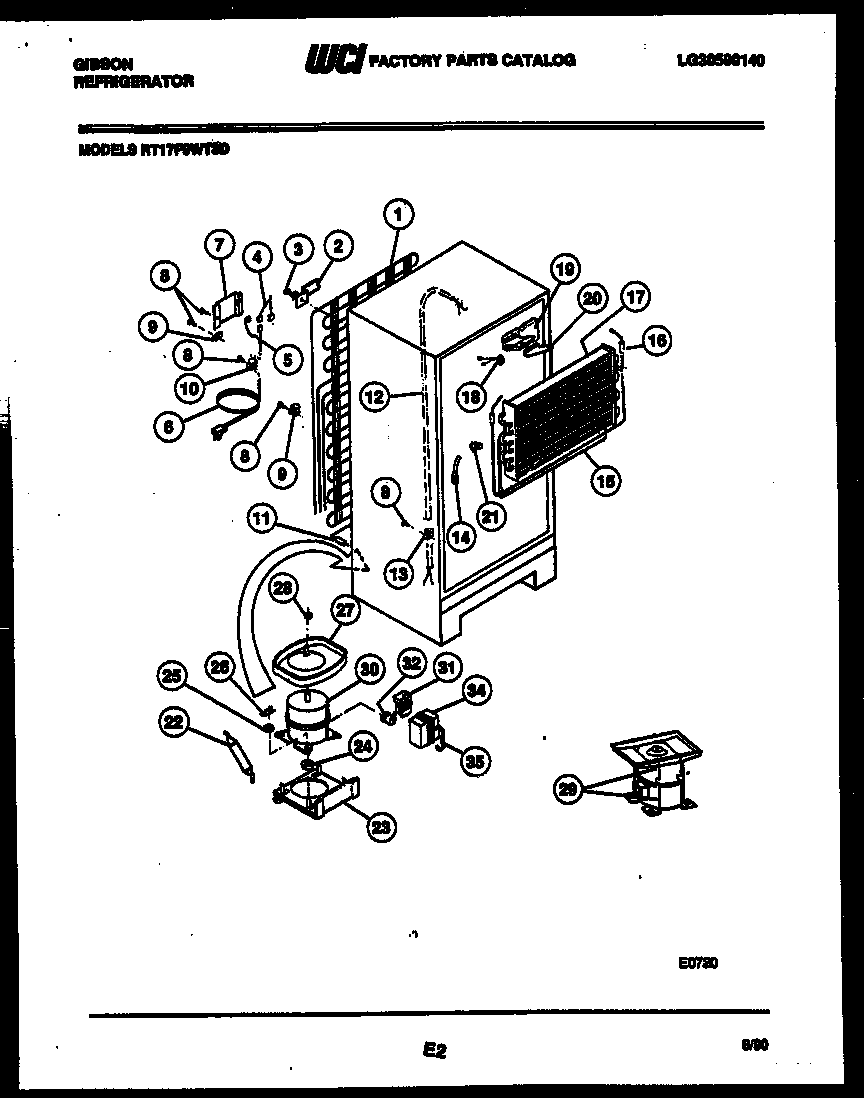

RT17F9WT3D 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*333395303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*33340HOT TUBE REPAIR KIT-SERVICE
1WCI 5303001341
2BRACKET-MTG (4)
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
35308000039 Frigidaire Refrigerator Screw
4HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
5WIRING HARNESS, COMPRESSOR,
6CORD-ELECTRIC POWER
7WCI 5303001197
85304455651 Frigidaire Refrigerator Screw
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
115303017691 Frigidaire Refrigerator Spacer-Tube
12WCI 5308000728
135308000133 Frigidaire Refrigerator Clamp
145308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15INSULATOR-EVAP, PLASTIC
16WCI 5308009754
17EVAPORATOR
185303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
19INSULATION BLOCK, RH
20INSULATION PLUG, RH
21INSULATION BLOCK, LH
225303305677 Frigidaire Replacement Filter Dryer Filters
23WCI 5308013663
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WASHER-COMPR MTG
26CLIP – COMPRESSOR MTG
27PAN-DEFROST DRAIN, ORIG/SVCE COMPR
28Nut,lock `1/4-20 ,drain pan mtg
29PAN RETAINER KIT, SERVICE
30COMPRESSOR W/ ELECTRICALS-SERVICE
31216594300 Frigidaire Refrigerator Starter
355303006412 Frigidaire Refrigerator Cover Mounting Strap
