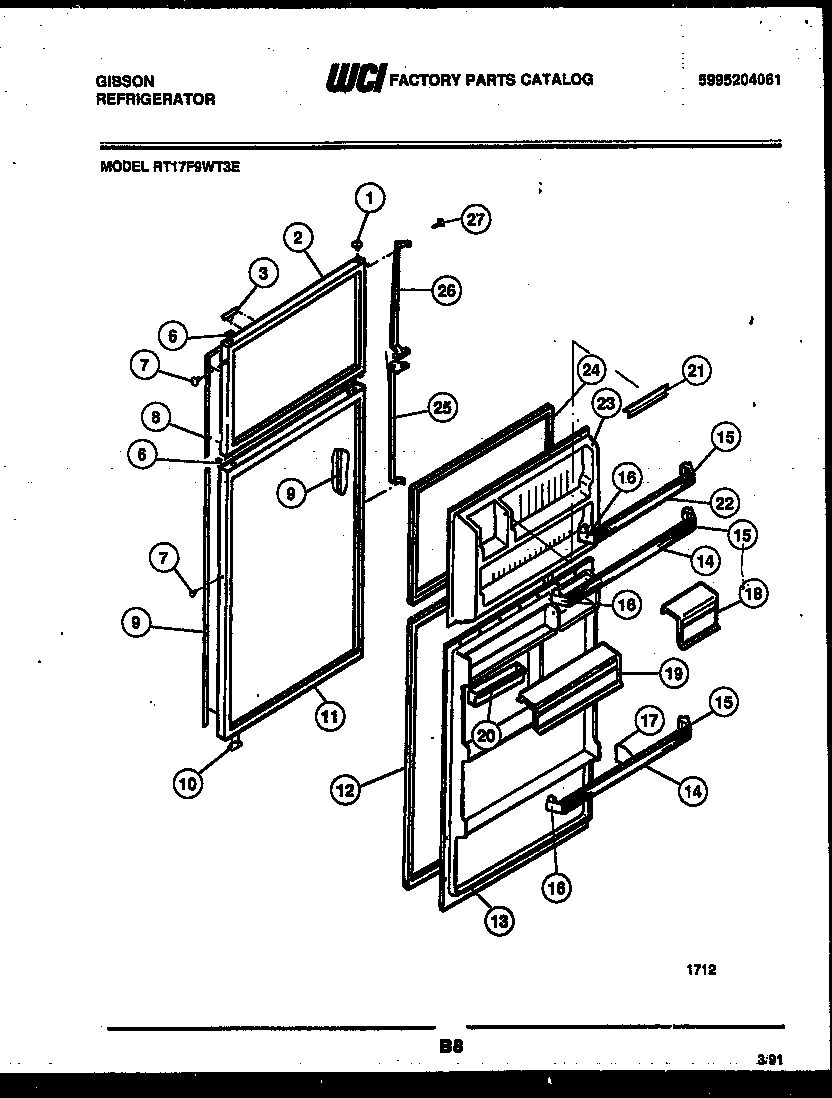

RT17F9WT3E 02 – DOOR PARTS

RT17F9WT3E 02 – DOOR PARTS

Written by

in

RT17F9WT3E 02 – DOOR PARTS

Products

PositionProduct
*36894INSULATION-BULK (NON-ILLUSTRATED)
1BUTTON-AVOCADO
1BUTTON-WHEAT
1BUTTON PLUG-COFFEE
1PLUG-BUTTON, WHITE, HINGE BRG HOLE
1PLUG-BUTTON, ALMOND, HINGE BRG HOLE
2WCI G189018
2WCI G189018-09
2WCI G189018-11
2WCI G189018-08
2WCI G189018-10
3BLABEL-NAMEPLATE UPR (NON-ILLUSTRATED)
3NAMEPLATE
3ATAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
3CLABEL-LOWER
6BEARING-HINGE
7BUTTON-WHEAT
7BUTTON-AVOCADO
7BUTTON PLUG-COFFEE
7PLUG-BUTTON, ALMOND, HANDLE/DR STOP
7240494001 Frigidaire Refrigerator Plug Button
8WCI G167404-01
9TRIM (2)
10AWCI 5308000255
10DOOR STOP, REFR SECTION
11WCI G189020
11WCI G189020-11
11WCI G189020-10
11WCI G189020-09
11WCI G189020-08
12218730603 Frigidaire Door Gasket
13WCI G187494-02
14RACK-REFR/FRZR (3)
15WCI 5317828702
16SUPPORT RH (4)
17SNUGGER-SHELF (2) (NON-ILLUSTRATED)
18DAIRY DOOR-SMALL
19WCI 5303270562
20WCI 5303270563
21DISPENSER-JUICE CAN
22RACK-FRZR UPPER
23PANEL-FREEZER INNER DOOR
23A5304455651 Frigidaire Refrigerator Screw
24WCI 5303001399
25WCI 5316850501
26WCI 5316850601
27WCI 5308011745
