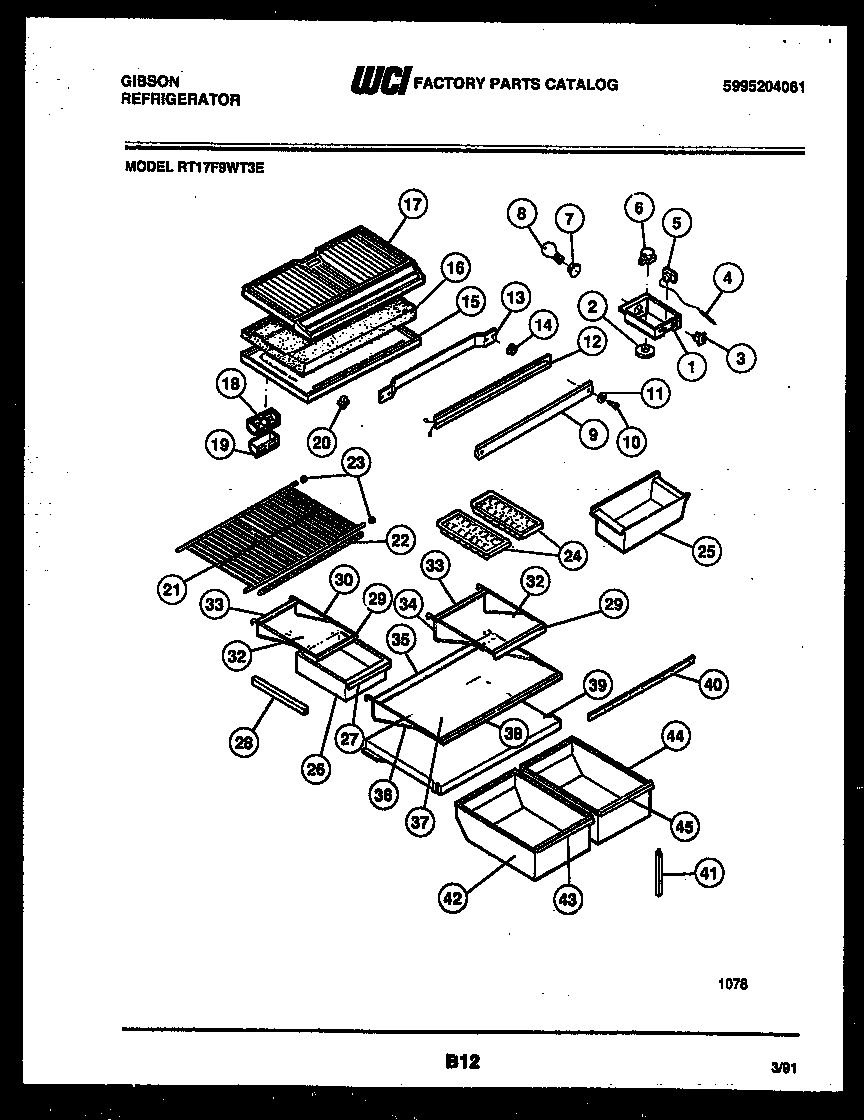

RT17F9WT3E 04 – SHELVES AND SUPPORTS

RT17F9WT3E 04 – SHELVES AND SUPPORTS

Written by

in

RT17F9WT3E 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*36913LOCK-SHELF TRIM, REAR
1WCI 5317672203
1AWCI 5303270583
1B5304455650 Frigidaire Refrigerator Screw
2WCI 5308010011
3SWITCH-ENERGY SAVER, SLIDE TYPE
4TUBE
5WCI 5303200810
5AWCI 5303001260
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
6A5304455649 Frigidaire Refrigerator Screw
7SOCKET-LIGHT/LAMP
8316538904 Frigidaire Oven Lamp Light
9WCI 5303916134
9WCI 3916133
9WCI 3916135
9WCI 3916132
9WCI 5303200465
10WCI 5308012258
11WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
12WCI 5308017408
13WCI 5308003604
14SPACER-MULLION MTG, STEEL
15BBUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
15AWCI 5303001380
15TOP PANEL-REFR, W/ SNAP BUSHING
16AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
16WCI 5308009750
17WCI 5303001537
18DEFLECTOR-AIR
19COVER – AIR DEFLECTOR
205309918806 Frigidaire Refrigerator Light Switch Door
21WCI 5303211199
22WCI 5303211200
23END CAP-SHELF,PROTECTOR
24215667501 Frigidaire Refrigerator Ice Tray Primary
25WCI G163022-03
26WCI G176918-12
27WCI G177343-10
28BWCI 08014528
28AHANGER-PAN RH (NON-ILLUSTRATED)
28HANGER-PAN LH
29ARETAINER-GLASS, (3) (NON-ILLUSTRATED)
29WCI 5303209133
30WCI 5303211198
32WCI 5303211197
33WCI 5303211195
34WCI 5303211196
35WCI 5303211192
36FRAME-FULL SHELF
37GLASS-FULL SHELF
38WCI 5303209119
38AWCI 5303209274
39COVER-CRISPER PAN
40GASKET-COVER
41SUPPORT-CRISPER CVR, ADJUSTABLE
42WCI 5349001549
43TRIM
44PAN-CRISPER-RH
45TRIM-PAN-RH
