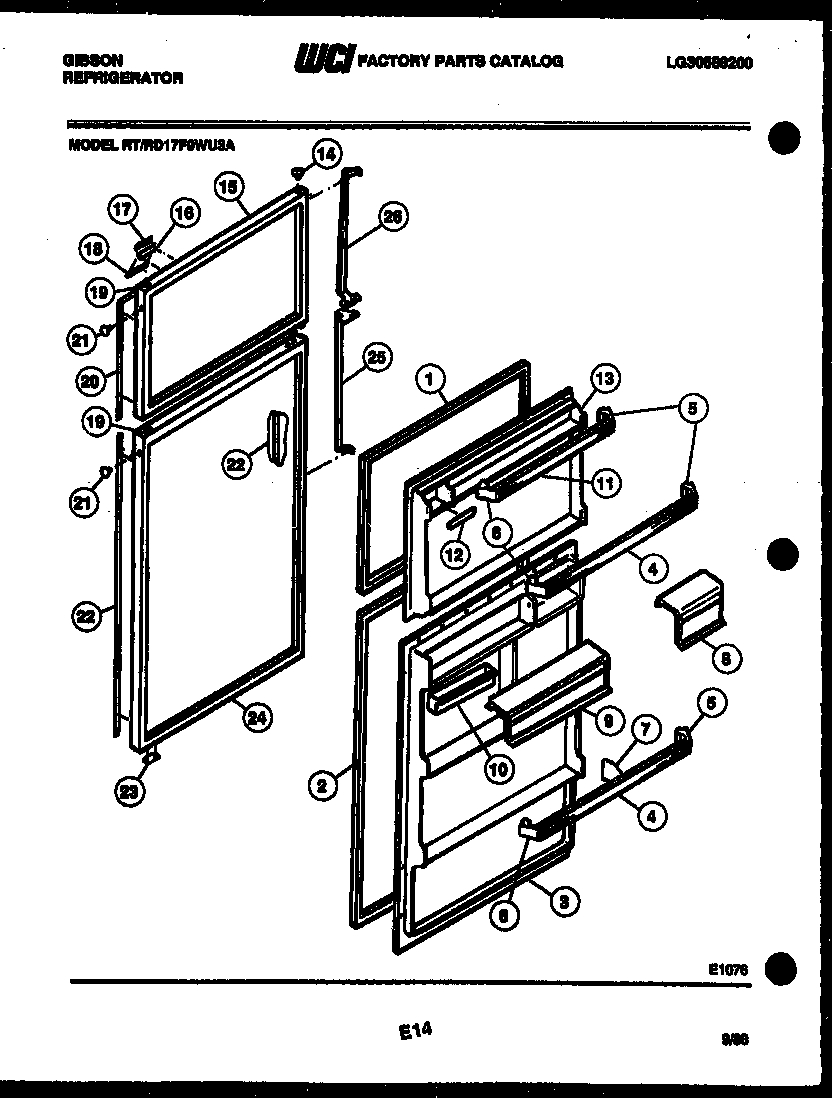

RT17F9WU3A 02 – DOOR PARTS

Products

Position	Product
*81780	WCI G89643
1	GASKET-FREEZER
2	218730603 Frigidaire Door Gasket
3	WCI G187494-02
4	RACK-REFR/FRZR (3)
5	SUPPORT, RACK, RH, (PC) (2)
6	SUPPORT, RACK, LH (PC) (2)
7	SNUGGER-SHELF (2) (NON-ILLUSTRATED)
8	DOOR-DAIRY RS
9	DOOR, DAIRY (2)
10	TRAY, UTILITY
11	RACK-FRZR UPPER
12	RACK, JUICE CAN
13A	5304455651 Frigidaire Refrigerator Screw
13	PANEL INTERIOR DOOR
14	WCI G169332-09
14	WCI G169332-10
14	WCI G169332-11
14	WCI G169332-01
14	WCI G169332-08
15	WCI G189018-11
15	WCI G189018-10
15	WCI G189018-08
15	WCI G189018-09
15	WCI G189018
16A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
16	NAMEPLATE
17	LABEL, UPPER
18	LABEL-LOWER
19	BEARING, HINGE (3)
20	WCI G167404-01
21	WCI G162977-11
21	WCI G162977-08
21	240494001 Frigidaire Refrigerator Plug Button
21	WCI G162977-10
21	WCI G162977-09
22	TRIM (2)
23A	WCI G185566
23	STOP, DOOR. PC & FC (2)
24	WCI G189020-11
24	WCI G189020-10
24	WCI G189020-09
24	WCI G189020-08
24	WCI G189020
25	HANDLE ASSEMBLY
25A	HANDLE ASSEMBLY
