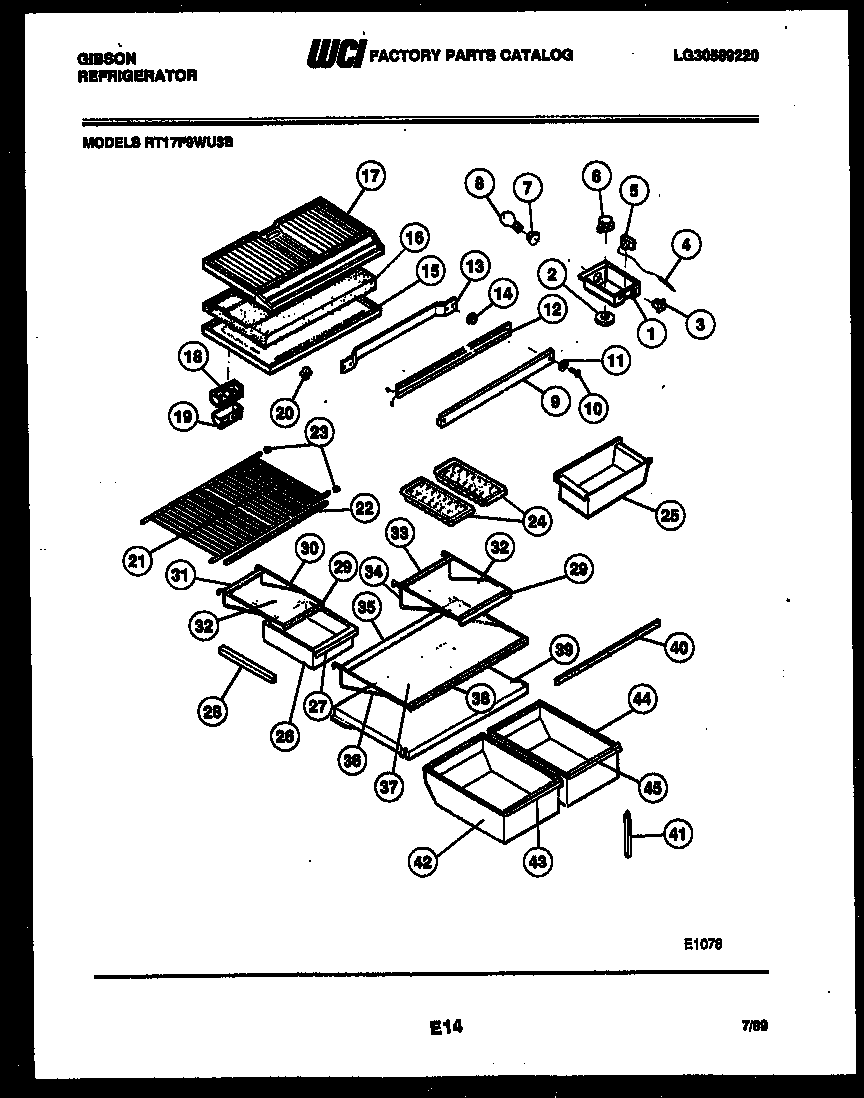

RT17F9WU3B 04 – SHELVES AND SUPPORTSadmin2025-04-26T10:18:07+00:00RT17F9WU3B 04 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| 1A | WCI G188379-02 |
| 1 | WCI G176722-03 |
| 1B | 5304455650 Frigidaire Refrigerator Screw |
| 2 | KNOB |
| 3 | WCI G178402-02 |
| 4 | TUBE |
| 5A | WCI G107080 |
| 5 | WCI 3200810 |
| 6 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 6A | 5304455649 Frigidaire Refrigerator Screw |
| 7 | SOCKET LIGHT |
| 8 | 316538904 Frigidaire Oven Lamp Light |
| 9 | WCI 3916133 |
| 9 | WCI 3916135 |
| 9 | WCI 3916134 |
| 9 | WCI 3200465 |
| 9 | WCI 3916132 |
| 10 | SCREW, BRACKET MOUNTING (4) |
| 11 | WASHER (2) |
| 12 | HTR, CENTER RAIL |
| 13 | CLAMP, MULLION MOUNTING |
| 14 | SPACER (NON-ILLUSTRATED) |
| 15 | TOP-REFRIGERATOR |
| 15A | SCREW (5) |
| 16 | DIVIDER, CENTER |
| 16A | HARNESS, WIRING |
| 17 | BOTTOM, FC |
| 17A | PAD, FOAM (2) |
| 18 | DEFLECTOR AIR |
| 19 | WCI G162178 |
| 20 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 21 | WCI G177059-10 |
| 22 | TRIM - SHELF |
| 23 | END CAP-SHELF,PROTECTOR |
| 24 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 25 | WCI G163022-03 |
| 26 | WCI G176918-12 |
| 27 | WCI G177343-10 |
| 28B | SCREW-HANGER (2) (NON-ILLUSTRATED) |
| 28A | HANGAR, RIGHT SIDE |
| 28 | HANGAR, LEFT SIDE |
| 29 | WCI G172410-18 |
| 30 | WCI G187218-07 |
| 31 | TRIM, SHELF, REAR (MEAT KEEPER) |
| 32 | WCI G171654-55 |
| 33 | TRIM, SHELF, REAR (3) (REGULAR) |
| 34 | WCI G171608-18 |
| 35 | WCI G172436-17 |
| 36 | WCI G171608-19 |
| 37 | WCI G171654-56 |
| 38 | WCI G172410-10 |
| 39 | COVER-CRISPER |
| 40 | GASKET, COVER |
| 41 | SUPPORT, CRISPER COVER |
| 42 | PAN-CRISPER-LS |
| 43 | TRIM |
| 44 | PAN-CRISPER-RH |
| 45 | TRIM-PAN-RH |
