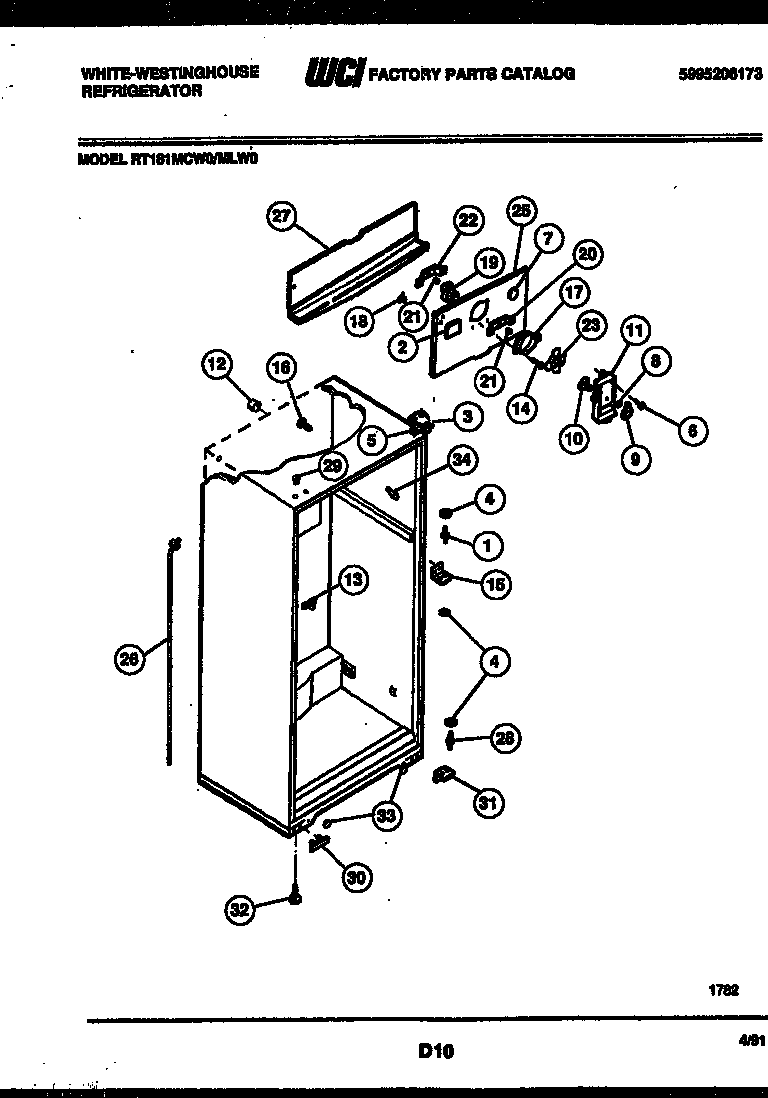

RT181MCW0 03 – CABINET PARTSadmin2025-04-26T10:17:30+00:00RT181MCW0 03 – CABINET PARTS
Products
| Position | Product |
|---|
| *43692 | PLUG, BUTTON, CABINET LINER (NI) |
| *43692 | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| 1 | WCI 5308000184 |
| 2 | BUTTON - DECORATIVE PLUG |
| 3 | WCI 3206100 |
| 4 | WCI 530800186 |
| 5 | SHIM - UPPER HINGE |
| 7 | 5303208309 Frigidaire Refrigerator Plug Hole |
| 8 | Nut,push-on |
| 9 | WCI 5308000081 |
| 10 | WCI 3206110 |
| 11 | FAN COVER |
| 12 | TUBE-RUBBER |
| 13A | WCI 5303001361 |
| 13 | WCI 5308000056 |
| 15A | SCREW - MULLION (2) |
| 15 | BRACKET-CTR HINGE |
| 16 | SUPPORT-COIL COVER |
| 17 | RING-FAN ORIFICE |
| 18 | WCI 5308000107 |
| 18A | 5304455651 Frigidaire Refrigerator Screw |
| 19 | 5300158289 Frigidaire Evaporator Fan Motor |
| 20 | WCI 5303205118 |
| 21 | G187559 Frigidaire Refrigerator Bushing |
| 22 | BRACKET-MOTOR MTG, REAR |
| 23 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 25A | 5304455650 Frigidaire Refrigerator Screw |
| 25B | NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED) |
| 25 | WCI 3206451 |
| 26 | WCI 5303269702 |
| 27 | TROUGH-DRAIN |
| 28 | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 29 | PLUG-BUTTON, WHITE |
| 30 | WCI 3206135 |
| 31 | WCI 3206136 |
| 31A | 241710601 Frigidaire Refrigerator Screw |
| 32 | SCREW-LEVELING, (2) |
| 33 | PLUG-BUTTON |
| 34 | TRIM-CABINET CORNER, WHITE |
