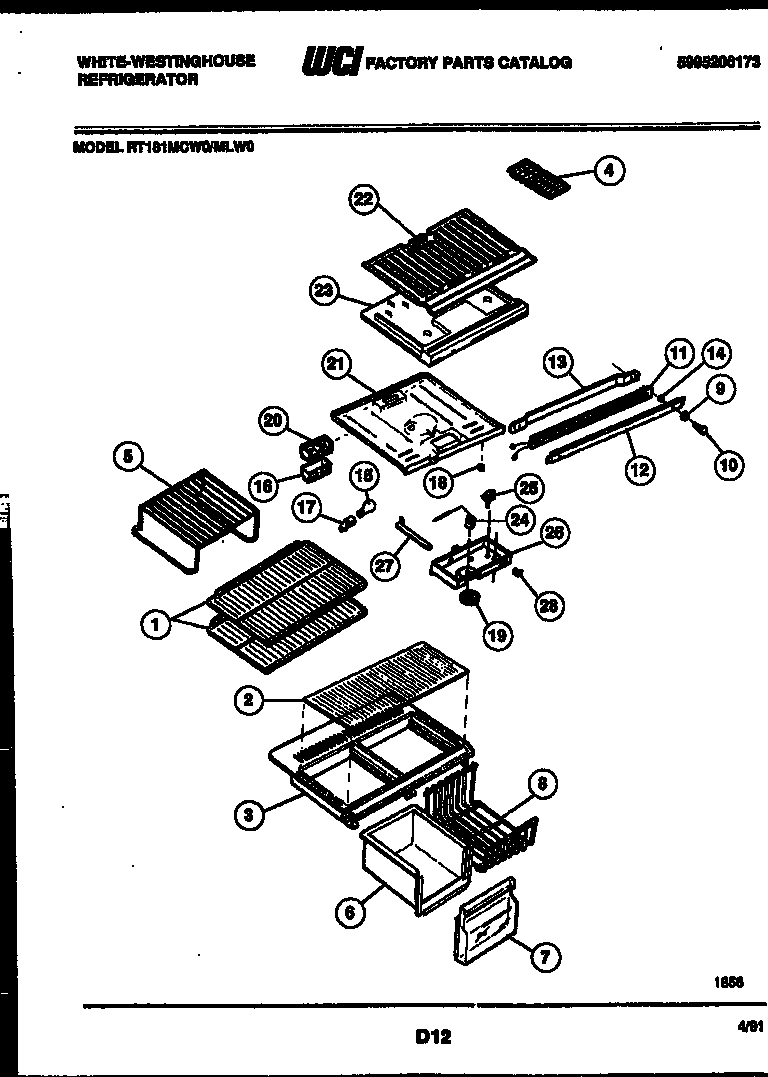

RT181MLD0 04 – SHELVES AND SUPPORTS

RT181MLD0 04 – SHELVES AND SUPPORTS

Written by

in

RT181MLD0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303207457
2WCI 5303207339
3WCI 5303207340
4215667501 Frigidaire Refrigerator Ice Tray Primary
55303282284 Frigidaire Wire Shelf
63206438 Frigidaire Refrigerator Crisper Pan
7FRONT, CRISPER PAN
8WCI 5303207491
9WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
10SCREW – MULLION (2)
11WCI 3206445
12WCI 3206450
13WCI 5303206752
14WCI 5303206753
15316538904 Frigidaire Oven Lamp Light
16WCI 5303001448
17218906802 Frigidaire Light Lamp Socket
185309918806 Frigidaire Refrigerator Light Switch Door
19WCI 5303209251
20AEXTENSION, AIR DEFLECTOR, WITH INSULATION
20DEFLECTRO, AIR, W/SEAL
21AWCI 5303001380
21B3205266 Frigidaire Refrigerator Edge Protector
21WCI 3206454
21CWCI 3018900
22BOTTOM PANEL-FRZR
23WCI 3206456
24WCI 5303018894
24AWCI 5303001260
25215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25A5304455649 Frigidaire Refrigerator Screw
26A5304455650 Frigidaire Refrigerator Screw
26CONTROL BOX
27WCI 3018891
28WCI 5303207249
