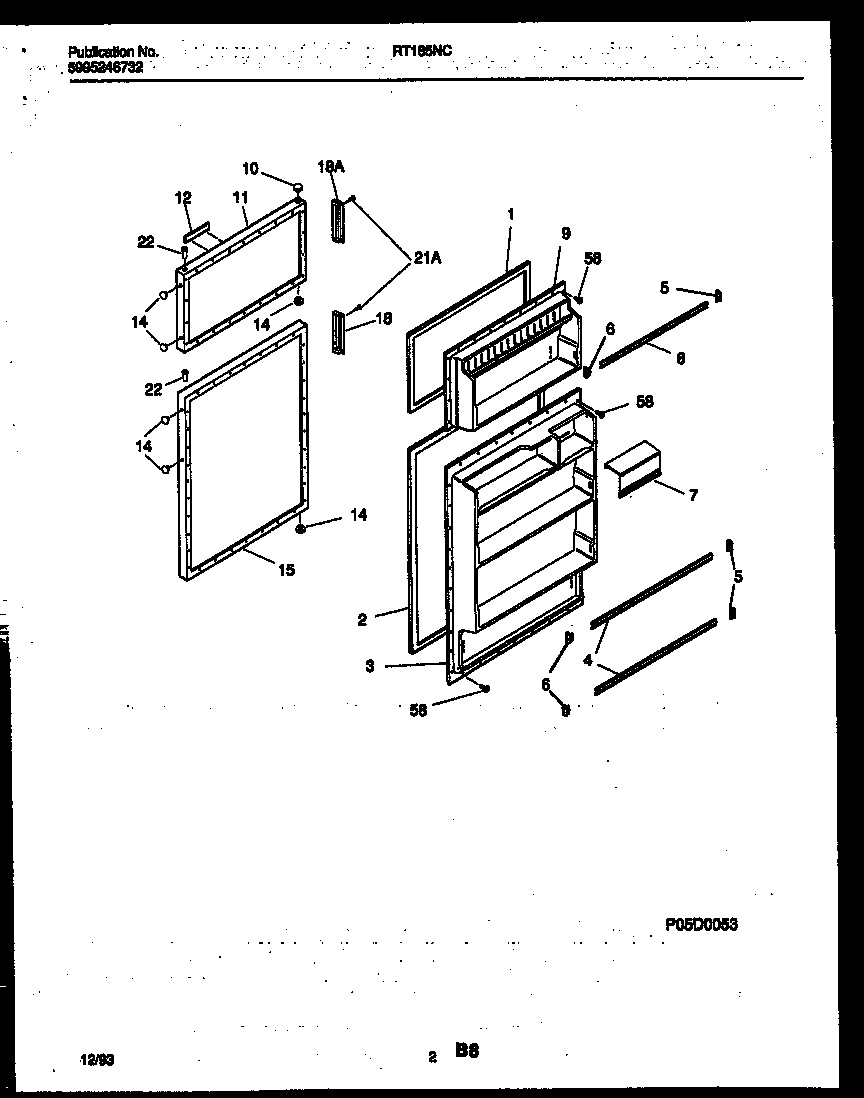

RT185NCW2 02 – DOOR PARTS

RT185NCW2 02 – DOOR PARTS

Written by

in

RT185NCW2 02 – DOOR PARTS

Products

PositionProduct
*86144INSULATION
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 5303207346
4RACK, DOOR
5SUPPORT – DOOR RACK, RH
6SUPPORT – DOOR RACK, LH
7WCI 5303207233
7AWCI 5303001380
8RACK, DOOR
9WCI 5303207343
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11PANEL-FRZR DOOR, WHITE, W/ INSULATION
12ATAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12WCI 3206159
14240494001 Frigidaire Refrigerator Plug Button
15PANEL-REFR DOOR, WHITE, W/ INSULATION
18HANDLE-DOOR
18AHANDLE-DOOR
21AWCI 5308011745
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
