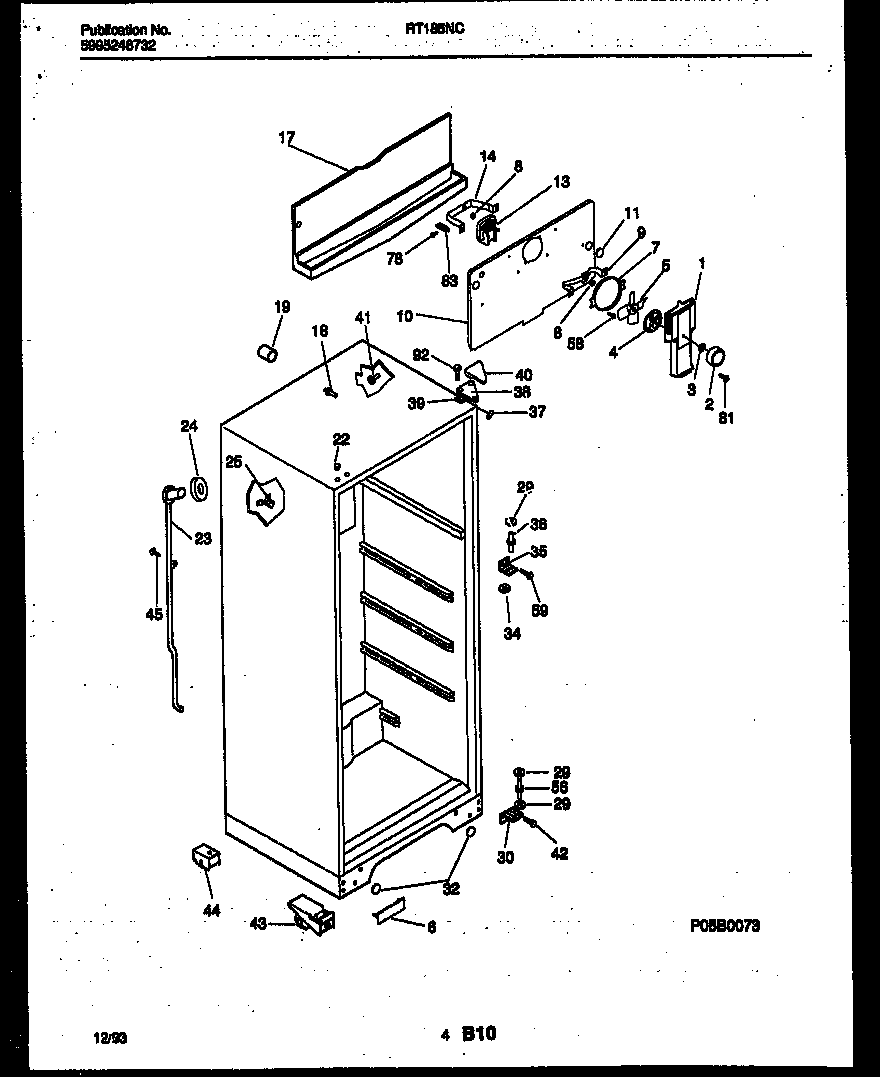

RT185NCW2 03 – CABINET PARTS

Written by

Products

Position	Product
*86150	PLUG, BUTTON, CABINET LINER (NI)
1	FAN COVER
2	WCI 3206109
3	Nut,push-on
4	WCI 3206110
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 215846500
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 3206451
11	5303208309 Frigidaire Refrigerator Plug Hole
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	TROUGH-DRAIN
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
22A	5304500008 Frigidaire Oven Screw
22	215774901 Frigidaire Refrigerator Button Plug
23A	WCI 5303001361
23	WCI 5303269702
24	WCI 5303207353
25	WCI 5308000056
29	WASHER, .34 X .62 X .05, NYLON
30A	TAPPING PLATE, LOWER HINGE, (2) (NI)
30	WCI 3206136
32	WCI 215217702
34	WCI 5308000186
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	TRIM-CABINET CORNER, WHITE
38	WCI 3206100
39	SHIM – UPPER HINGE
40	WCI 3206101
41	5308000039 Frigidaire Refrigerator Screw
42	241710601 Frigidaire Refrigerator Screw
43A	WCI 5308009760
43C	WCI 5308009790
43D	WCI 5308011326
43	WCI 5300188673
43B	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
44	ROLLER ASSY, METAL HOUSING, REAR, (2)
45	5304455651 Frigidaire Refrigerator Screw
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	WCI 5308012258
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
