RT185NCW2 04 – SHELVES AND SUPPORTS

RT185NCW2 04 – SHELVES AND SUPPORTS

Written by

in

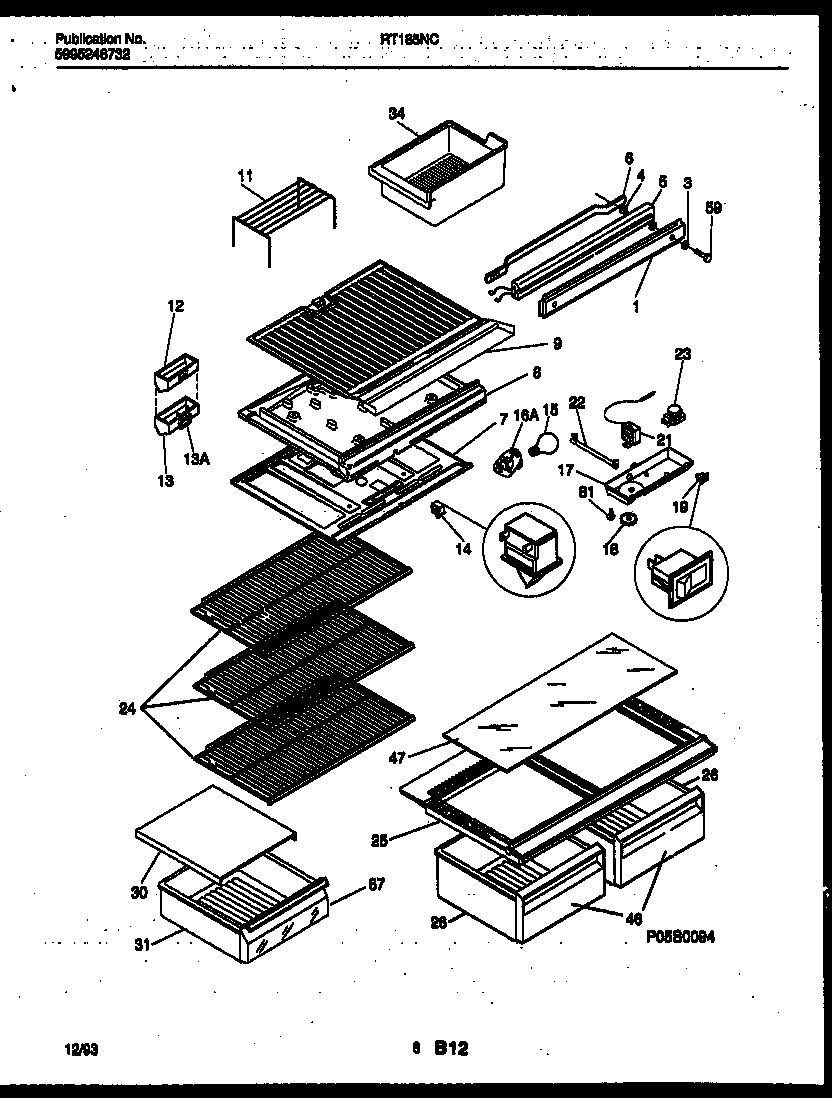

RT185NCW2 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206446
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4WCI 215882100
5WCI 3206445
6WCI 215170802
7WCI 3206454
7AWCI 5303001380
8A3205266 Frigidaire Refrigerator Edge Protector
8BWCI 3018900
8WCI 3206456
9BOTTOM PANEL-FRZR
115303282284 Frigidaire Wire Shelf
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 3206130
17ANUT, ANCHOR (NI)
18WCI 5303209251
19WCI 3206129
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24SHELF, SLIDING, FULL WIDTH, WIRE, REFR SECTION
25WCI 5303207340
263206438 Frigidaire Refrigerator Crisper Pan
30WCI 5303207338
31MEAT PAN
345303212918 Frigidaire Refrigerator Cont
46WCI 5303281475
47INSERT-PAN COVER, GLASS
59WCI 5308012258
67WCI 5303281738
815304455650 Frigidaire Refrigerator Screw
