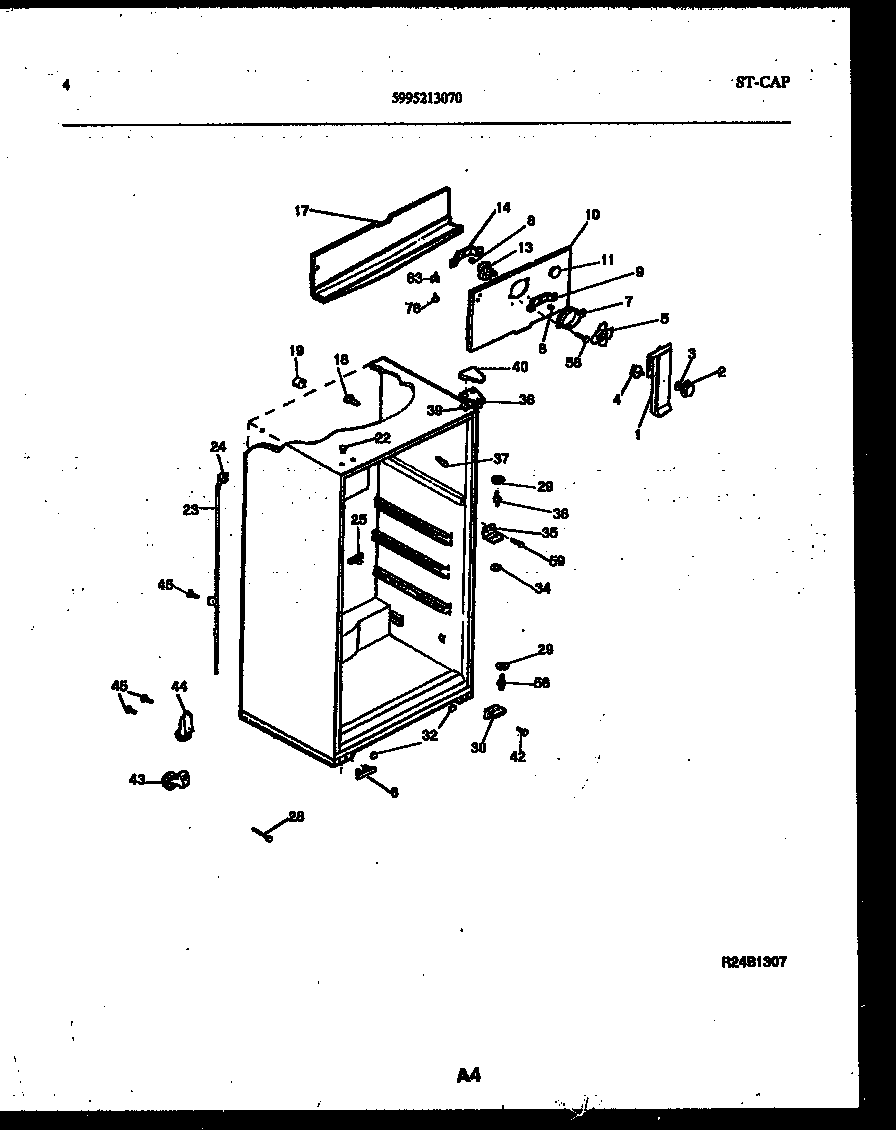

RT185NLD0 03 – CABINET PARTS

RT185NLD0 03 – CABINET PARTS

Written by

in

RT185NLD0 03 – CABINET PARTS

Products

PositionProduct
1FAN COVER
1A5304455650 Frigidaire Refrigerator Screw
2WCI 3206109
3Nut,push-on
4WCI 3206110
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 3206135
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10WCI 3206451
115303208309 Frigidaire Refrigerator Plug Hole
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17TROUGH-DRAIN
18SUPPORT-COIL COVER
19TUBE-RUBBER
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23WCI 5303269702
24WCI 5303207353
25WCI 5308000056
25AWCI 5303001361
28BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
29WASHER, .34 X .62 X .05, NYLON
30WCI 3206136
32PLUG-BUTTON
34WCI 5308000186
35BRACKET-CTR HINGE
36WCI 5308000184
37TRIM-CABINET CORNER, ALMOND
38WCI 3206100
38BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38A241710601 Frigidaire Refrigerator Screw
