RT185NLD0 05 – SHELVES AND SUPPORTS

RT185NLD0 05 – SHELVES AND SUPPORTS

Written by

in

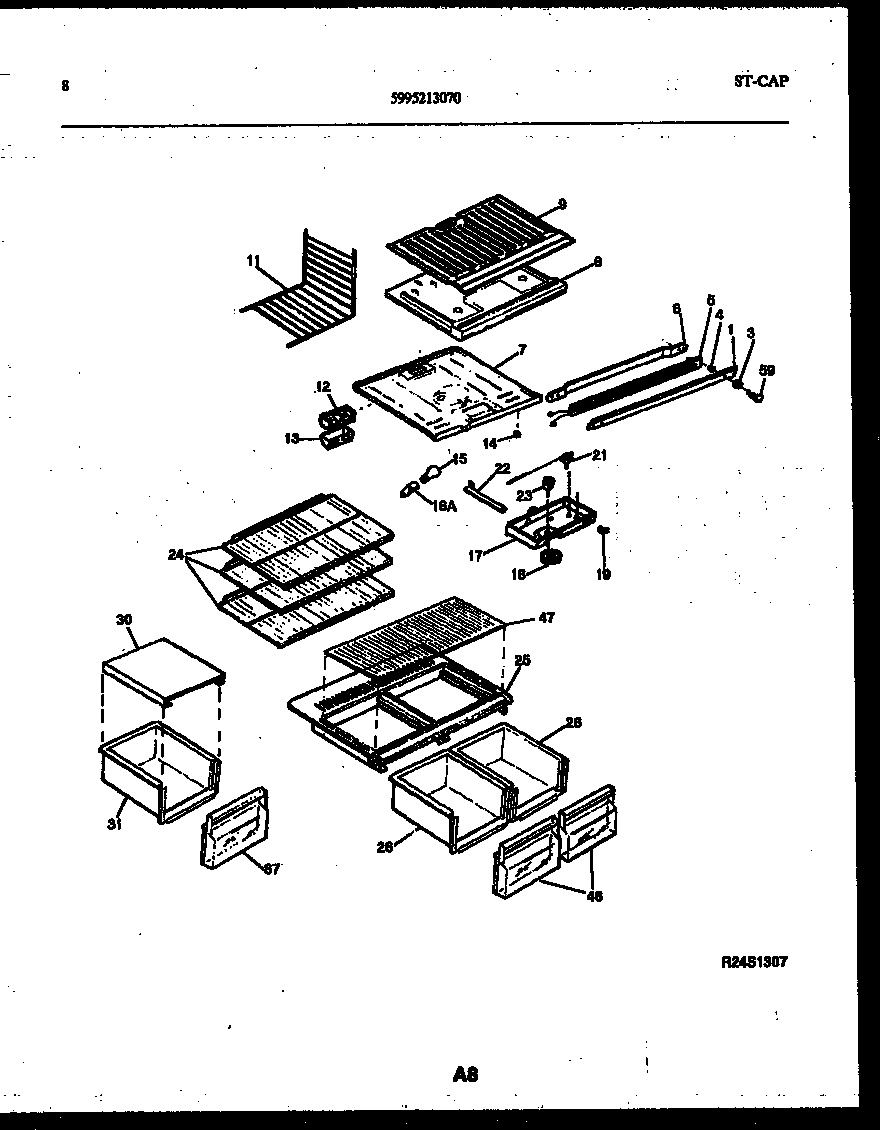

RT185NLD0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206450
3WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
4WCI 5303206753
5WCI 3206445
6WCI 5303206752
7WCI 3206454
7AWCI 5303001380
8AWCI 3018900
8WCI 3206456
9A3205266 Frigidaire Refrigerator Edge Protector
9BOTTOM PANEL-FRZR
11BSUPPORT-SHELF (2)
11CSCREW (2)
11AHANGER-SHELF (NON-ILLUSTRATED)
11SHELF-ICEMAKER
12BEXTENSION, AIR DEFLECTOR, WITH INSULATION
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17A5304455650 Frigidaire Refrigerator Screw
17WCI 3206130
18WCI 5303209251
19WCI 3206129
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
