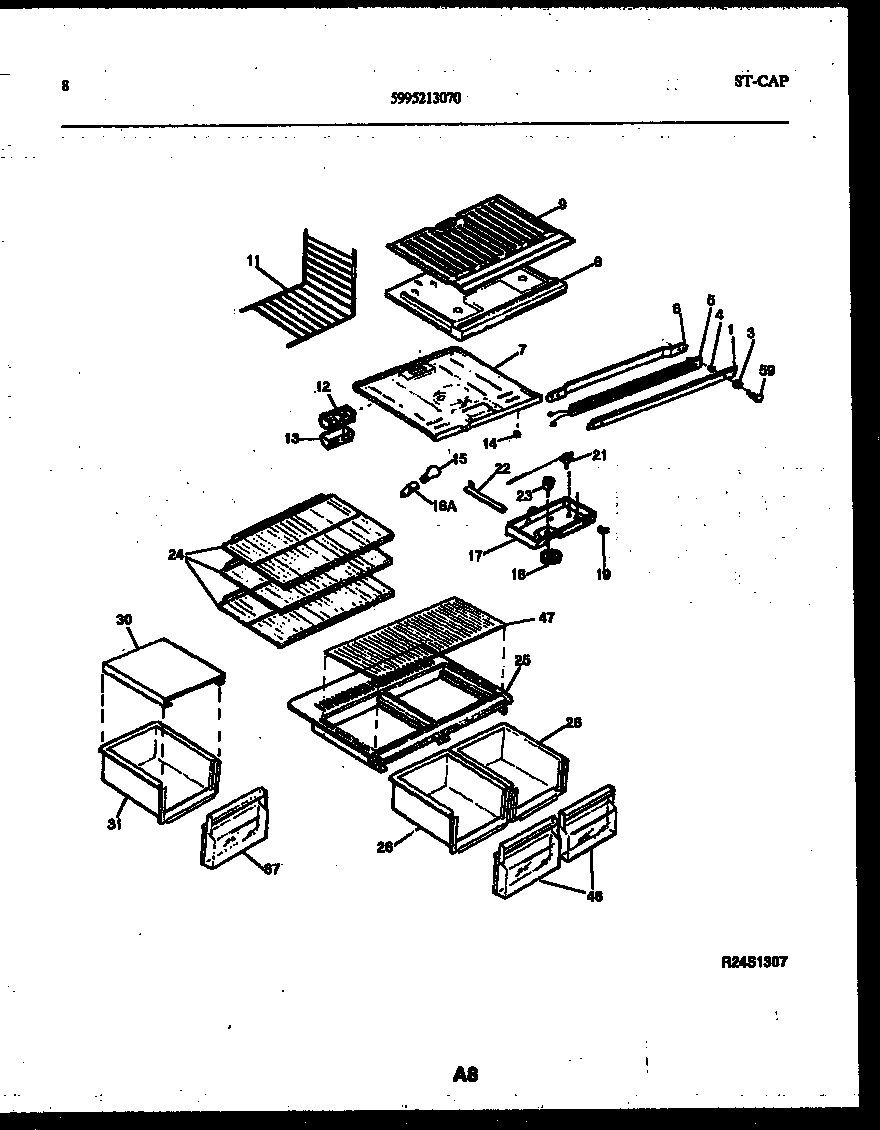

RT185NLW0 05 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 3206446
3	WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
4	WCI 5303206753
5	WCI 3206445
6	WCI 5303206752
7	WCI 3206454
7A	WCI 5303001380
8A	WCI 3018900
8	WCI 3206456
9A	3205266 Frigidaire Refrigerator Edge Protector
9	BOTTOM PANEL-FRZR
11B	SUPPORT-SHELF (2)
11C	SCREW (2)
11A	HANGER-SHELF (NON-ILLUSTRATED)
11	SHELF-ICEMAKER
12B	EXTENSION, AIR DEFLECTOR, WITH INSULATION
12	DEFLECTRO, AIR, W/SEAL
12A	5303001449 Frigidaire Refrigerator Seal
13	WCI 5303001448
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16A	218906802 Frigidaire Light Lamp Socket
17A	5304455650 Frigidaire Refrigerator Screw
17	WCI 3206130
18	WCI 5303209251
19	WCI 3206129
21	WCI 5303018894
21A	WCI 5303001260
22	WCI 3018891
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A	5304455649 Frigidaire Refrigerator Screw
