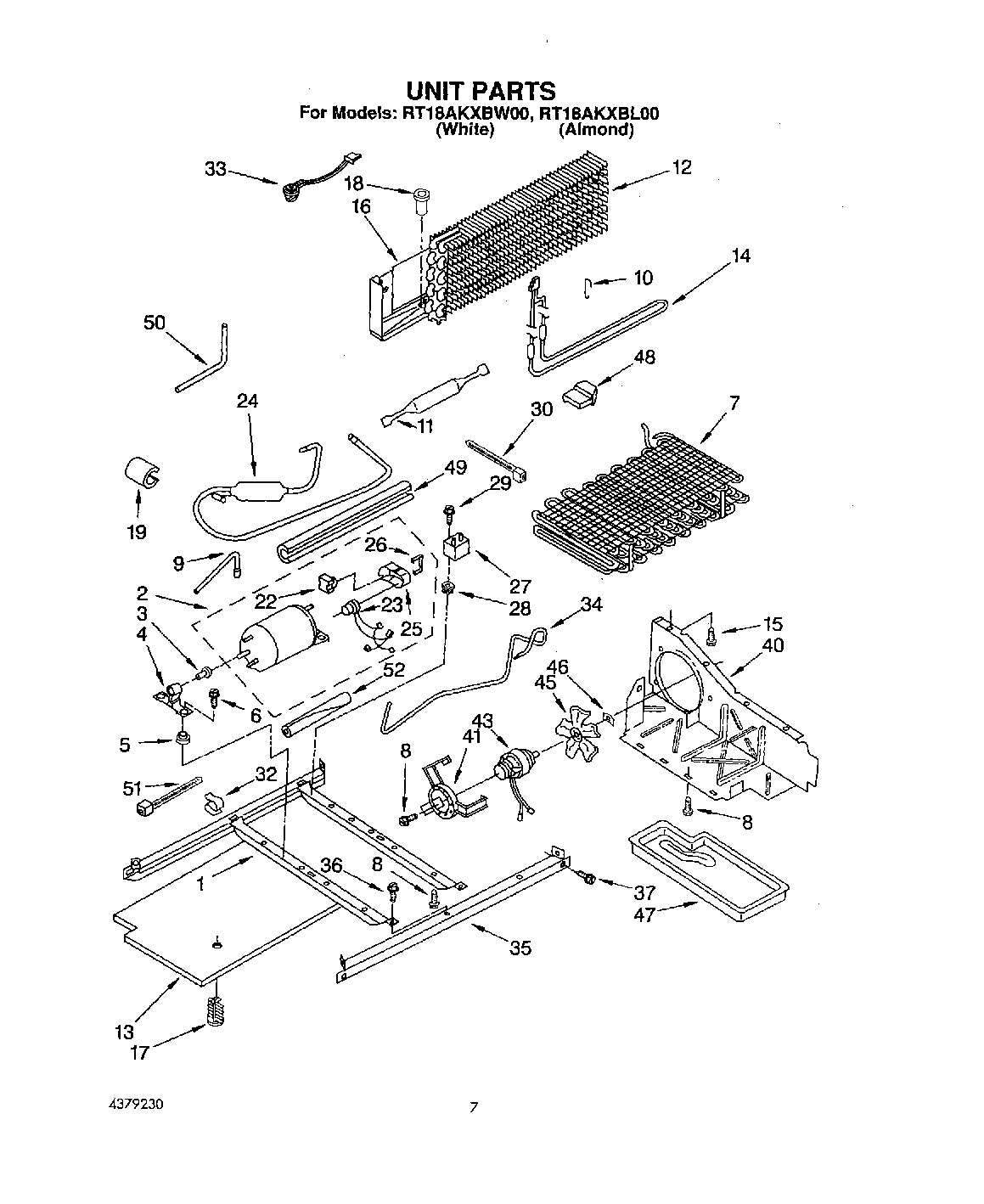

RT18AKXBL00 06 – UNIT

Products

Position	Product
1	Unit, Frame
2	Compressor KIt Includes Items 22 (23, 25, 26 & 27)
3	Grommet, Compressor Bracket
4	Bracket, Mounting
5	Grommet, Compressor (4)
6	Screw (4)
7	Condenser Assembly
8	WP489464 Whirlpool Refrigerator Screw
9	Tube, Process
10	Support, Heater
11	W10843121 Whirlpool Refrigerator Tube
12	Evaporator
13	Cover, Unit Bottom
14	Heater, Defrost
15	WP489478 Whirlpool Refrigerator Screw
16	Drain Pan & Heat Shield
17	489396 Whirlpool Refrigerator Clip
18	Drain Fitting
19	WP2158826 Whirlpool Refrigerator Dampener
22	Relay (See Overload)
23	Overload (Service (Includes Relay))
23	Overload (Production (Includes Relay))
24	Muffler
25	Terminal Cover (Service)
26	Strap, Cover
27	WPW10662129 Whirlpool Refrigerator Run Capacitor
28	Screw Grommet
29	W11693756 Whirlpool Screw Assembly
30	WPW10339879 Whirlpool Wire Tie
32	Clip, Wire (2)
33	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
34	Tube, Discharge
35	Unit, Rail
36	WP489427 Whirlpool Refrigerator Screw
37	489340 Whirlpool Refrigerator Screw
40	Air, Baffle
41	Fan, Mounting Bracket
43	833697 Whirlpool Condenser Fan Motor
45	Fan Blade
46	WP486692 Whirlpool Refrigerator Nut
47	Tray, Evaporator
48	Wedge, Air Baffle
49	WP2002171 Whirlpool Refrigerator Sleeve
50	Tube, Condenser To Heat Loop
52	876764 Whirlpool Refrigerator Primary Valve
52	978026 Whirlpool Refrigerator Primary Valve
52	978027 Whirlpool Refrigerator Primary Valve
52	978030 Whirlpool Refrigerator Valve
52	Sleeve
52	WP978025 Whirlpool Refrigerator Valve
52	VALVE, ACCESS (1/2“)
52	VALVE, ACCESS (5/8“)
