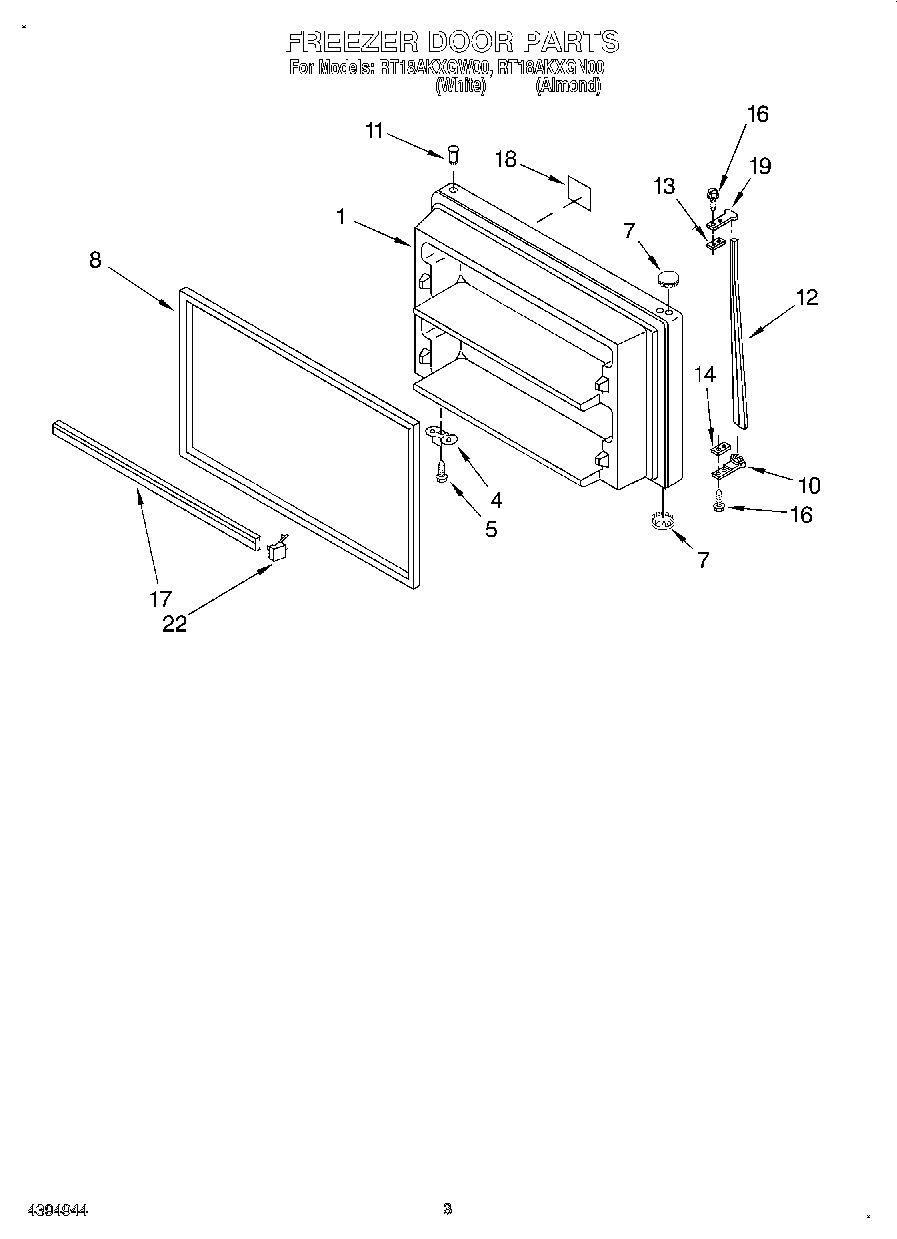

RT18AKXGW00 02 – FREEZER DOOR

RT18AKXGW00 02 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Illus. 4, 17 & 18) (White)
1Freezer Door (Includes No.22 & No.23) (Almond)
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
82159327 Whirlpool Refrigerator Door Gasket
10819342 Whirlpool Refrigerator Endcap Kit
11WP2183003 Whirlpool Thimble
12WP2162555 Whirlpool Refrigerator White Door Handle
12Handle, F.C. (Almond)
13Shim, Handle
14Spa
16WP488920 Whirlpool Refrigerator Screw
17Trim-Door (2)
18Nameplate (White)
18Nameplate (Almond)
22ENDCAP
100FeaturePak (Includes 7, 8, 12, 13, 14, 20) Also See Ref.& Frz. Dr. Pages
