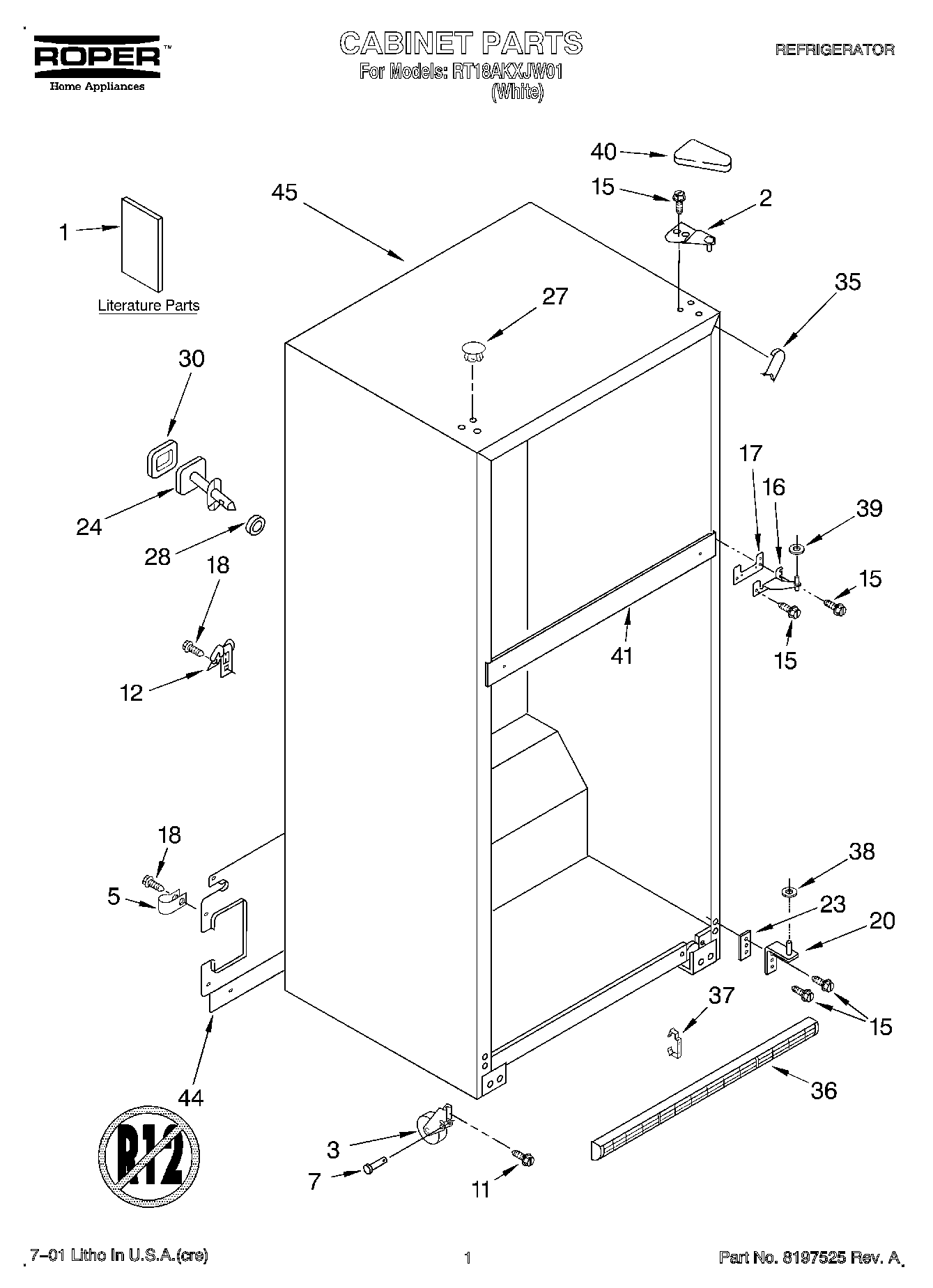

RT18AKXJW01 01 – CABINET, LITERATURE

Products

Position	Product
1	Energy Label
1	Literature Parts (Use & Care Guide)
1	Service & Wiring Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP488366 Whirlpool Refrigerator Clamp
7	W11594405 Whirlpool Axle
11	WP3400504 Whirlpool Refrigerator Screw
12	549193 Whirlpool Refrigerator Power Clamp
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
23	Shim, Bottom Hinge
24	Fitting, Water Tube (Not Serviced)
27	WP2151652 Whirlpool Refrigerator Button Plug
28	Seal, Front (Not Serviced)
30	Seal, Rear (Not Serviced)
35	WPW10283959 Whirlpool Refrigerator Filler
36	WP2254386 Whirlpool Refrigerator Grille
37	CLIP, GRILLE
38	WP487576 Whirlpool Washer
39	WP489467 Whirlpool Hinge Shim
40	WP2213360 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
44	WP2189475 Whirlpool Refrigerator Unit Cover
45	Cabinet (Not A Serviceable Part)
