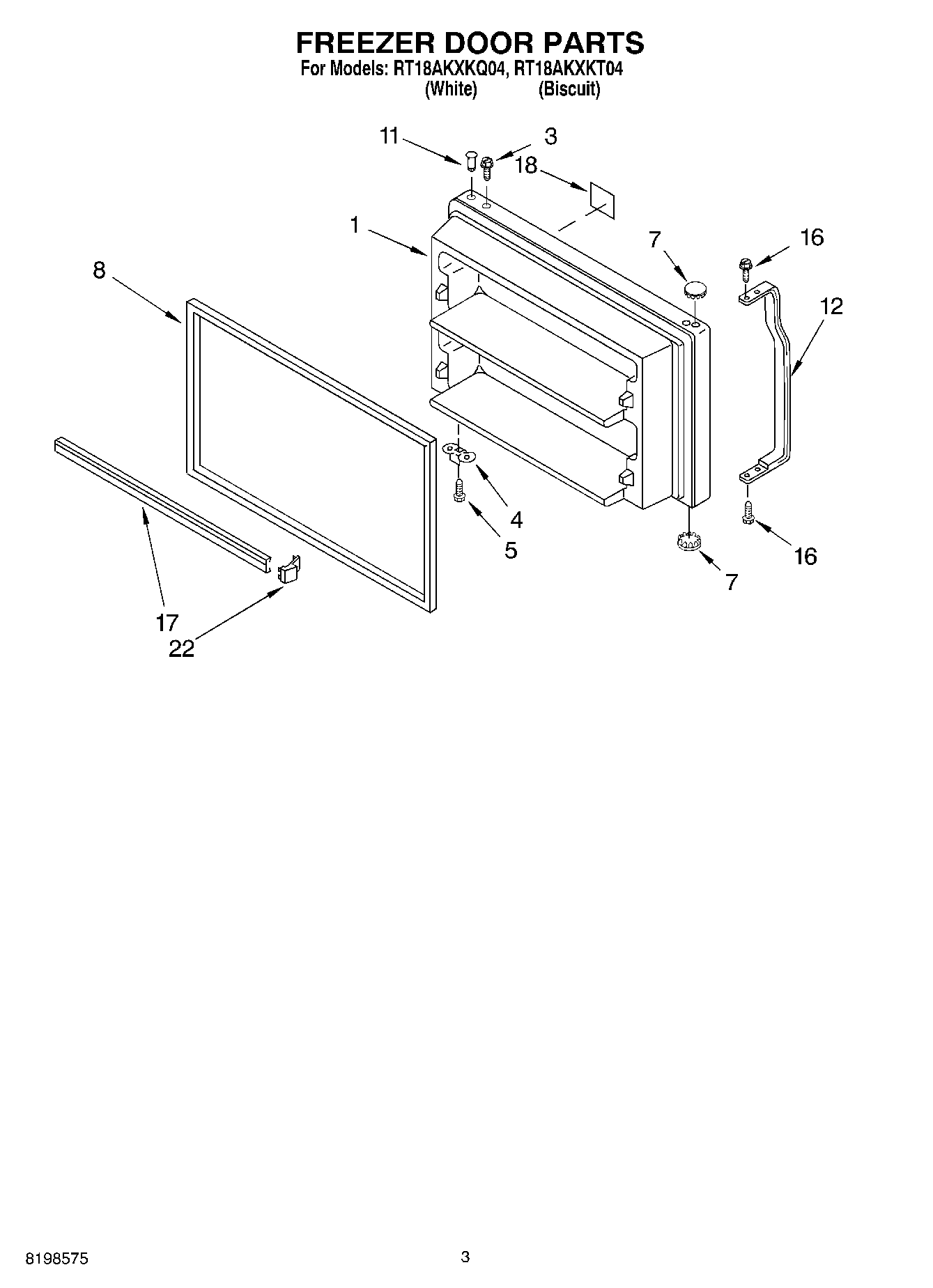

RT18AKXKQ04 02 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Illus. 4, 17 & 18) (White)
1	Freezer Door (Includes Illus. 4,17 & 18) (Biscuit)
3	WP8281206 Whirlpool Refrigerator Screw
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	WP2212649 Whirlpool Refrigerator Button Plug
8	2159327 Whirlpool Refrigerator Door Gasket
11	WP2183003 Whirlpool Thimble
12	Handle, F.C. (Biscuit)
12	WP2202806W Whirlpool Refrigerator Handle
16	WP489357 Whirlpool Recessed Screw
17	Trim-Door (2)
18	Nameplate (White)
18	Nameplate (Biscuit)
22	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
