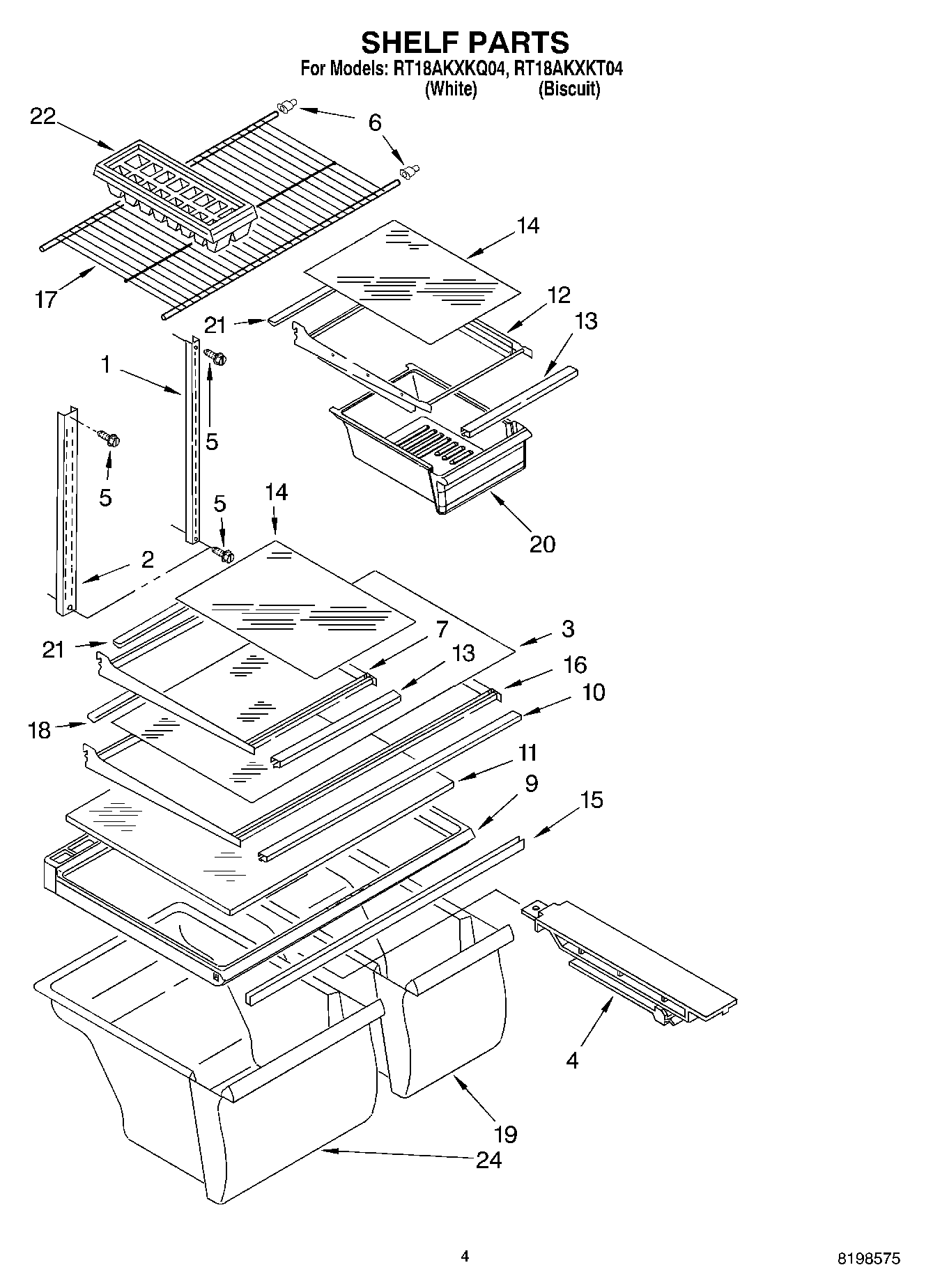

RT18AKXKQ04 03 – SHELF PARTSadmin2025-04-26T08:51:50+00:00RT18AKXKQ04 03 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | Shelf, Ladder (2) |
| 2 | Shelf, Ladder |
| 3 | Glass, Full Shelf |
| 4 | WP2163835 Whirlpool Track Assembly |
| 5 | WP489478 Whirlpool Refrigerator Screw |
| 6 | 2163762 Whirlpool Refrigerator Cup Assembly |
| 7 | Shelf, Cantilever |
| 9 | WP2314548 Whirlpool Refrigerator Cover |
| 10 | Trim, Shelf (Front) |
| 11 | WP2169921 Whirlpool Refrigerator Glass Shelf |
| 12 | Shelf, Cantilever Meat Pan |
| 13 | Trim, Shelf Front |
| 14 | Glass, Meat Cover |
| 15 | WP2172748 Whirlpool Drawer Support |
| 16 | Shelf Assembly, Cantilever (Includes No.3, No.10 and No.18) |
| 17 | Shelf, Freezer |
| 19 | W10856580 Whirlpool Crisper Pan |
| 20 | PAN-MEAT |
| 21 | WP2188689 Whirlpool Refrigerator Shelf Trim |
| 22 | WP841180A Whirlpool Microwave Glass Turntable Tray |
| 24 | W10854037 Whirlpool Refrigerator Crisper Pan |
