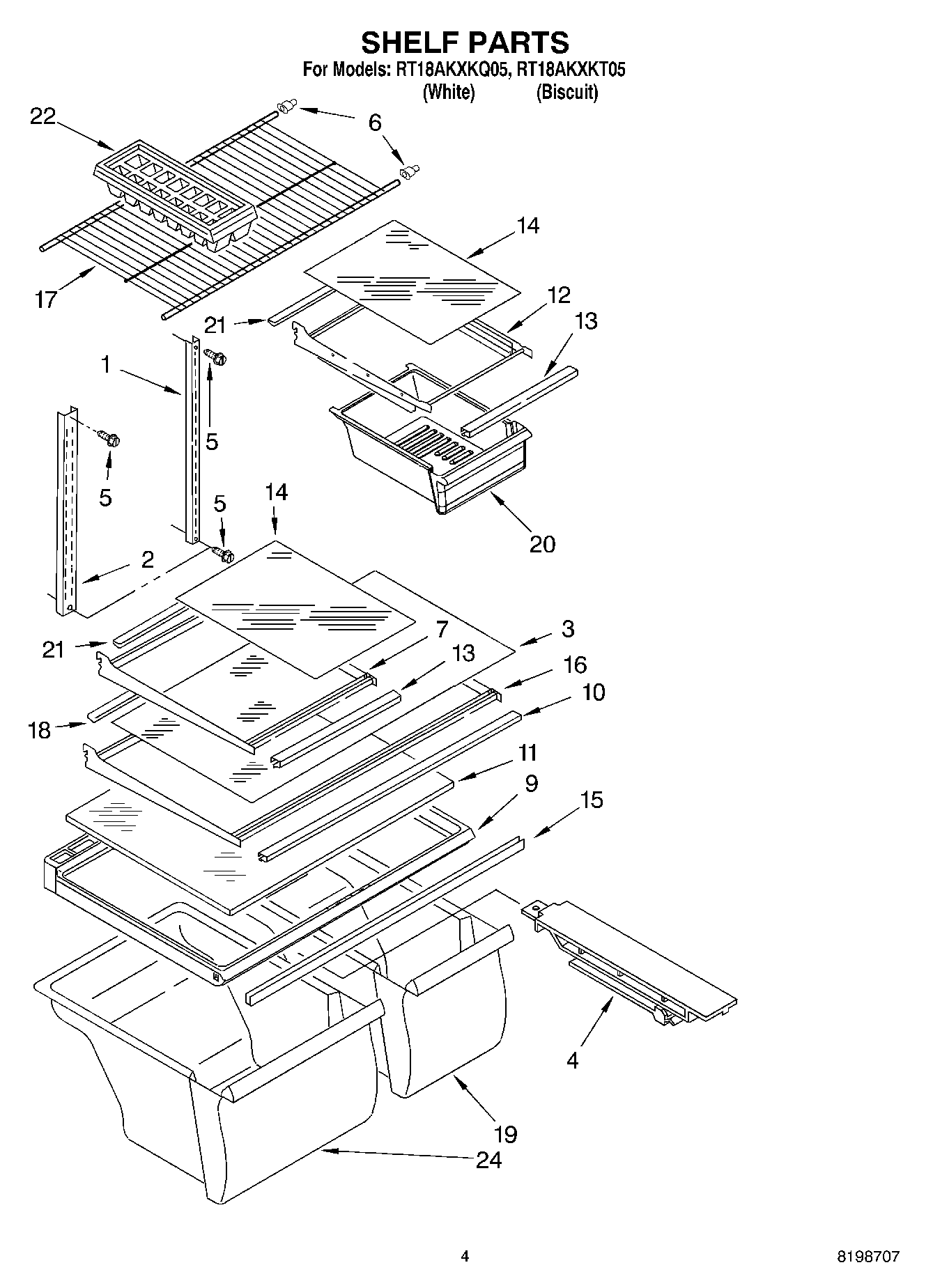

RT18AKXKQ05 03 – SHELF PARTS

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder
3Glass, Full Shelf
4WP2163835 Whirlpool Track Assembly
5WP489478 Whirlpool Refrigerator Screw
62163762 Whirlpool Refrigerator Cup Assembly
7Shelf, Catnilever
9WP2314548 Whirlpool Refrigerator Cover
10Trim, Shelf (Front)
11WP2169921 Whirlpool Refrigerator Glass Shelf
12Shelf, Cantilever Meat Pan
13Trim, Shelf Front
14Glass, Meat Cover
15WP2172748 Whirlpool Drawer Support
16Shelf Assembly, Cantilever (Includes No.3, No.10 and No.18)
17Shelf, Freezer
19W10856580 Whirlpool Crisper Pan
20PAN-MEAT
21WP2188689 Whirlpool Refrigerator Shelf Trim
22WP841180A Whirlpool Microwave Glass Turntable Tray
24W10854037 Whirlpool Refrigerator Crisper Pan
