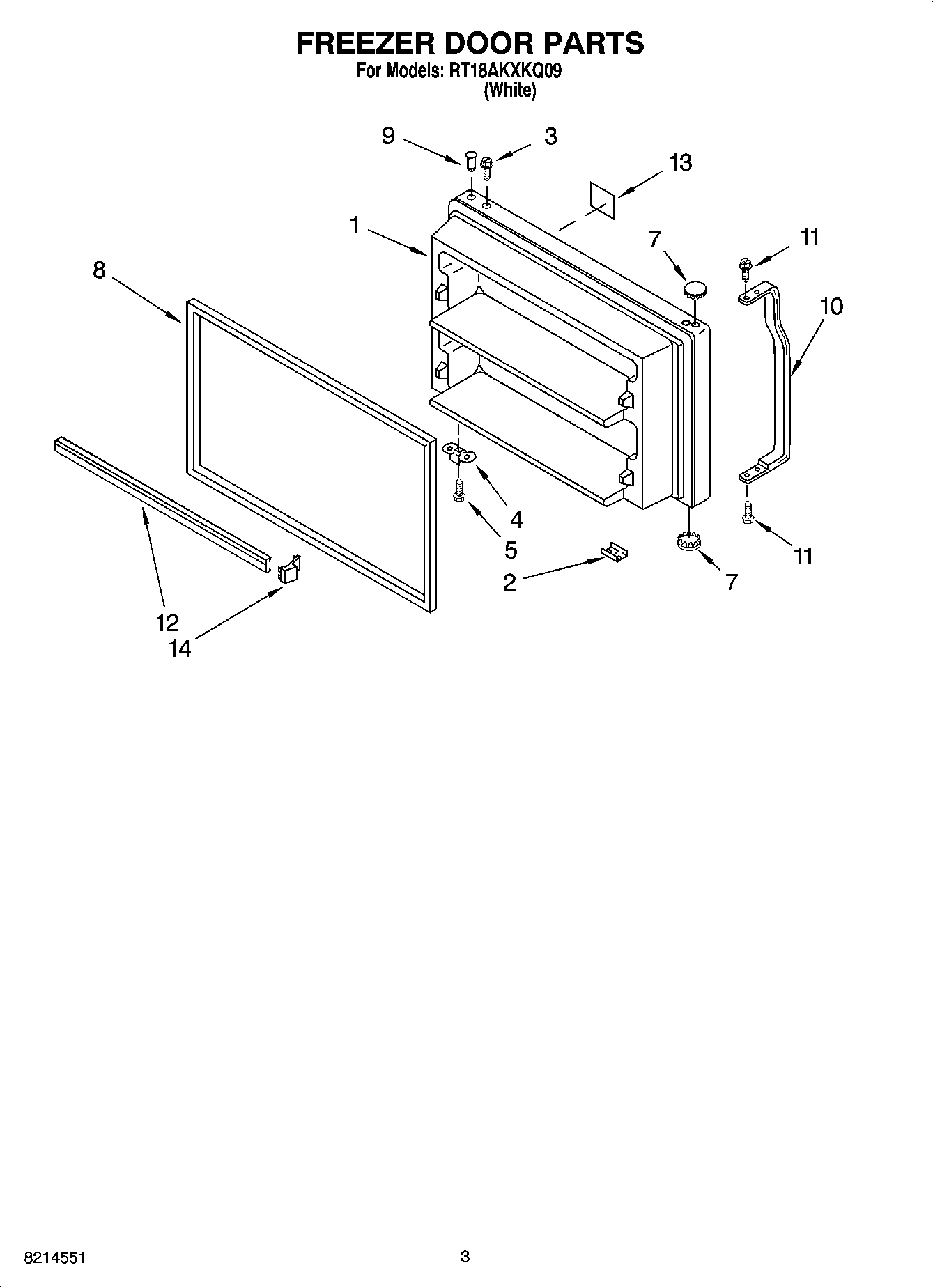

RT18AKXKQ09 02 – FREEZER DOOR PARTS

RT18AKXKQ09 02 – FREEZER DOOR PARTS

Written by

in

RT18AKXKQ09 02 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Illus. 4, 17 & 18) (White)
2W10833053 Whirlpool Refrigerator Plate
3WP8281206 Whirlpool Refrigerator Screw
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159327 Whirlpool Refrigerator Door Gasket
9WP2183003 Whirlpool Thimble
10WP2202806W Whirlpool Refrigerator Handle
11WP489357 Whirlpool Recessed Screw
12Trim-Door (2)
13Nameplate (White)
14WP2156003 Whirlpool Refrigerator Door Shelf End Cap
