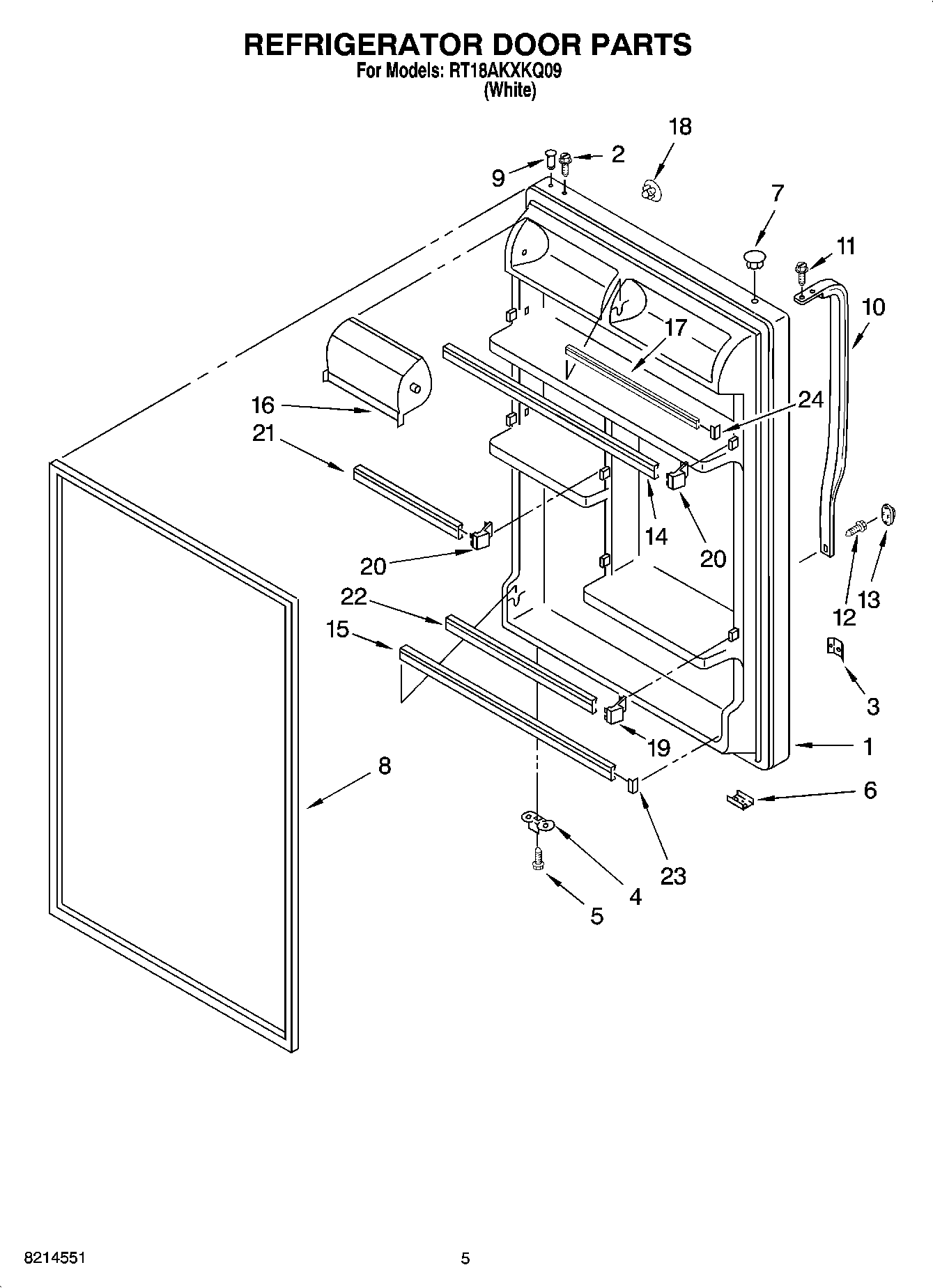

RT18AKXKQ09 04 – REFRIGERATOR DOOR PARTS

RT18AKXKQ09 04 – REFRIGERATOR DOOR PARTS

Written by

in

RT18AKXKQ09 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes No.9 & No.22) (White)
2WP8281206 Whirlpool Refrigerator Screw
3WP939101 Whirlpool Refrigerator Plate
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6W10833053 Whirlpool Refrigerator Plate
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159057 Whirlpool Refrigerator Fresh Food Door Gasket
9WP2183003 Whirlpool Thimble
10WP2202807W Whirlpool Handle Door
11WP489357 Whirlpool Recessed Screw
12WP8281146 Whirlpool Screw
13WP2202819W Whirlpool Refrigerator Cover
14Trim, Door Shelf
15WPW10421484 Whirlpool Refrigerator Door Trim
16WP2218113 Whirlpool Dairy Door
17TRIM-DOOR
18WP2189000 Whirlpool Refrigerator Handle Plug
19WP2195915 Whirlpool Door Shelf Support
20WP2156003 Whirlpool Refrigerator Door Shelf End Cap
21Trim, Door
22WP2195943 Whirlpool Shelf Retainer Bar
23WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
24ENDCAP-TRM
