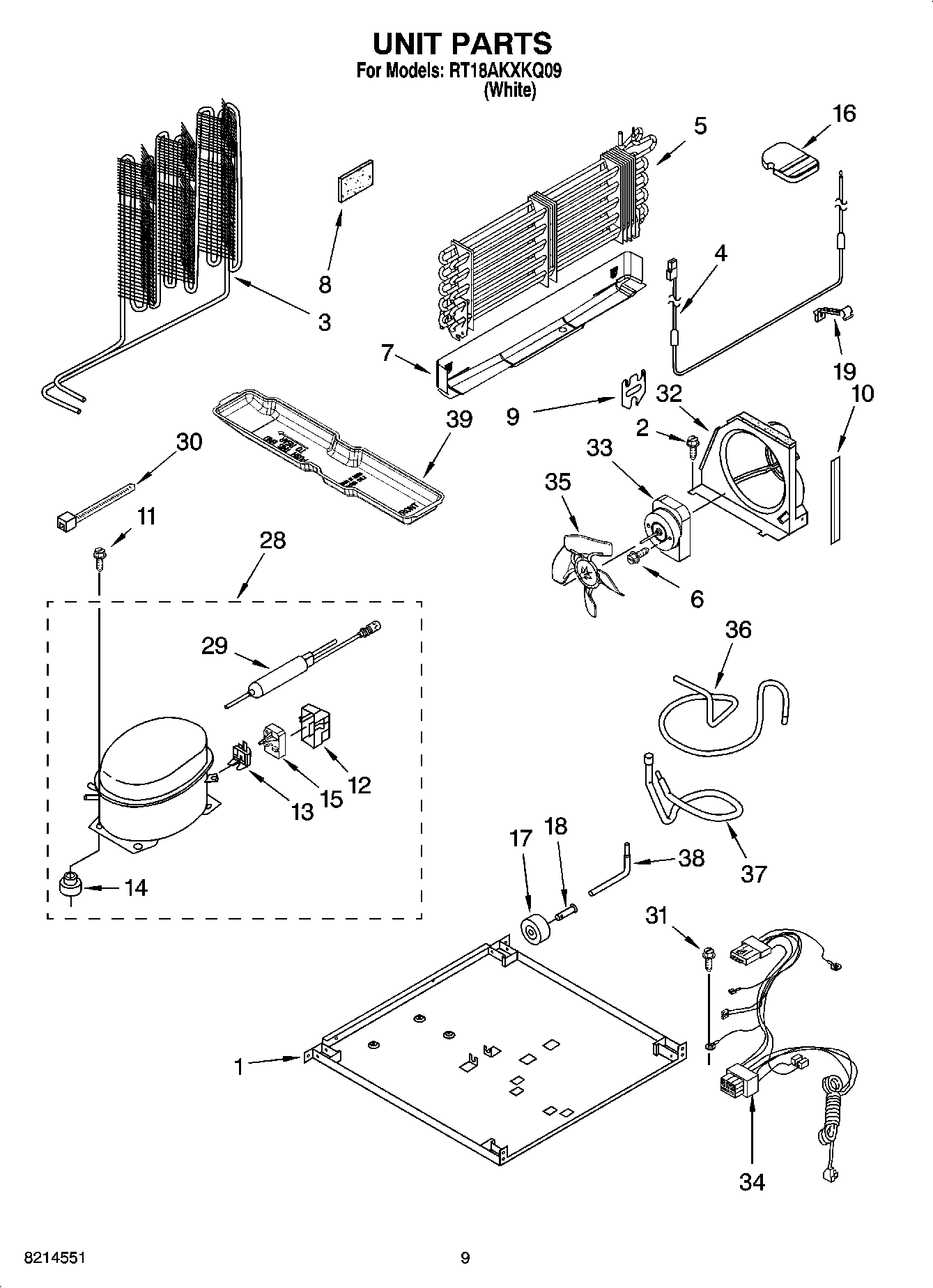

RT18AKXKQ09 06 – UNIT PARTS, OPTIONAL PARTS
Written by
in
RT18AKXKQ09 06 – UNIT PARTS, OPTIONAL PARTS
Products
Position
Product
350930 Whirlpool White Spray Paint
WPL ARI126609A
WP505587 Whirlpool Refrigerator Sealer
72032 Whirlpool Touch Up Paint Black
WP542638 Whirlpool Refrigerator Grease
285006 Whirlpool Spray
Torx Key
W11729596 Whirlpool Ice Maker Field Install Kit
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL 876029
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
WPL 799832
WP503695 Whirlpool Refrigerator Sealer
WPL ARI126605A
876370 Whirlpool Refrigerator Insulation
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI126608A
WPL ARI126607A
WPL ARI126606A
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
WPL 799833
1
Plate, Unit Mounting
2
3400518 Whirlpool Oven Foot Mount Screw
3
WP2214960 Whirlpool Refrigerator Condenser
4
WP2315531 Whirlpool Refrigerator Heater
5
Evaporator Assy.
6
WPW10171469 Whirlpool Refrigerator Screw
7
Drain Pan
8
W11553819 Whirlpool Refrigerator Insulation
9
Bracket, Heater
10
Extension, Air Baffle
12
WP2162358 Whirlpool Refrigerator Terminal Cover
13
WP2302290 Whirlpool Refrigerator Overload
13
WP4387938 Whirlpool Refrigerator Overload
14
WP4387558 Whirlpool Refrigerator Compressor Grommet
14
876811 Whirlpool Grommet
15
WP2258450 Whirlpool Refrigerator Start Device
16
Support Block
17
WPW10475495 Whirlpool Roller Assembly
18
W11594405 Whirlpool Axle
19
Clip, Heater
28
W10823815 Whirlpool Refrigerator Compressor
29
W10843121 Whirlpool Refrigerator Tube
30
WPW10339879 Whirlpool Wire Tie
31
WP489128 Whirlpool Refrigerator Screw
32
Air Baffle
33
WP2188874 Whirlpool Refrigerator Condenser Motor
34
Wire Assy. Unit
35
W11458267 Whirlpool Refrigerator Fan Blade
36
Tube, Discharge
37
2205293 Whirlpool Refrigerator Tube
38
W11676464 Whirlpool Tube
39
WP978025 Whirlpool Refrigerator Valve
39
VALVE, ACCESS (5/8“)
39
REFRIGERANT CHARGE 3.75 Ozs. (R134A)
39
Following Parts Not Illustrated and Optional Parts Not Included
39
8201826 Whirlpool Refrigerator Evaporator Tray
39
978026 Whirlpool Refrigerator Primary Valve
39
876764 Whirlpool Refrigerator Primary Valve
39
978030 Whirlpool Refrigerator Valve
39
978027 Whirlpool Refrigerator Primary Valve
39
VALVE, ACCESS (1/2“)
←
