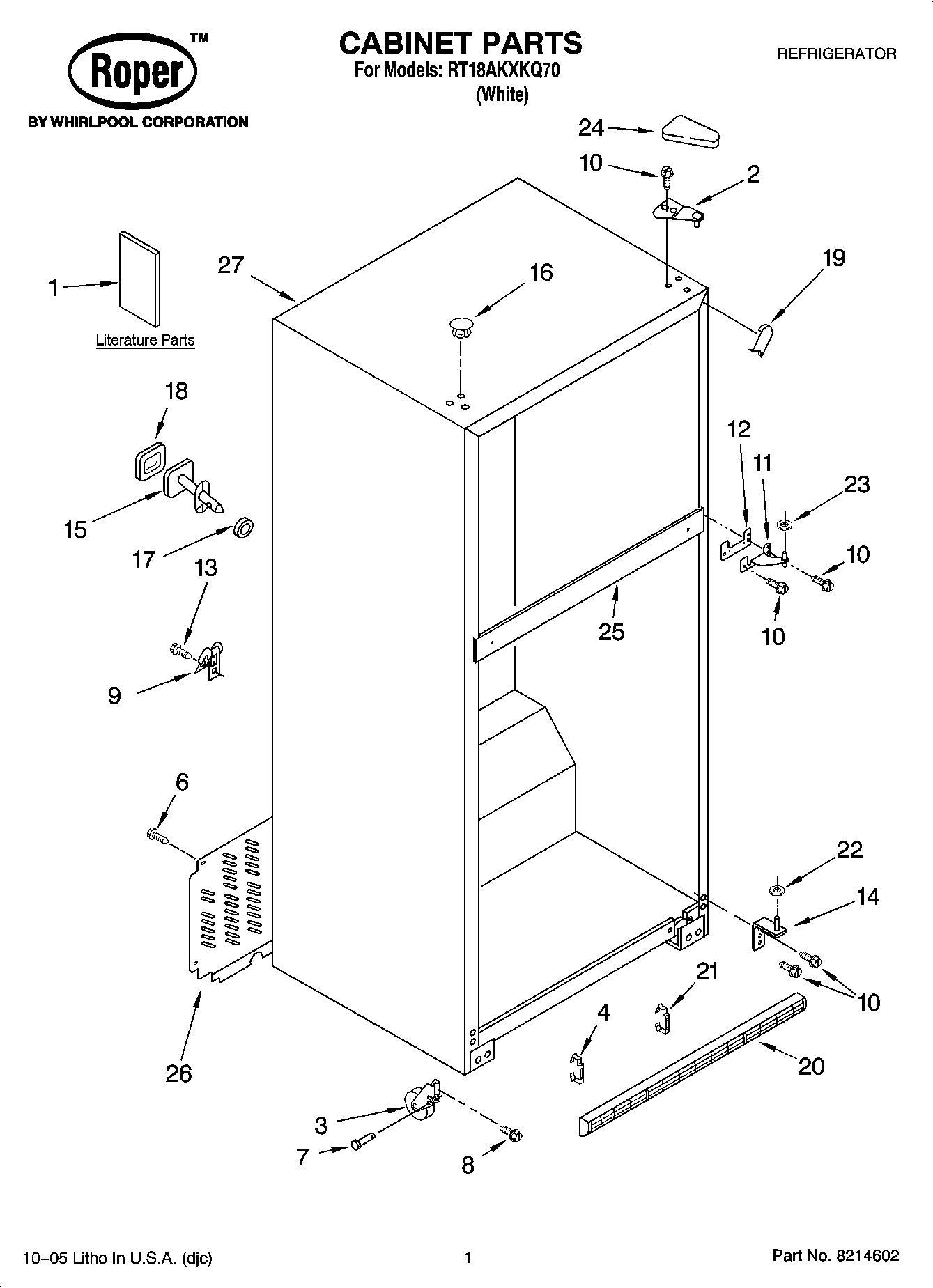

RT18AKXKQ70 01 – CABINET PARTS

RT18AKXKQ70 01 – CABINET PARTS

Written by

in

RT18AKXKQ70 01 – CABINET PARTS

Products

PositionProduct
1Service & Wiring Sheet
1Energy Label
1Customer Instructions
1Use & Care Guide
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4CLIP, GRILLE
6WP489427 Whirlpool Refrigerator Screw
7W11594405 Whirlpool Axle
8WP3400504 Whirlpool Refrigerator Screw
9549193 Whirlpool Refrigerator Power Clamp
10WP489497 Whirlpool Screw
11WP2254618 Whirlpool Center Door Hinge
12WP2183854 Whirlpool Refrigerator Shim
13WP489464 Whirlpool Refrigerator Screw
14WP2254473 Whirlpool Refrigerator Door Hinge
15Fitting, Water Tube (Not Serviced)
16WP2151652 Whirlpool Refrigerator Button Plug
17Seal, Front (Not Serviced)
18Seal, Rear (Not Serviced)
19WPW10283959 Whirlpool Refrigerator Filler
20WP2254386 Whirlpool Refrigerator Grille
212254385 Whirlpool Refrigerator Clip
22WP487576 Whirlpool Washer
23WP489467 Whirlpool Hinge Shim
24WP2213360 Whirlpool Refrigerator Cover
25Rail Center (Not Serviced)
26Cover, Unit
27Cabinet (Not A Serviceable Part)
