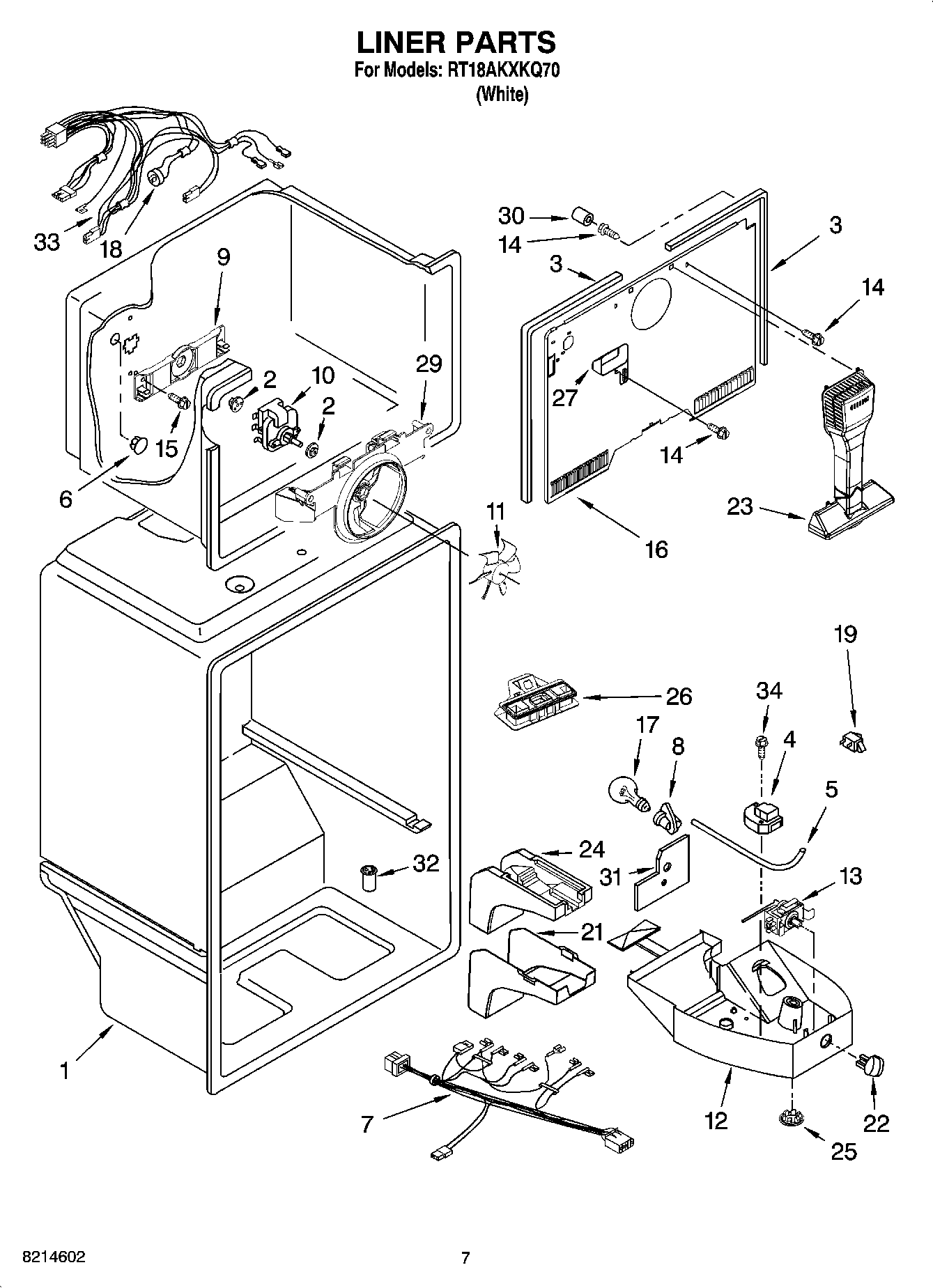

RT18AKXKQ70 05 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WP2314156 Whirlpool Refrigerator Defrost Timer
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	WP941839 Whirlpool Refrigerator Button Plug
7	Wire Assembly Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	2254454 Whirlpool Refrigerator Bracket
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	WP2204605 Whirlpool Refrigerator Thermostat
14	WP489478 Whirlpool Refrigerator Screw
15	WP488163 Whirlpool Refrigerator Screw
16	Cover-Evaporator
17	W10887190 Whirlpool Refrigerator Light Bulb
18	WP2321800 Whirlpool Refrigerator Bimetallic Defrost
19	W11384469 Whirlpool Door Switch
21	Cover, Air Diffuser
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	940014 Whirlpool Refrigerator Primary Button Plug
26	Air Separator Assembly
27	Cover, Hole
29	BRACKET, FAN MOTOR
30	WP487996 Whirlpool Refrigerator Cap Tube
31	Shield, heat
32	WP2210509 Whirlpool Refrigerator Tub Valve
33	Wire Assembly Freezer Compt. (Includes Item 32)
34	WP98129 Whirlpool Screw
