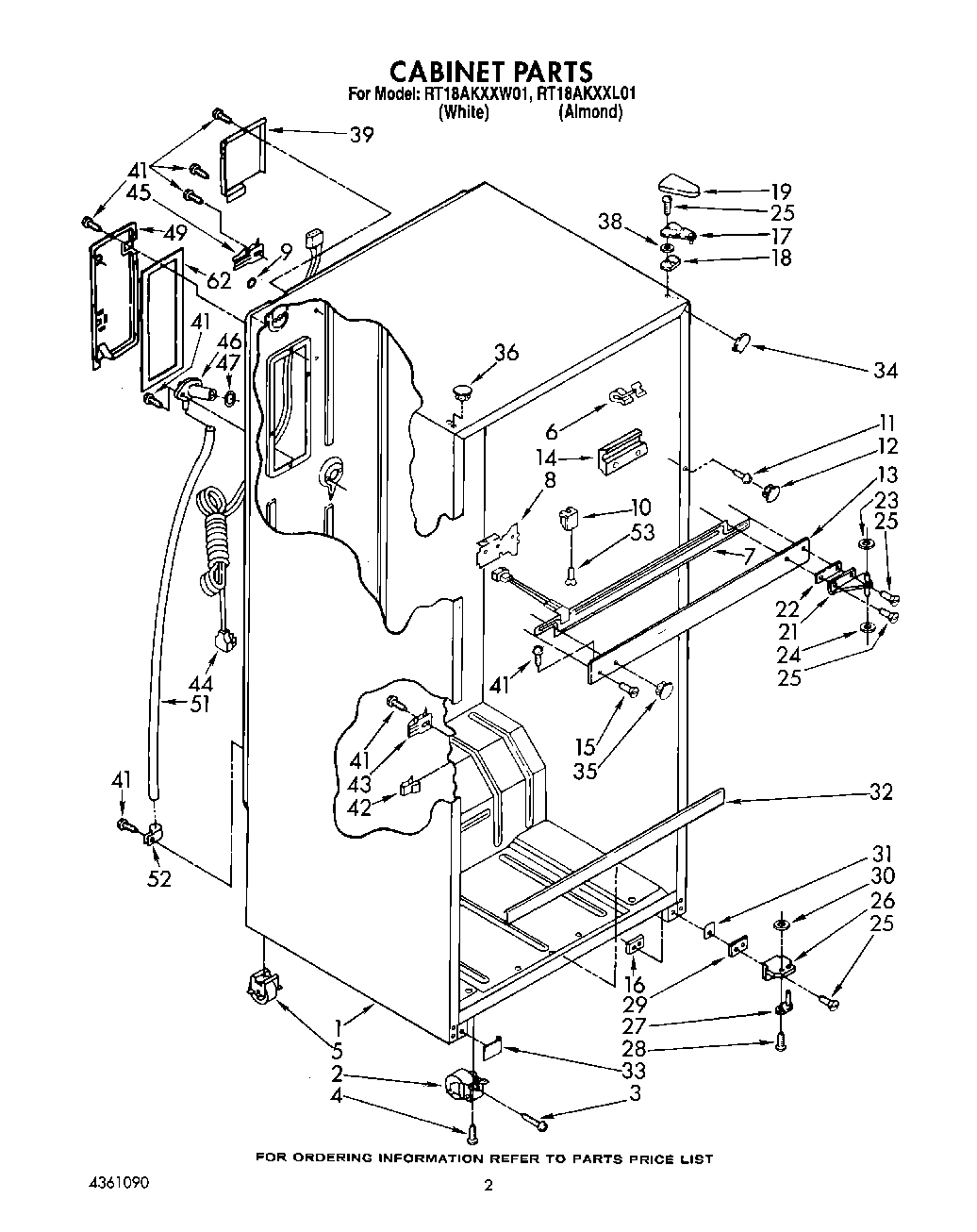

RT18AKXXL01 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw
4	Screw, 10-32 x 1/2
5	Roller, Rear
6	Clip, Center Rail (4)
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	WPL 1120224
9	Hole Seal
10	Spacer (3)
11	Screw
12	Hole Plug (2) (White)
12	Hole Plug (2) (Almond)
13	Center Rail (Almond)
13	Center Rail (White)
14	Center, Rail Shim (2)
15	Screw, 8-32 x 1/2 (2)
16	Tap Plate (2)
17	Hinge, Top
18	Shim, Hinge
19	1119787 Whirlpool Refrigerator Hinge Cover
21	Hinge, Center
22	Shim, Hinge Center
23	WP489200 Whirlpool Refrigerator Washer
24	WP488296 Whirlpool Washer Refrigerator
25	Screw
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (White)
31	Cover, Glider Rail (Almond)
32	Cover, Deck Rail (White)
32	Cover, Deck Rail (Almond)
33	WPL 944831
33	WPL 943552
34	WPL 1110684
34	WPL 1110685
35	Hole Plug (Almond)
35	Hole Plug (White)
36	WP2151652 Whirlpool Refrigerator Button Plug
36	Hole Plug (6) (Almond)
38	WP487576 Whirlpool Washer
39	WPL 942845
41	WP489464 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
49	WPL 1106511
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	WP489174 Whirlpool Refrigerator Screw
62	WPL 1106510
