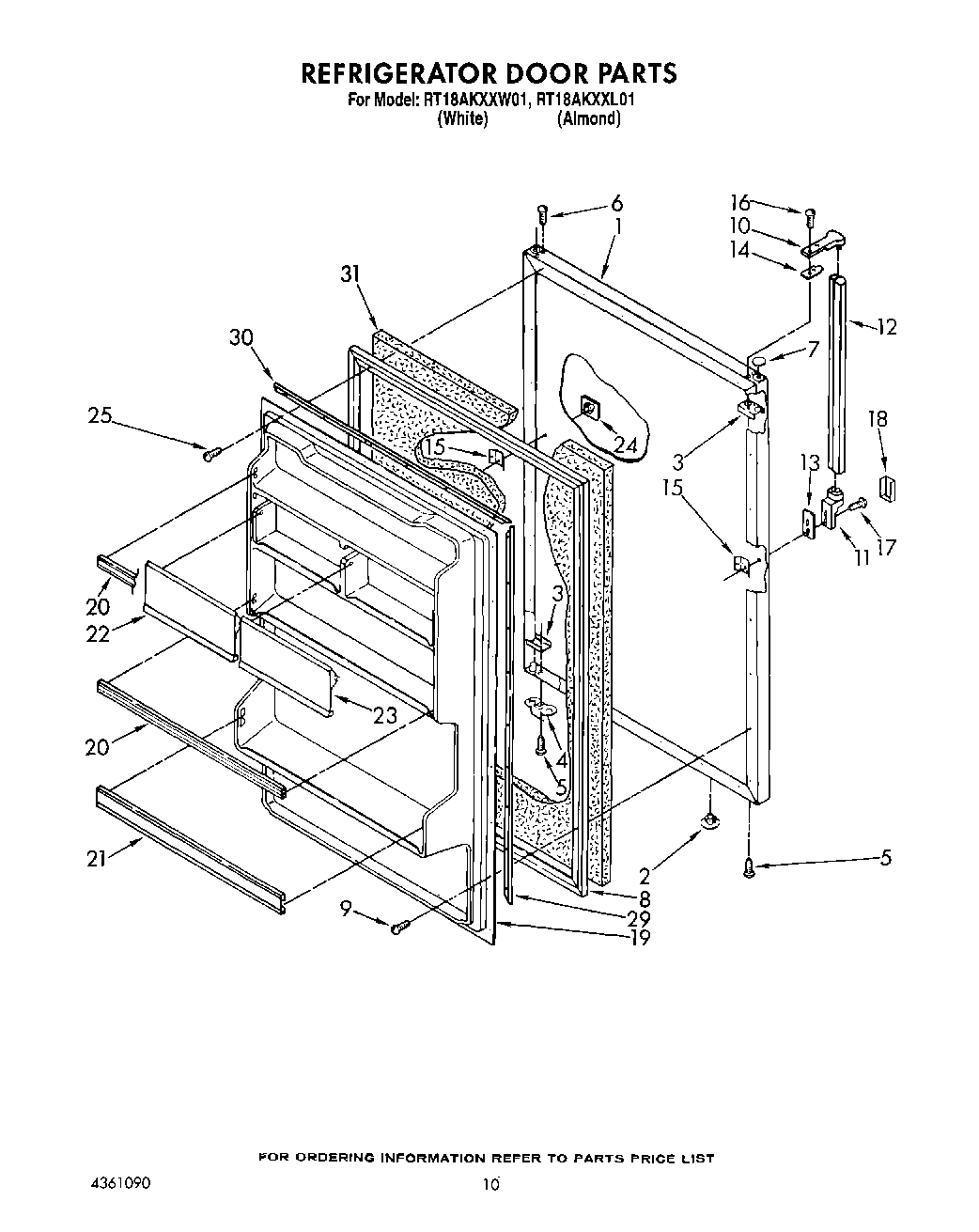

RT18AKXXL01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

RT18AKXXL01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

RT18AKXXL01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	350942 Whirlpool Spray Paint
	WPL LIT628107
	Torx Key
	Golden Harvest
	WPL LIT2150256
	WPL LIT4361090
	350956 Whirlpool Spray Assembly
	WPL LIT2152399
	WPL LIT2154703
	Leveler (Thinner)
1	Panel, Refrigerator Door (White)
1	Panel, Refrigerator Door (Almond)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End,
12	Handle, Center
13	Shim, Handle
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Cover, End Cap
19	Interior Door Panel
20	Trim, Door (2)
21	Trim, Door
22	Compartment Door, Utility
23	Compartment, Butter Door
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	Hole Plug, Handle (Almond)
29	Gasket Retainer, Side (2)
30	Gasket Retainer, Top & Bottom (2)
31	Golden Harvest (Uncut)
31	WP503695 Whirlpool Refrigerator Sealer
31	799344 Whirlpool Refrigerator Paint
31	72017 Whirlpool Appliance Touch-Up Paint White
31	WP505587 Whirlpool Refrigerator Sealer
31	WPL 876029
31	WPL 799833
31	CEMENT, ALUMILASTIC (1 1/4 OZ.)
31	876370 Whirlpool Refrigerator Insulation
31	833938 Whirlpool Refrigerator Terminal
31	606755 Whirlpool Refrigerator Bag
31	72032 Whirlpool Touch Up Paint Black
31	WP72107 Whirlpool Touchup
31	Almond (Uncut)
31	511873 Whirlpool Refrigerator Paint
31	TAPE, VINYL (3/4 X 108“)
31	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
31	212643 Whirlpool Refrigerator Permagum Sealer
31	WP542638 Whirlpool Refrigerator Grease
