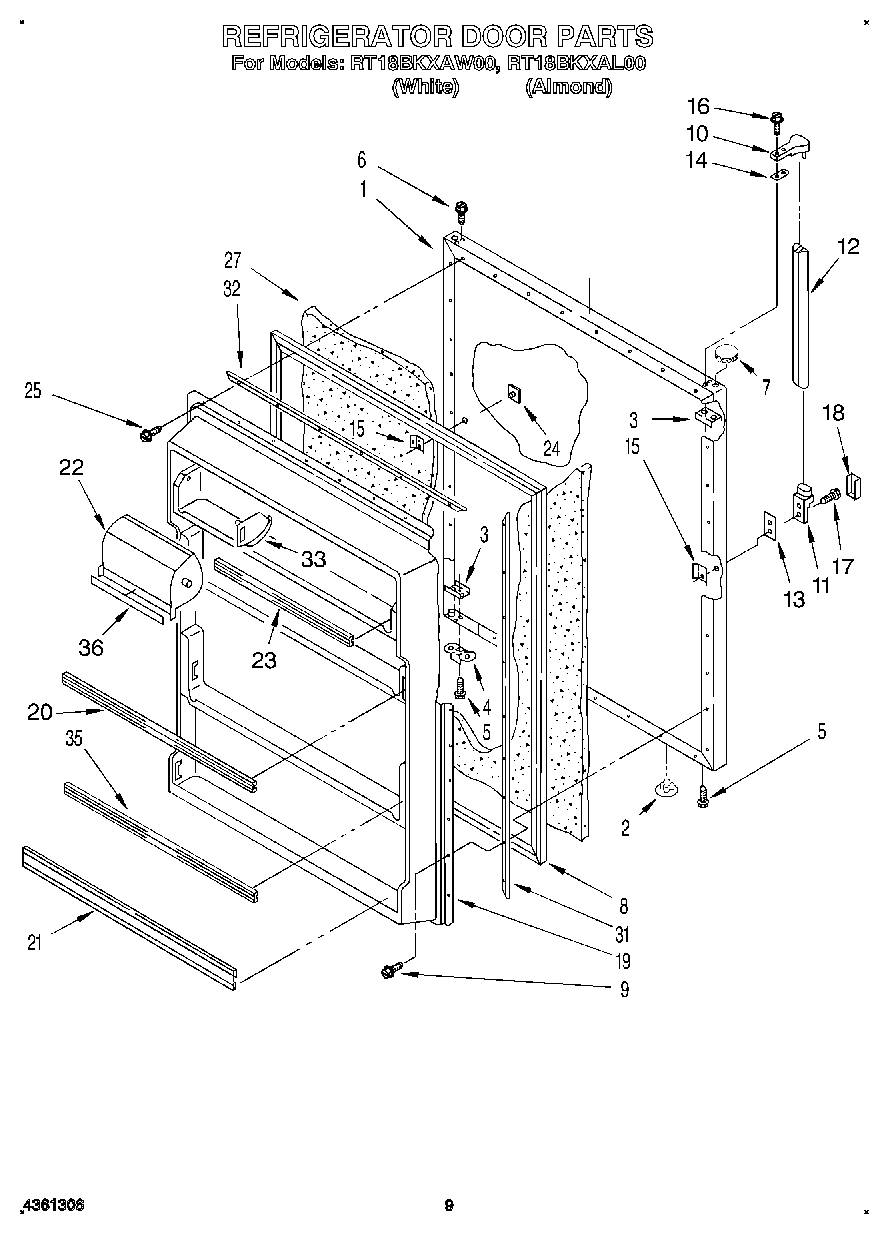

RT18BKXAW00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

RT18BKXAW00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

RT18BKXAW00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	WPL LIT2154075
	WPL LIT2163204
	WPL LIT2163294
	WPL LIT4361306
1	Panel, Refrigerator Door (Also Order Item 27) (White)
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End,
12	Handle, Center
13	Shim, Handle
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Cover, End Cap
19	Interior Door Panel
20	Trim, Door Shelf
21	Trim, Door Shelf
22	Compartment Door, Utility
23	Trim, Door Shelf
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
31	Retainer, Gasket Side (2)
32	WPL 1115137
33	Hinge Pin, Center
35	Trim, Door Shelf
36	Golden Harvest
36	Almond (Uncut)
36	Leveler (Thinner)
36	WP72107 Whirlpool Touchup
36	799344 Whirlpool Refrigerator Paint
36	72017 Whirlpool Appliance Touch-Up Paint White
36	350956 Whirlpool Spray Assembly
36	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
36	WPL 876029
36	Golden Harvest (Uncut)
36	212643 Whirlpool Refrigerator Permagum Sealer
36	WPL 799833
36	TAPE, VINYL (3/4 X 108“)
36	WP542638 Whirlpool Refrigerator Grease
36	WP505587 Whirlpool Refrigerator Sealer
36	WP503695 Whirlpool Refrigerator Sealer
36	285006 Whirlpool Spray
36	72032 Whirlpool Touch Up Paint Black
36	876370 Whirlpool Refrigerator Insulation
36	833938 Whirlpool Refrigerator Terminal
36	350930 Whirlpool White Spray Paint
36	606755 Whirlpool Refrigerator Bag
36	CEMENT, ALUMILASTIC (1 1/4 OZ.)
36	511873 Whirlpool Refrigerator Paint
36	350942 Whirlpool Spray Paint
36	Trim, Compartment Door
