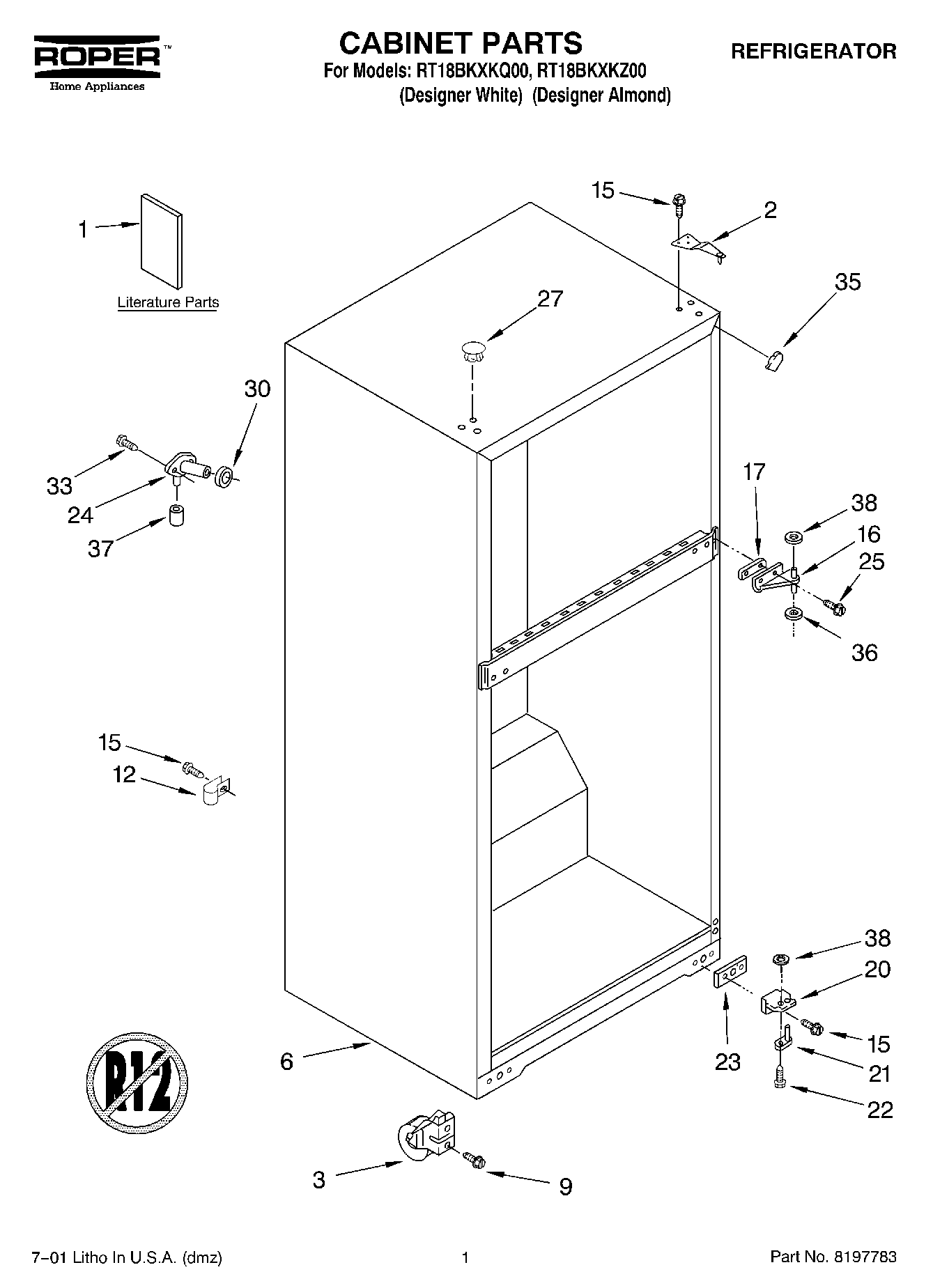

RT18BKXKQ00 01 – CABINET, LITERATURE

Products

PositionProduct
1Energy Label
1LITERATURE PARTS (Use & Care Guide)
1LITERATURE PARTS (Service & Wiring Sheet)
2WP2261963 Whirlpool Refrigerator Door Hinge
32324094 Whirlpool Refrigerator Cabinet Roller
6Cabinet (Not A Serviceable Part)
92222100 Whirlpool Refrigerator Screw
12549193 Whirlpool Refrigerator Power Clamp
15WP489497 Whirlpool Screw
16WP2166037 Whirlpool Refrigerator Door Hinge
172166043 Whirlpool Refrigerator Shim
20WP2325482 Whirlpool Bottom Hinge
21Hinge-Pin Bott.
22WP3428970 Whirlpool Refrigerator Screw
23WP2201567 Whirlpool Hinge Shim
24WP2196157 Whirlpool Fill Tube
25Screw
27WP2151652 Whirlpool Refrigerator Button Plug
30WP1106508 Whirlpool Refrigerator Gasket
35W10859322 Whirlpool Refrigerator Filler
36WP488296 Whirlpool Washer Refrigerator
37WP487996 Whirlpool Refrigerator Cap Tube
38WP487802 Whirlpool Refrigerator Washer
