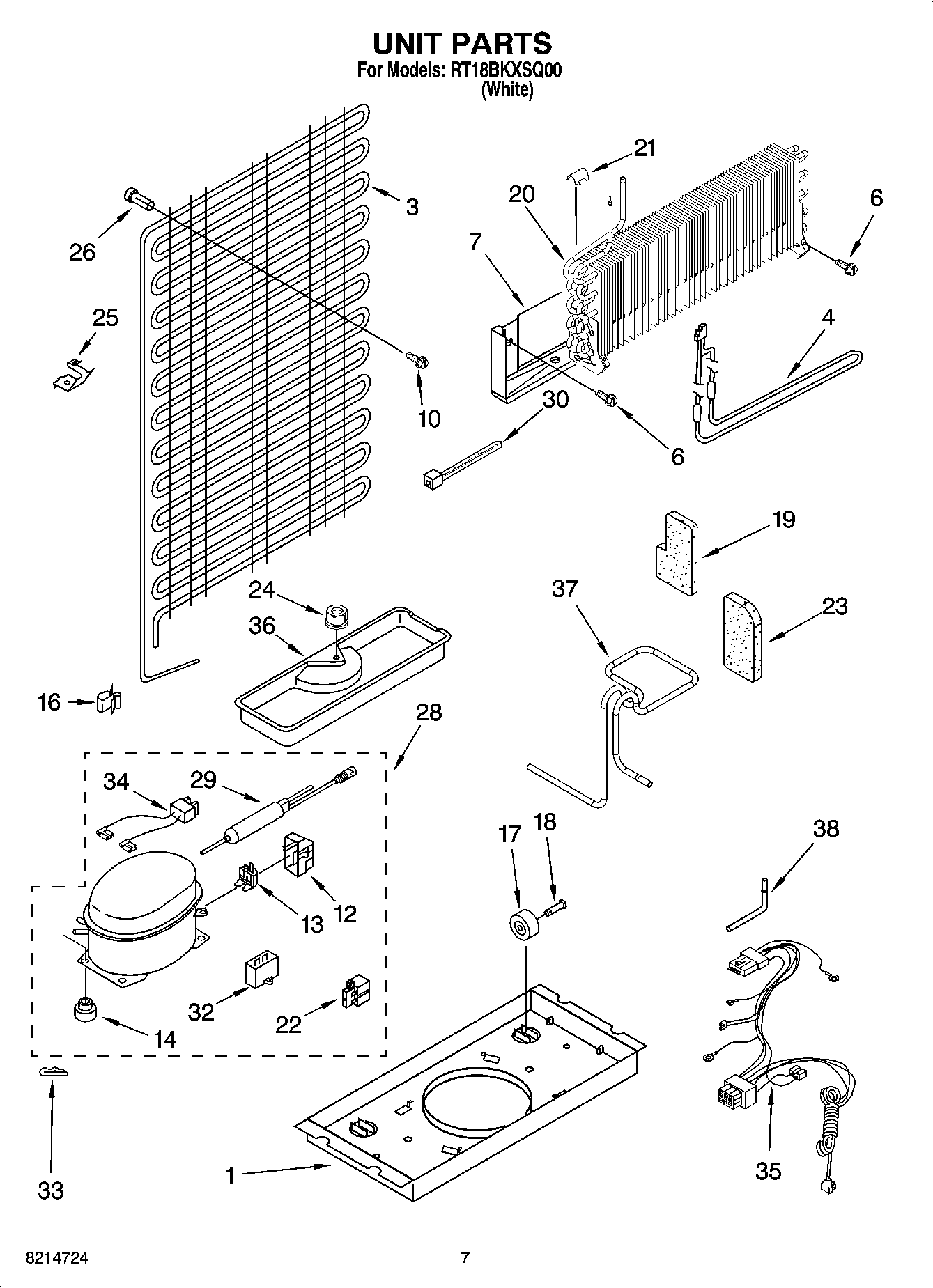

RT18BKXSQ00 04 – UNIT PARTS

Products

Position	Product
1	WPW10222451 Whirlpool Refrigerator Support
3	WPW10219349 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
6	WP489442 Whirlpool Refrigerator Screw
7	Heat Shield
10	Screw
12	2217635 Whirlpool Term Cover
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	2183408 Whirlpool Refrigerator Overload
13	WP2214067 Whirlpool Refrigerator Overload Relay
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	WPW10169124 Whirlpool Refrigerator Grommet
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	9791833 Whirlpool Refrigerator Clip
22	W10920279 Whirlpool Refrigerator Start Relay
22	WP10097204 Whirlpool Start Relay
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	2258452 Whirlpool Refrigerator Spacer
28	Compressor (Includes Items 12,13,14,22,29, 32 & 34) (Also Order 482801 Installation Kit & 876765 Tube Kit)
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	Clip, Compressor
34	WP2172890 Whirlpool Refrigerator Wire
35	Wire Assy. Unit
36	Tray, Evaporator
37	Tube, Discharge
38	VALVE, ACCESS (1/2“)
38	WP978025 Whirlpool Refrigerator Valve
38	978030 Whirlpool Refrigerator Valve
38	978027 Whirlpool Refrigerator Primary Valve
38	978026 Whirlpool Refrigerator Primary Valve
38	876764 Whirlpool Refrigerator Primary Valve
38	VALVE, ACCESS (5/8“)
