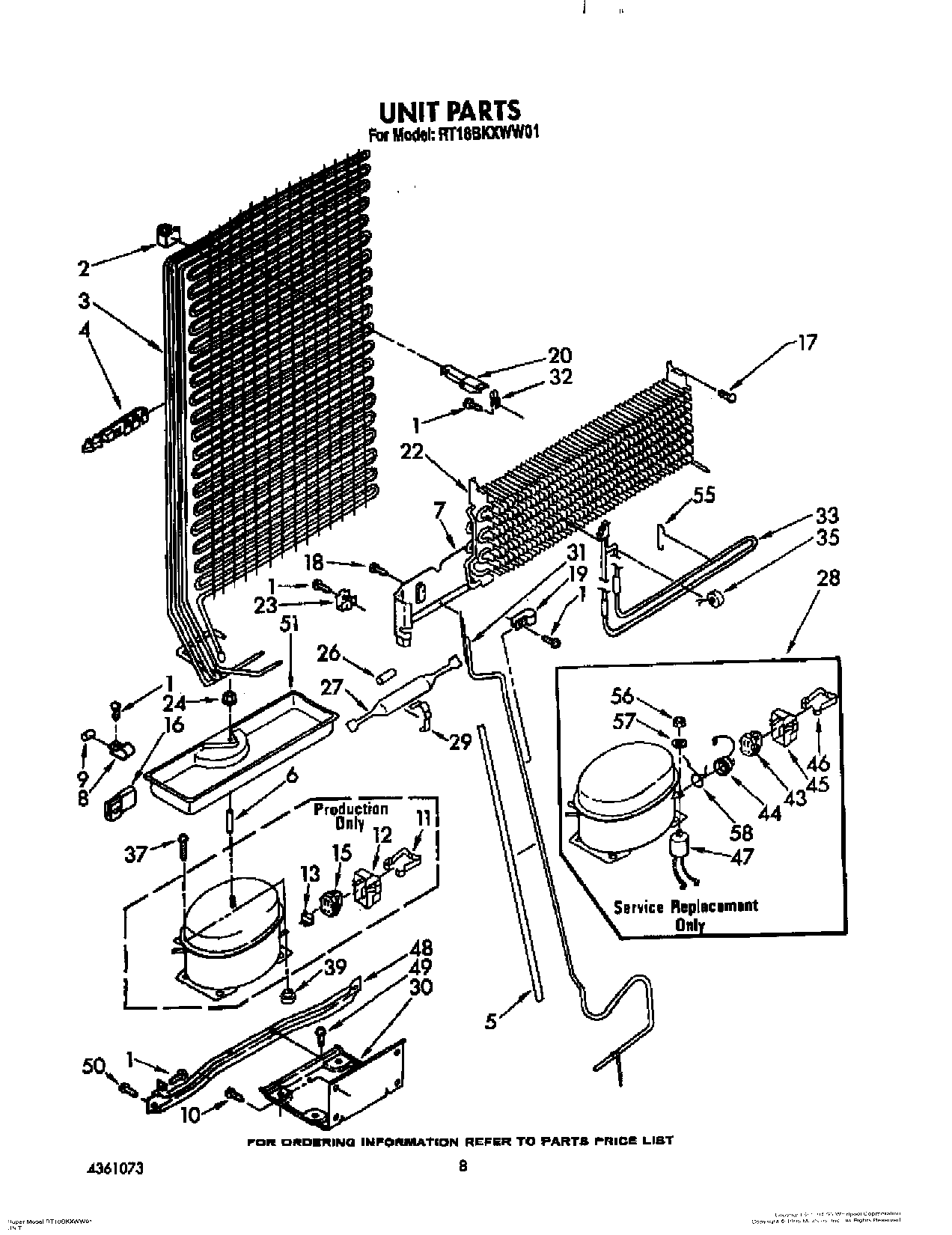

RT18BKXWG01 07 – UNIT

RT18BKXWG01 07 – UNIT

Written by

in

RT18BKXWG01 07 – UNIT

Products

PositionProduct
1WP489478 Whirlpool Refrigerator Screw
2Bumper (2)
3Condenser & Precooler Assembly
4Clip, Tube (2)
5WP2002171 Whirlpool Refrigerator Sleeve
6Spacer
7Heat Shield Evaporator
8Clamp Tube
9Dampener
12Cover
13Overload
16WP717253 Whirlpool Dishwasher Connector
17WP489174 Whirlpool Refrigerator Screw
19Tube, Clamp
20Condenser, Stand-Off
22Evaporator
234386951 Whirlpool Refrigerator Clip
24285002 Whirlpool Nut
26Restrictor Sleeve
27W10843121 Whirlpool Refrigerator Tube
28Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29Clamp, Dryer
30Unit Mounting Plate
31Exchanger, Heat
32Clip, Stand Off
33Heater, Defrost
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
39876811 Whirlpool Grommet
43WP2262181 Whirlpool Refrigerator Start Relay
44Overload
45Cover, Terminal
46Strap
47Capacitor
48Unit Mounting Rail
49WP965173 Whirlpool Dishwasher Screw
50WP489427 Whirlpool Refrigerator Screw
51Evaporator Tray
55Support, Heater
56Nut
57Washer
58WP978025 Whirlpool Refrigerator Valve
58VALVE, ACCESS (1/2“)
58978030 Whirlpool Refrigerator Valve
58978027 Whirlpool Refrigerator Primary Valve
58Overload Spring
58876764 Whirlpool Refrigerator Primary Valve
58VALVE, ACCESS (5/8“)
58978026 Whirlpool Refrigerator Primary Valve
