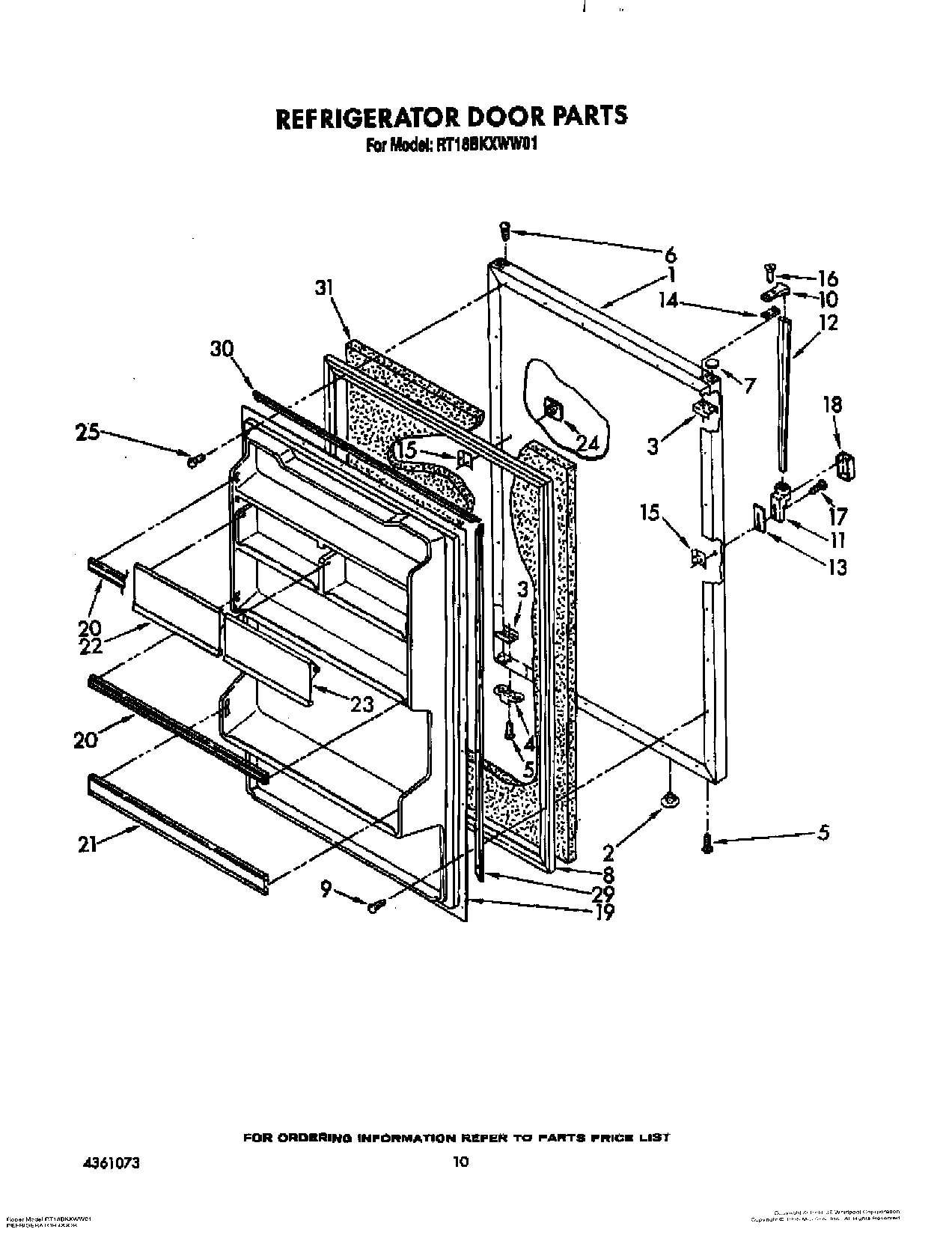

RT18BKXWG01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

RT18BKXWG01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

RT18BKXWG01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
350942 Whirlpool Spray Paint
Torx Key
Golden Harvest
WPL LIT4361073
Leveler (Thinner)
350956 Whirlpool Spray Assembly
WPL LIT2148886
WPL LIT2150256
WPL LIT2149679
1Panel, Refrigerator Door (White)
1Panel, Refrigerator Door (Golden Harvest)
1Panel, Refrigerator Door (Almond)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
8Door Gasket, Magnetic
9WP489069 Whirlpool Compactor Screw
10Handle End
11Handle End,
12Handle, Center
13Shim, Handle
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18Cover, End Cap
19Interior Door Panel
20Trim, Door (2)
21Trim, Door
22Compartment Door, Utility
23Compartment, Butter Door
24WP2189000 Whirlpool Refrigerator Handle Plug
24Hole Plug, Handle (White)
24Hole Plug, Handle (Almond)
29Gasket Retainer, Side (2)
30Gasket Retainer, Top & Bottom (2)
31Almond (Uncut)
3172017 Whirlpool Appliance Touch-Up Paint White
31799344 Whirlpool Refrigerator Paint
31WP72107 Whirlpool Touchup
3172110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
31CEMENT, ALUMILASTIC (1 1/4 OZ.)
31WPL 799833
31WPL 876029
31WP505587 Whirlpool Refrigerator Sealer
31WP503695 Whirlpool Refrigerator Sealer
31876370 Whirlpool Refrigerator Insulation
31833938 Whirlpool Refrigerator Terminal
31606755 Whirlpool Refrigerator Bag
3172032 Whirlpool Touch Up Paint Black
31511873 Whirlpool Refrigerator Paint
31TAPE, VINYL (3/4 X 108“)
31212643 Whirlpool Refrigerator Permagum Sealer
31Golden Harvest (Uncut)
31WP542638 Whirlpool Refrigerator Grease
