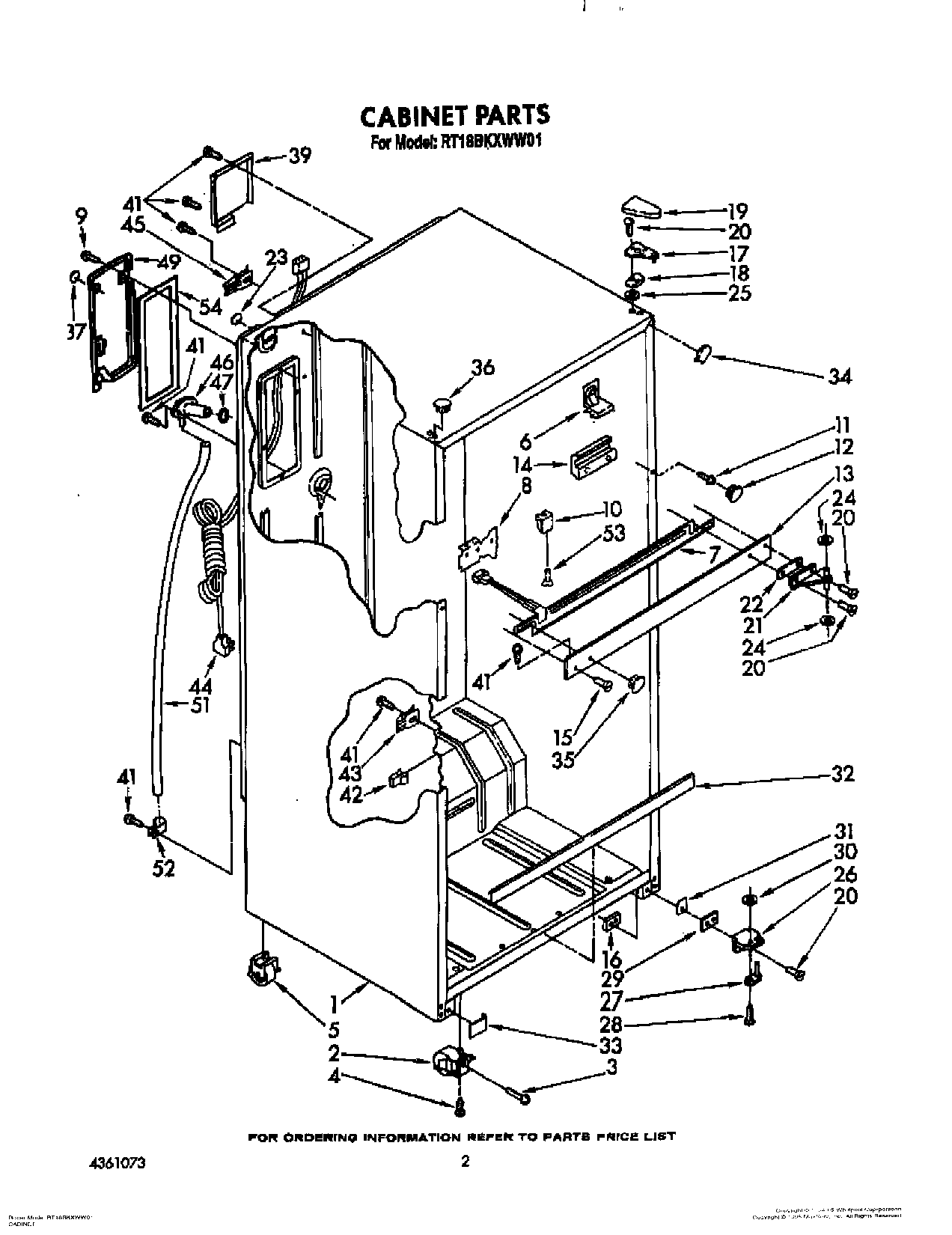

RT18BKXWW01 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw
4	Screw, 10-32 x 1/2
5	Roller, Rear
6	Clip, Center Rail (4)
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	WP489464 Whirlpool Refrigerator Screw
10	Spacer (3)
11	Screw, 8-32 x 1/2 (2)
12	Hole Plug (2) (Golden Harvest)
12	Hole Plug (2) (Almond)
12	Hole Plug (2) (White)
13	Center Rail (Almond)
13	Center Rail (White)
13	Center Rail (Golden Harvest)
14	Center, Rail Shim (2)
15	Screw
16	Tap Plate (2)
17	Hinge, Top
18	Shim, Hinge
19	Hinge Cover (Golden Harvest)
19	1119787 Whirlpool Refrigerator Hinge Cover
20	Screw
21	Hinge, Center
22	Shim, Hinge Center
23	Hole Seal
24	WP488296 Whirlpool Washer Refrigerator
25	WP487576 Whirlpool Washer
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (Golden Harvest)
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (White)
32	Cover, Deck Rail (White)
32	Cover, Deck Rail (Golden Harvest)
32	Cover, Deck Rail (Almond)
33	WPL 944833
33	WPL 944831
33	WPL 943552
34	WPL 1110685
34	WPL 1110684
34	WPL 1110686
35	Hole Plug (Almond)
35	WPL 1119708
35	Hole Plug (White)
36	WP2151652 Whirlpool Refrigerator Button Plug
36	Hole Plug (5) (Golden Harvest)
36	Hole Plug (6) (Almond)
37	WPL 1120224
39	WPL 942845
41	WP489478 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
49	WPL 1106511
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	WP489174 Whirlpool Refrigerator Screw
54	WPL 1106510
