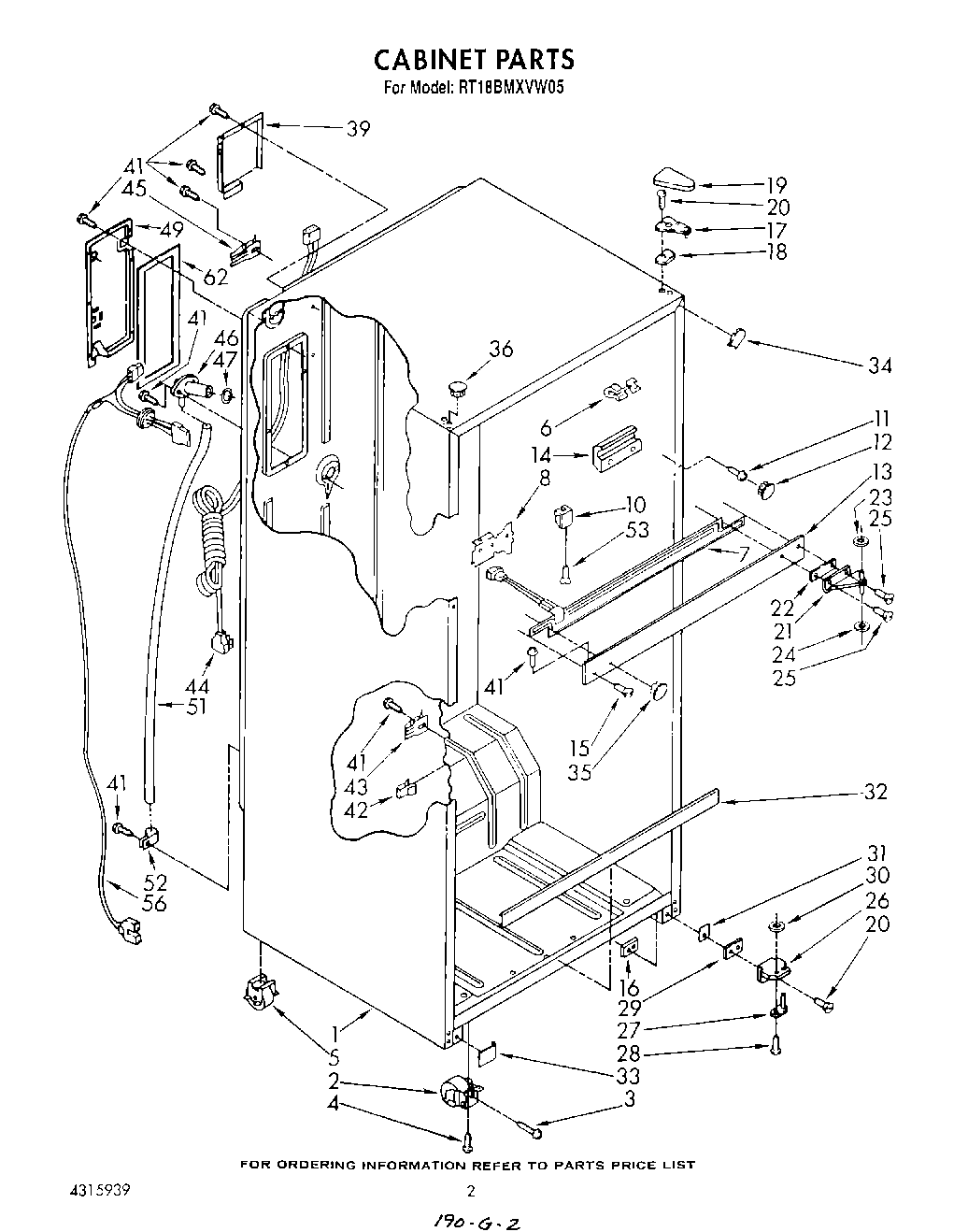

RT18BMXVG05 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Roller, Front
3Screw
4Screw, 10-32 x 1/2
5Roller, Front & Rear (4)
6Breaker, Trim Clip
7Heater, Mullion
8Center Rail, Bracket (2)
10Spacer (2)
11WPL 488844
12Hole Plug (2) (Golden Harvest)
12Hole Plug (2) (White)
12Hole Plug (2) (Almond)
13Center Rail (Golden Harvest)
13Center Rail (Almond)
13Center Rail (White)
14Center, Rail Shim (2)
15Screw
16Tap Plate (2)
17Hinge, Top
18Shim, Hinge Top
191119787 Whirlpool Refrigerator Hinge Cover
19Hinge Cover (Golden Harvest)
20Screw
21Hinge, Center
22Shim, Hinge Center
22Shim, Center (Repair)
23WP487802 Whirlpool Refrigerator Washer
24WP488296 Whirlpool Washer Refrigerator
25Screw (Repair)
25Screw
26Hinge Butt, Bottom
27Hinge Pin, Bottom
28Screw 10-32 x 5/16
29Shim, Bottom
30Washer, 7/64
31Cover, Glider Rail (White)
31Cover, Glider Rail (Almond)
31Cover, Glider Rail (Golden Harvest)
32Cover, Deck Rail (Almond)
32Cover, Deck Rail (Golden Harvest)
32Cover, Deck Rail (White)
33WPL 944831
33WPL 943552
33WPL 944833
34Filler, Wrapper Corner (2) (White)
34Filler, Wrapper Corner (2) (Almond)
34Filler, Wrapper Corner (2) (Golden Harvest)
35Hole Plug (Almond)
35Hole Plug (White)
35WPL 1119708
36Hole Plug (4) (White)
36Hole Plug (4) (Almond)
36Hole Plug (4) (Golden Harvest)
39WPL 942845
41SCREW
41WP489478 Whirlpool Refrigerator Screw
42W10812038 Whirlpool Refrigerator Clip
43549193 Whirlpool Refrigerator Power Clamp
44Cord, Service
45Clamp
46WPL 942813
47WPL 1106507
49WPL 1106511
518316810 Whirlpool Refrigerator Drain Tube
52WPL 519405
53WP489174 Whirlpool Refrigerator Screw
56WP2187501 Whirlpool Refrigerator Wire Harness
62WPL 1106510
