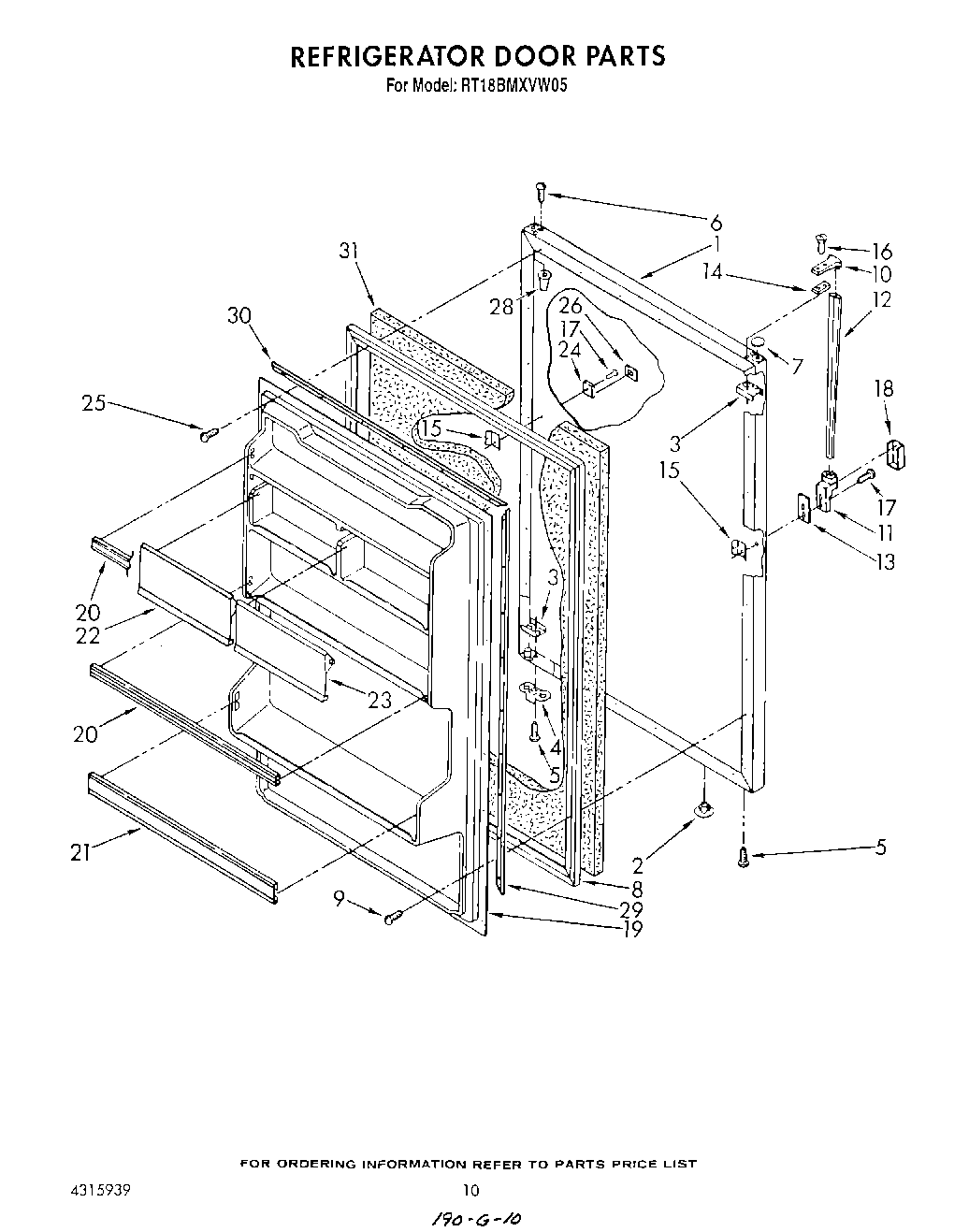

RT18BMXVG05 08 – REFRIGERATOR DOOR

RT18BMXVG05 08 – REFRIGERATOR DOOR

Written by

in

RT18BMXVG05 08 – REFRIGERATOR DOOR

Products

PositionProduct
1Panel, Refrigerator Door (Almond)
1Panel, Refrigerator Door (Golden Harvest)
1Panel, Refrigerator Door (White)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
6Screw (Repair)
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8Door Gasket, Magnetic
9WP489069 Whirlpool Compactor Screw
10Handle End
11Handle End,
12Handle, Center
13Shim, Handle
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
16Screw (Repair)
17WP488729 Whirlpool Refrigerator Door Screw
18Cover, End Cap
19Interior Door Panel
20Trim, Door (2)
21Trim, Door
22Compartment Door, Utility
23Compartment, Butter Door
24Hole Plug, Handle (Almond)
24WP2189000 Whirlpool Refrigerator Handle Plug
24Hole Plug, Handle (White)
28Cap, Hinge Sleeve (2)
29Gasket Retainer, Side (2)
30Gasket Retainer, Top & Bottom (2)
31WPL 876029
