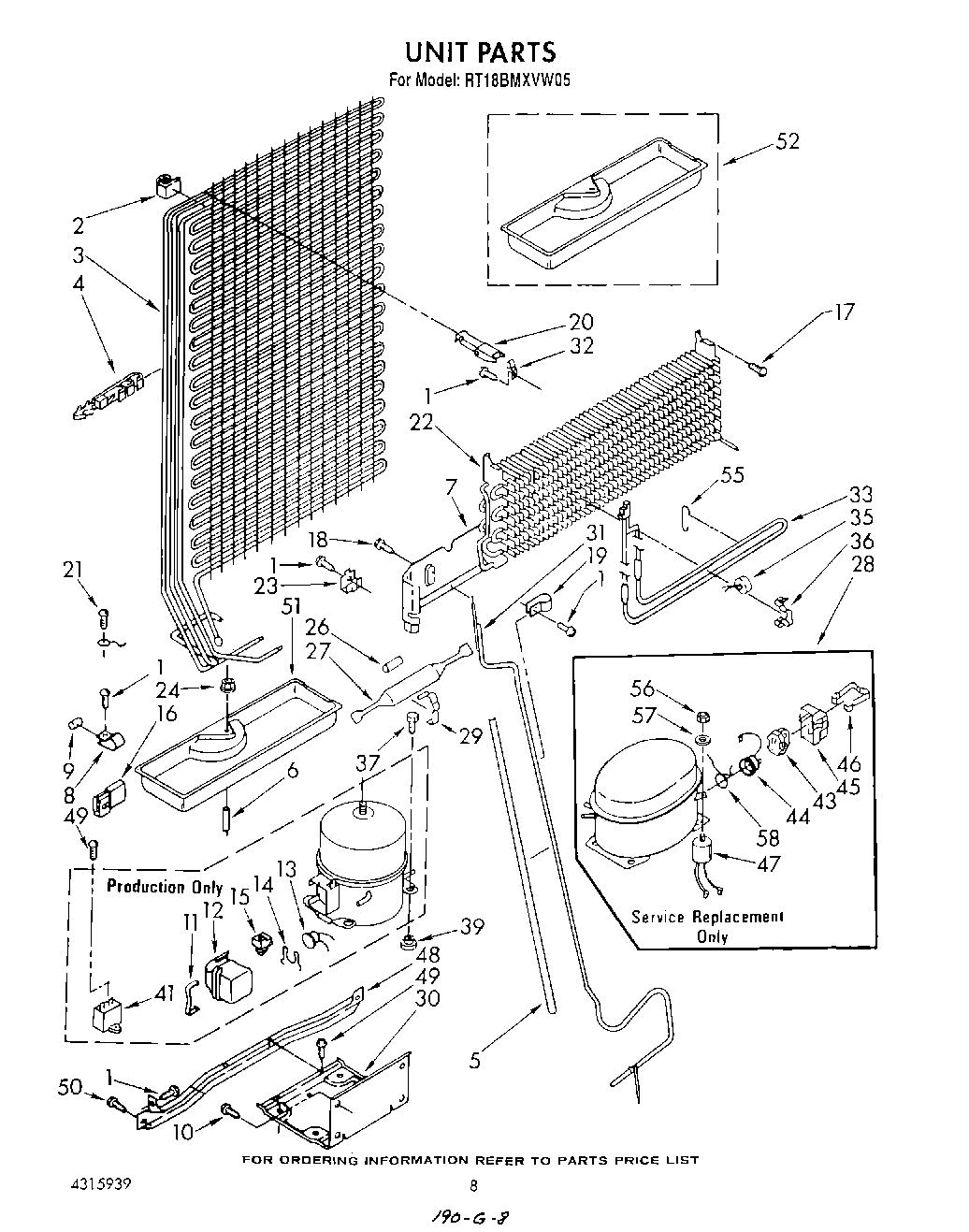

RT18BMXVL05 07 – UNIT

Products

PositionProduct
1WP489478 Whirlpool Refrigerator Screw
1SCREW
2Bumper (2)
3Condenser & Precooler Assembly
4Clip, Tube (2)
5WP2002171 Whirlpool Refrigerator Sleeve
6Spacer
7Heat Shield Evaporator
8Clamp Tube
9Dampener
10WP489069 Whirlpool Compactor Screw
11case spring
12Case, Relay
13Overload
14Spring, Overload
15Relay
16WP717253 Whirlpool Dishwasher Connector
17WP489174 Whirlpool Refrigerator Screw
19Tube, Clamp
20Condenser, Stand-Off
21303776 Whirlpool Dishwasher Screw
22Evaporator
234386951 Whirlpool Refrigerator Clip
24285002 Whirlpool Nut
26Restrictor Sleeve
27W10843121 Whirlpool Refrigerator Tube
28Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29Clamp, Dryer
30Unit Mounting Plate
31Exchanger, Heat
32Clip, Stand Off
33Heater, Defrost
35WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36Clamp
39876811 Whirlpool Grommet
41WPW10662129 Whirlpool Refrigerator Run Capacitor
43WP2262181 Whirlpool Refrigerator Start Relay
44Overload
45Cover, Terminal
46Strap
47Capacitor
48Unit Mounting Rail
49WP965173 Whirlpool Dishwasher Screw
50Screw, 1/4-28 x 1
51Tray, Evaporator
52Evaporator Tray
55Support, Heater
56Nut
57Washer
58978027 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58WP978025 Whirlpool Refrigerator Valve
58VALVE, ACCESS (1/2“)
58876764 Whirlpool Refrigerator Primary Valve
58VALVE, ACCESS (5/8“)
58Overload Spring
58978026 Whirlpool Refrigerator Primary Valve
