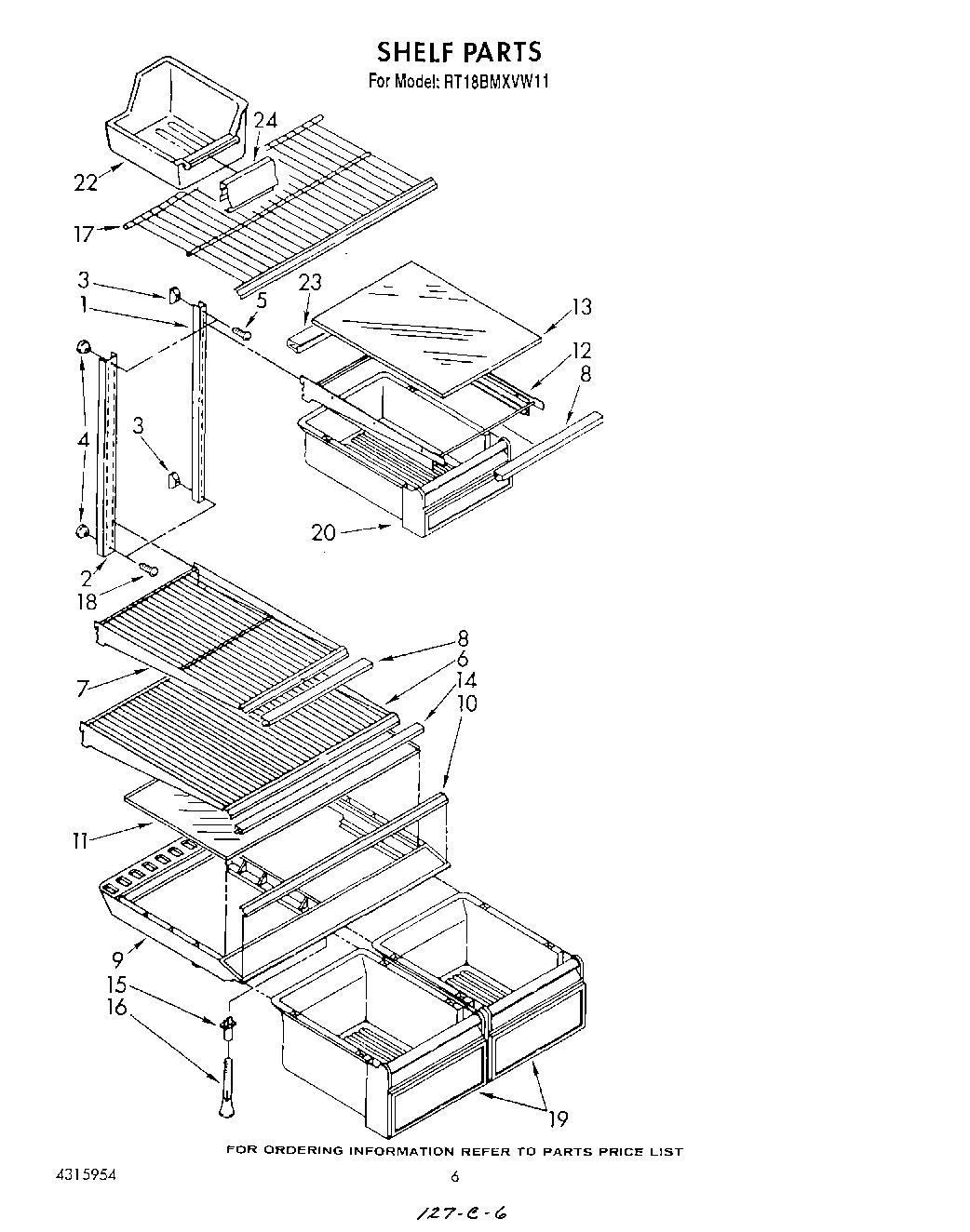

| 1 | Shelf, Ladder (2) |
| 2 | Shelf, Ladder Center |
| 3 | 520965 Whirlpool Refrigerator Support |
| 4 | Screw Support, Center Ladder (2) |
| 5 | Screw, 8-32 x 1-1/4 (3) |
| 6 | Shelf, Wire Cantilever Full Shelf |
| 7 | Shelf, Cantilever |
| 8 | Trim, Shelf |
| 9 | Crisper Cover |
| 10 | Trim, Crisper Cover |
| 11 | Glass, Crisper Cover |
| 12 | Pan Shelf, Cantilever |
| 13 | Glass, Shelf |
| 14 | Trim, Shelf |
| 15 | Support, Crisper Cover |
| 16 | Post, Cover |
| 17 | Shelf, Freezer |
| 18 | WP488163 Whirlpool Refrigerator Screw |
| 19 | Pan, Crisper |
| 20 | Pan, Meat |
| 22 | Ice Cube Pan |
| 23 | Retainer, Glass Shelf |
| 24 | Trim, Ice Pan |
