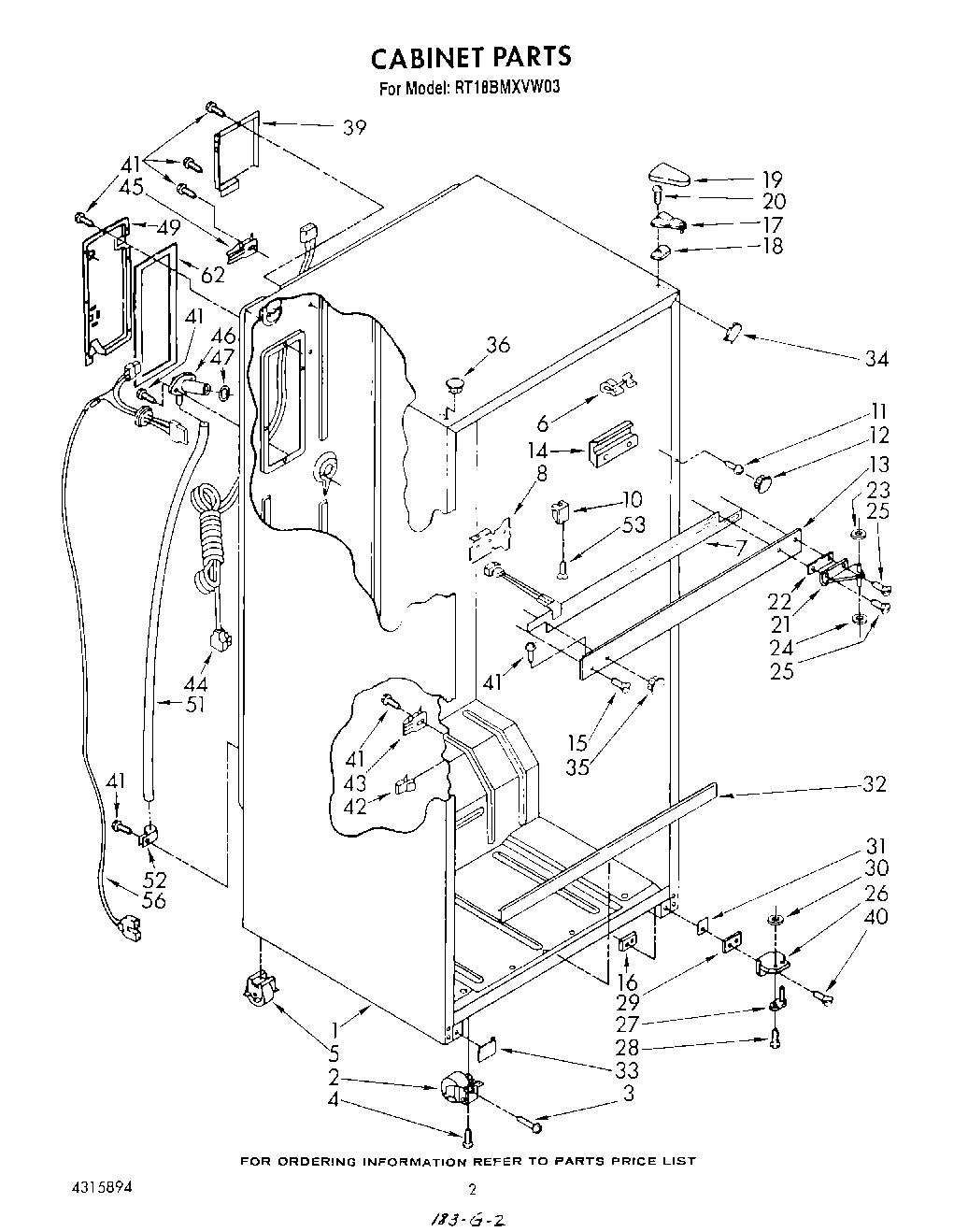

RT18BMXVW03 02 – CABINET

RT18BMXVW03 02 – CABINET

Written by

in

RT18BMXVW03 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Roller, Front
3Screw
4Screw, 10-32 x 1/2
5Roller, Front & Rear (4)
6Breaker, Trim Clip
7Heater, Mullion
8Center Rail, Bracket (2)
10Spacer (2)
11WPL 488844
12Hole Plug (2) (Golden Harvest)
12Hole Plug (2) (Almond)
12Hole Plug (2) (White)
13Center Rail (Golden Harvest)
13Center Rail (Almond)
13Center Rail (White)
14Center, Rail Shim (2)
15Screw
16WPL 944813
17Hinge, Top
18Shim, Hinge Top
19Hinge Cover (Golden Harvest)
191119787 Whirlpool Refrigerator Hinge Cover
20WP999367 Whirlpool Refrigerator Screw
21Hinge, Center
22Shim, Center (Repair)
22Shim, Hinge Center
23WP487802 Whirlpool Refrigerator Washer
24WP488296 Whirlpool Washer Refrigerator
25Screw
26Hinge Butt, Bottom
27Hinge Pin, Bottom
28Screw
29Shim, Bottom
30Washer, 7/64
31Cover, Glider Rail (White)
31Cover, Glider Rail (Almond)
31Cover, Glider Rail (Golden Harvest)
32Cover, Deck Rail (White)
32Cover, Deck Rail (Golden Harvest)
32Cover, Deck Rail (Almond)
33WPL 943552
33WPL 944831
33WPL 944833
34Filler, Wrapper Corner (2) (White)
34Filler, Wrapper Corner (2) (Golden Harvest)
34Filler, Wrapper Corner (2) (Almond)
35WPL 1119708
35Hole Plug (Almond)
35Hole Plug (White)
36Hole Plug (4) (Almond)
36Hole Plug (4) (Golden Harvest)
36Hole Plug (4) (White)
39WPL 942845
40Screw (Repair)
41WP489478 Whirlpool Refrigerator Screw
41SCREW
42W10812038 Whirlpool Refrigerator Clip
43549193 Whirlpool Refrigerator Power Clamp
44Cord, Service
45Clamp
46WPL 942813
47WPL 1106507
49WPL 1106511
518316810 Whirlpool Refrigerator Drain Tube
52WPL 519405
53WP489174 Whirlpool Refrigerator Screw
56WP2187501 Whirlpool Refrigerator Wire Harness
62WPL 1106510
