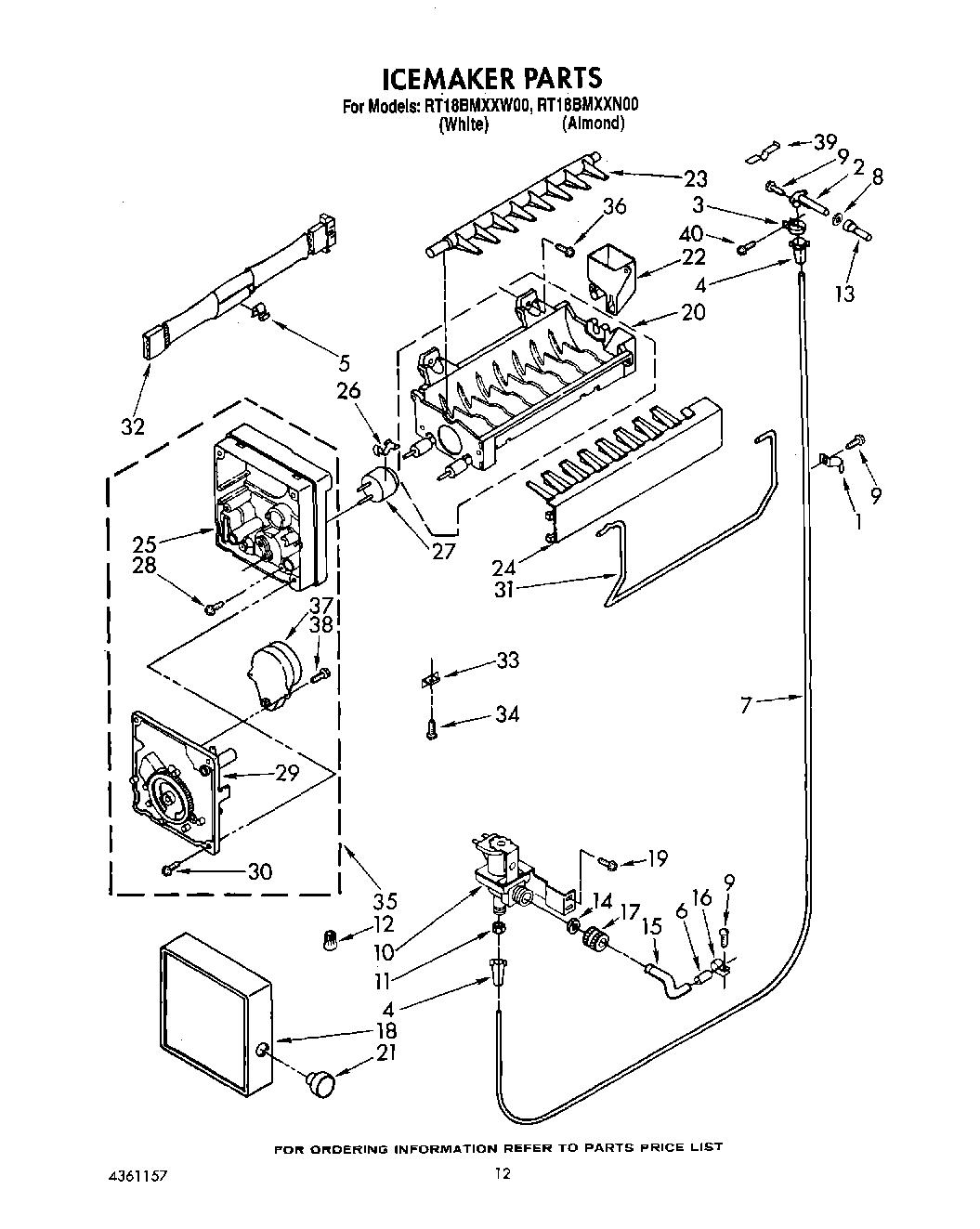

RT18BMXXL00 09 – ICEMAKER, LIT/OPTIONAL

RT18BMXXL00 09 – ICEMAKER, LIT/OPTIONAL

Written by

in

RT18BMXXL00 09 – ICEMAKER, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2154703
	WPL LIT4361157
	WPL LIT2150256
	WPL LIT2152525
	WPL LIT628107
	Torx Key
1	WP488366 Whirlpool Refrigerator Clamp
2	WP2196157 Whirlpool Fill Tube
3	WP488878 Whirlpool Refrigerator Tube Clamp
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
6	WP2158826 Whirlpool Refrigerator Dampener
7	W10823511 Whirlpool Refrigerator Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	WP489478 Whirlpool Refrigerator Screw
9	SCREW
10	4318047 Whirlpool Water Valve
11	WP627018 Whirlpool Refrigerator Nut
12	Wire Connector
13	Tube, Water Inlet
14	Washer
15	Tube, Inlet Valve
16	Clamp Tube
17	Nut, Valve
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	Knob, Water
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	WP627792 Whirlpool Refrigerator Shut Off Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
33	W11500948 Whirlpool Refrigerator Bracket
34	Screw, 8-32 x 27/64
35	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
36	WP488163 Whirlpool Refrigerator Screw
38	489136 Whirlpool Refrigerator Screw
39	Clip
40	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
40	350930 Whirlpool White Spray Paint
40	Almond (Uncut)
40	Leveler (Thinner)
40	WP72107 Whirlpool Touchup
40	799344 Whirlpool Refrigerator Paint
40	72017 Whirlpool Appliance Touch-Up Paint White
40	Golden Harvest
40	876370 Whirlpool Refrigerator Insulation
40	72032 Whirlpool Touch Up Paint Black
40	WP503695 Whirlpool Refrigerator Sealer
40	833938 Whirlpool Refrigerator Terminal
40	WP542638 Whirlpool Refrigerator Grease
40	606755 Whirlpool Refrigerator Bag
40	TAPE, VINYL (3/4 X 108“)
40	CEMENT, ALUMILASTIC (1 1/4 OZ.)
40	WPL 799833
40	WPL 876029
40	511873 Whirlpool Refrigerator Paint
40	WP505587 Whirlpool Refrigerator Sealer
40	350942 Whirlpool Spray Paint
40	212643 Whirlpool Refrigerator Permagum Sealer
40	Golden Harvest (Uncut)
40	WP488787 Whirlpool Refrigerator Screw
40	285006 Whirlpool Spray
40	350956 Whirlpool Spray Assembly
