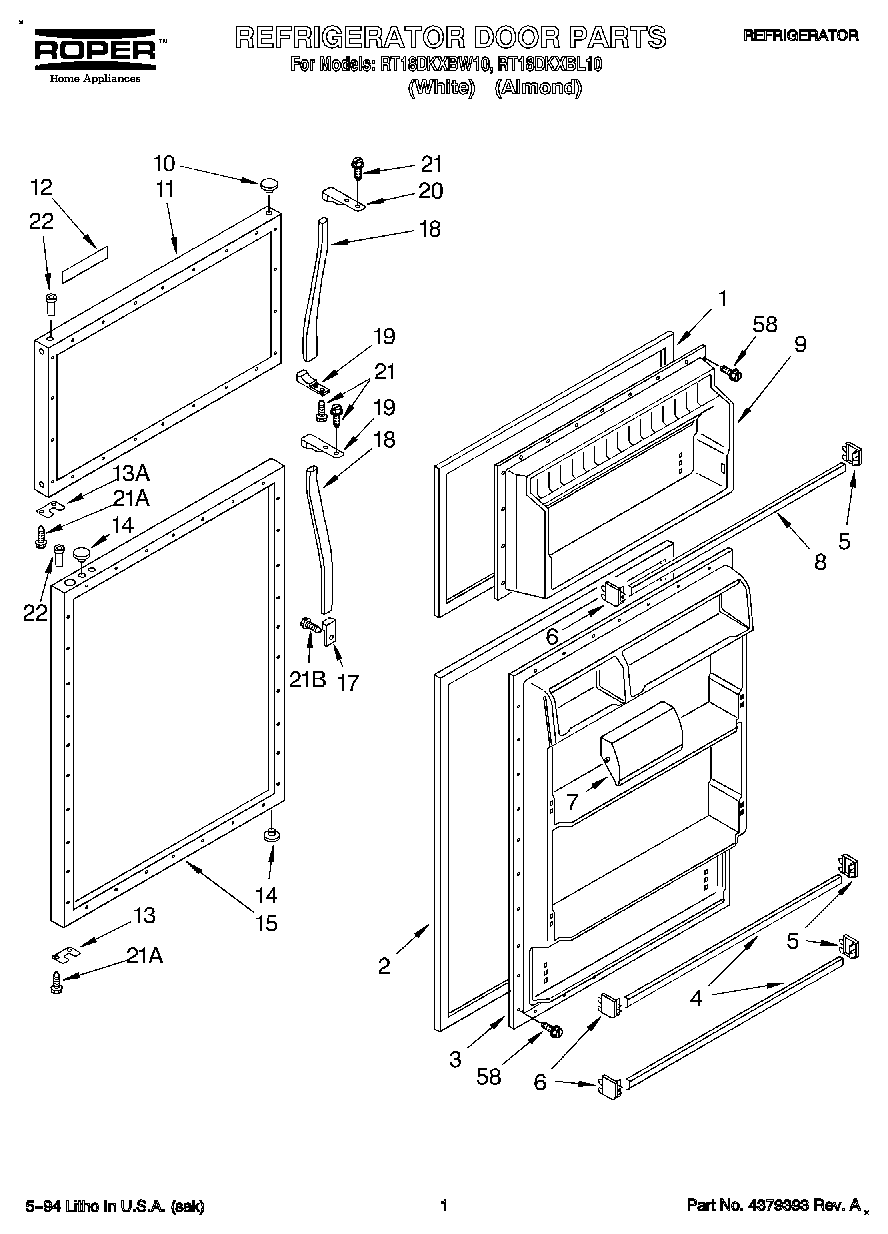

RT18DKXBL10 01 – REFRIGERATOR DOOR

Products

PositionProduct
1Gasket, Freezer Door (Magnetic)
2Gasket, Refrig. Door (Magnetic)
3Panel, Inner Door Refrigerator
4Rack, Door (2)
5Support, Door Rack (Right Hand)
6Support, Door Rack (Left Hand)
7Door, Dairy
8Rack, Door
9Panel, Inner Door (Freezer)
10Plug-Button, Hinge Brg. Hole (Almond)
10Hole Plug, Bearing Hinge (White)
11Panel, Freezer Door (With Insulation) (Almond)
11Panel, Freezer Door (With Insulation) (White)
12Nameplate
13Door Stop (Refr.) 13A
13Door Stop (Frzr.)
14Plug-Button, Handle/Dr Stop (White)
14Plug-Button, Handle/Dr Stop (Almond)
15Panel, Refr. Door (With Insulation) (Almond)
15Panel, Refr. Door (With Insulation) (White)
17819342 Whirlpool Refrigerator Endcap Kit
18Handle, Door (2)
20Handle End
21Screw, Cr Oval Hd. 10-24 D x 5/8 21B
21Screw, Cr Truss Head, 8-15 A x 3/4
21Screw, Handle Mtg. 8-32 D x 1/2 21A
22Bearing, Hinge
58Plug-Button, Refr. Door Front (Shim, Handle)
58Plug-Button, Refr. Door Front (Shim, Handle)
58Plug-Button, Ref. Door Front (White)
58Plug-Button, Ref. Door Front (Almond)
58WP1101634 Whirlpool Refrigerator Cover
58Screw, 8-15 A x 1/2
