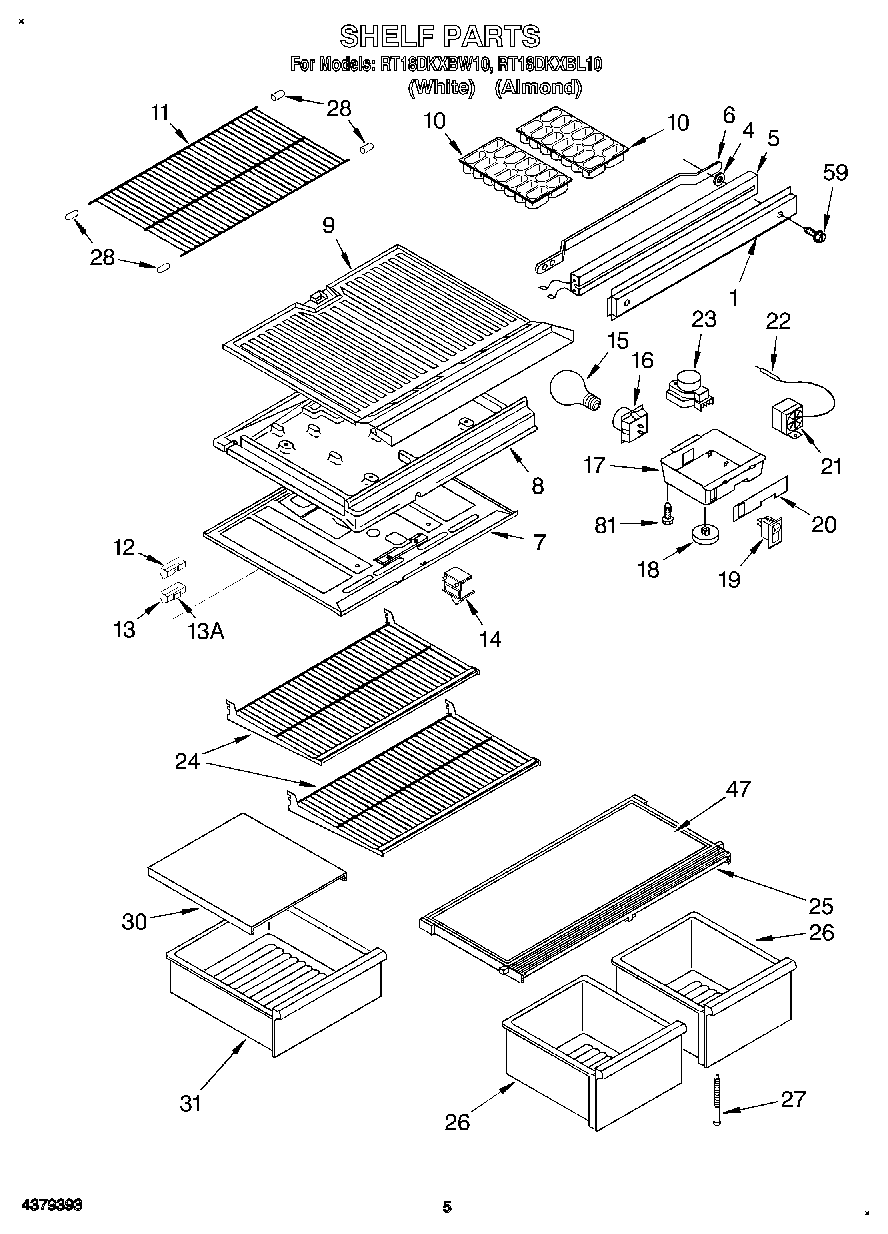

RT18DKXBL10 03 – SHELF

Products

Position	Product
1	Mullion (Almond)
1	Mullion (White)
4	Spacer, Mullion Mounting (2)
5	Heater, Mullion
6	Strap, Mullion Mounting
7	Top Panel, Refr., With Snap Bushing
8	Divider, Styrofoam
9	Bottom Panel, Frz.
10	WP841180A Whirlpool Microwave Glass Turntable Tray
11	Shelf, Freezer (Straight)
12	Deflector, Air (With Seal)
13	Cover, Air Deflector 13A
13	Extension, Air Deflector (With Insulation)
14	W11384469 Whirlpool Door Switch
15	W11679940 Whirlpool Refrigerator Light Bulb Assembly
16	Socket, Light/Lamp
17	Box, Control
18	Knob, Temp. Control
19	Switch, Energy Saver
20	Label, Control Box
21	Control, Temperature
22	Sleeve, Plastic Tube
23	Timer
24	Wire Shelf, Full Cantilever (2)
25	Cover, Crisper Pan
26	Pan, Crisper (Right Hand)
26	Pan, Crisper (Left Hand)
27	Support, Crisper Cover (Adjustable)
28	Cap, Protector
30	Cover, Meat Pan
31	Pan, Meat
47	Insert, Pan Cover (Glass)
59	WPL 4343326
81	Nut-Anchor
81	Plug-Button, Control Box
81	Seal, Air Deflector
81	Bushing, Snap-In (Plastic)
81	Screw, Timer Mtg., Cr Pan Head 6-20 x 7/16
81	Screw, Control Mtg., CR Pan Head 6-32 x 1/4
81	Screw, CR Truss Head, 8-10 x 1-3/4
81	WPL 4343328
81	Trim, Crisper Cover
