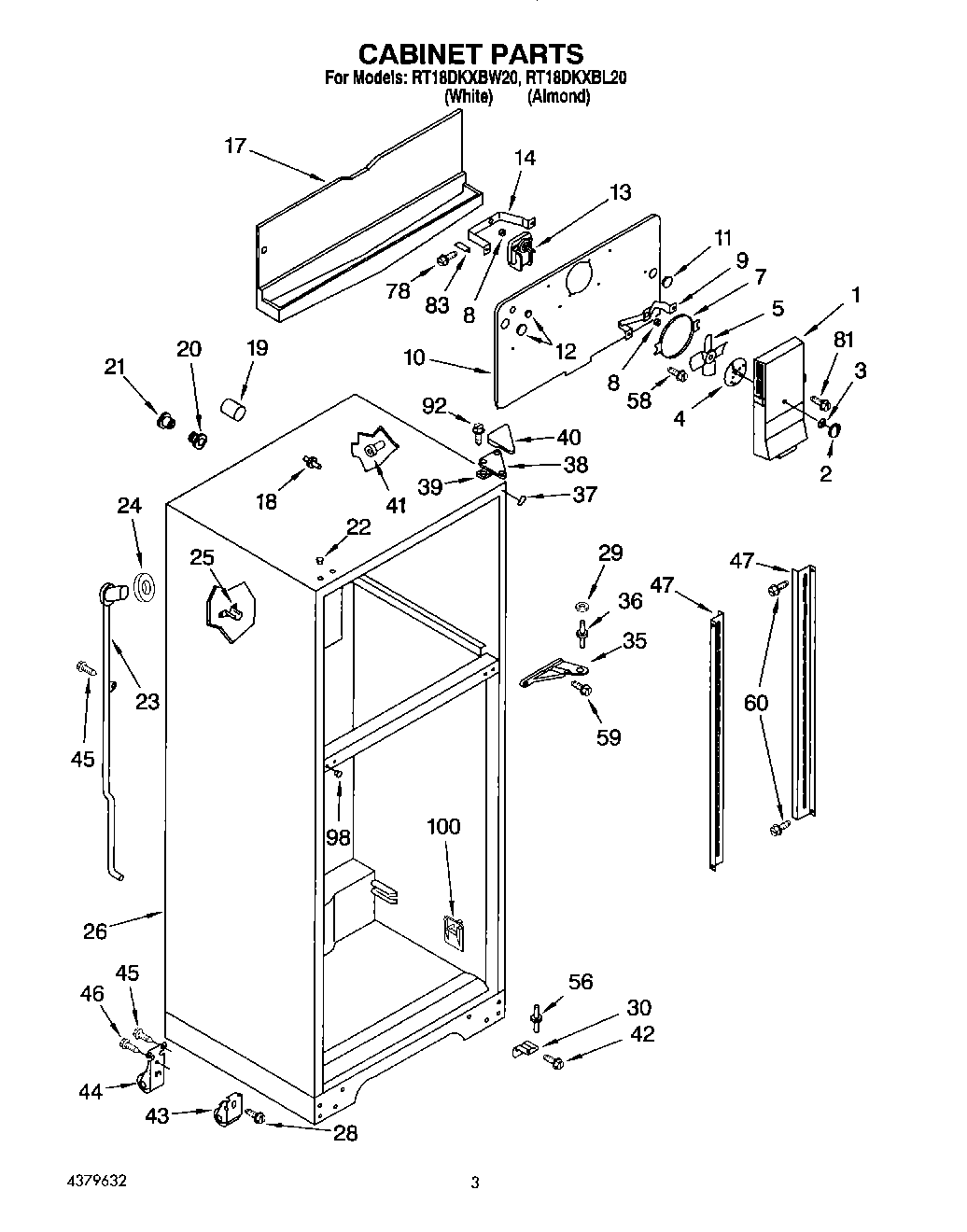

| 1 | Cover, Fan |
| 2 | Knob, Damper Control |
| 3 | Nut, Push-On |
| 4 | Damper, Fan Cover |
| 5 | Fan Blade |
| 7 | Ring, Fan Orifice |
| 8 | Bushing, Motor Mounting (2) |
| 9 | Bracket, Motor Mounting (Front) |
| 10 | Cover, Evap. Coil |
| 11 | Hole Plug |
| 12 | Hole Plug, Harness (Round) |
| 12 | Plug, Water Inlet Tube (Round) |
| 13 | Motor, Evap. Fan |
| 14 | Bracket, Motor Mounting (Rear) |
| 17 | Trough, Drain |
| 18 | Support, Evap. Cover (2) |
| 19 | Tube, Rubber |
| 20 | Ferrule, Inner |
| 21 | Ferrule, Outer |
| 22 | Hole Plug, Top Hinge (Almond) |
| 22 | Plug Button, Upper Hinge Holes (White) |
| 23 | Drain Tube, With Seal Ring |
| 24 | Seal Ring, Drain Tube |
| 25 | Spout, Drain Tube |
| 26 | Base, Cabinet |
| 28 | Bolt, Roller Adj., 1/4-28 x 2-3/4 (2) |
| 29 | Nylon Washer, .34 x .62 x .05 |
| 30 | Bracket, Lower Hng. |
| 35 | Bracket, Center Hinge (Light Grey) |
| 35 | Bracket, Center Hinge (Almond) |
| 36 | Pin, Center Hinge |
| 37 | Trim, Cabinet Corner (Almond) |
| 37 | Trim, Cabinet Corner (White) |
| 38 | Bracket, Upper Hinge |
| 39 | Shim, Upper Hinge |
| 40 | Cover, Upper Hinge (White) |
| 40 | Cover, Upper Hinge (Almond) |
| 41 | Grommet, Shelf/Rod Mounting (Left Hand) |
| 41 | Grommet, Shelf/Rod Mounting (Right Hand) |
| 42 | Screw, Hng/Gusset (1/4-20 x 5/8) |
| 43 | Roller Assembly, Front (2) |
| 44 | Rol |
| 46 | WPL 4339768 |
| 47 | WPL 4343325 |
| 56 | WPL 4343422 |
| 59 | WPL 4343326 |
| 78 | Screw, 8-15 A x 1/2 |
| 81 | WPL 4343328 |
| 83 | WPL 4339926 |
| 92 | WPL 4339444 |
| 98 | WPL 4343330 |
| 98 | WPL 4343329 |
| 100 | WPL 4343417 |
| 100 | WPL 4343331 |
| 100 | WPL 4343319 |
| 100 | WPL 4343313 |
| 100 | WPL 4343312 |
| 100 | WPL 4339512 |
| 100 | WPL 4343296 |
