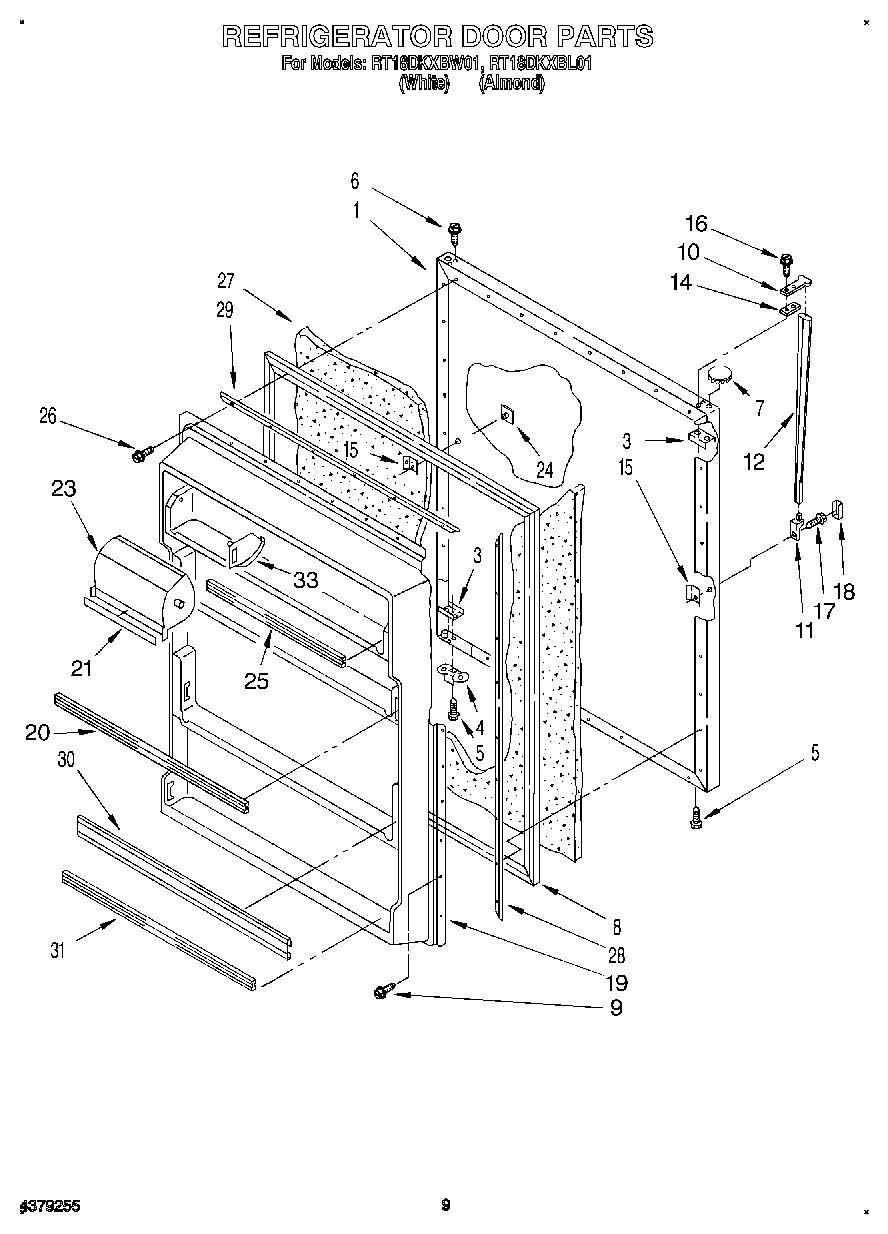

RT18DKXBW01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

RT18DKXBW01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

RT18DKXBW01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2154075
	WPL LIT2173250
	WPL LIT2157983
	Torx Key
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
1	Panel, Refrigerator Door (Also Order Item 27) (White)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
10	819342 Whirlpool Refrigerator Endcap Kit
12	Handle, Center
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP1101634 Whirlpool Refrigerator Cover
19	Interior Door Panel
21	Trim, Compartment Door
23	Compartment Door, Utility
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	Hole Plug, Handle (Almond)
25	TRIM-DOOR
28	Retainer, Gasket Side (2)
29	WPL 1115137
30	Trim, Door Shelf
33	72032 Whirlpool Touch Up Paint Black
33	Hinge Pin, Center
33	350930 Whirlpool White Spray Paint
33	Door Reversal Instructions
33	285006 Whirlpool Spray
33	WP542638 Whirlpool Refrigerator Grease
33	212643 Whirlpool Refrigerator Permagum Sealer
33	Golden Harvest (Uncut)
33	Golden Harvest
33	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
33	Almond (Uncut)
33	Leveler (Thinner)
33	WP72107 Whirlpool Touchup
33	799344 Whirlpool Refrigerator Paint
33	72017 Whirlpool Appliance Touch-Up Paint White
33	350942 Whirlpool Spray Paint
33	511873 Whirlpool Refrigerator Paint
33	WPL 876029
33	WPL 799833
33	CEMENT, ALUMILASTIC (1 1/4 OZ.)
33	TAPE, VINYL (3/4 X 108“)
33	WP505587 Whirlpool Refrigerator Sealer
33	WP503695 Whirlpool Refrigerator Sealer
33	876370 Whirlpool Refrigerator Insulation
33	833938 Whirlpool Refrigerator Terminal
33	606755 Whirlpool Refrigerator Bag
33	350956 Whirlpool Spray Assembly
