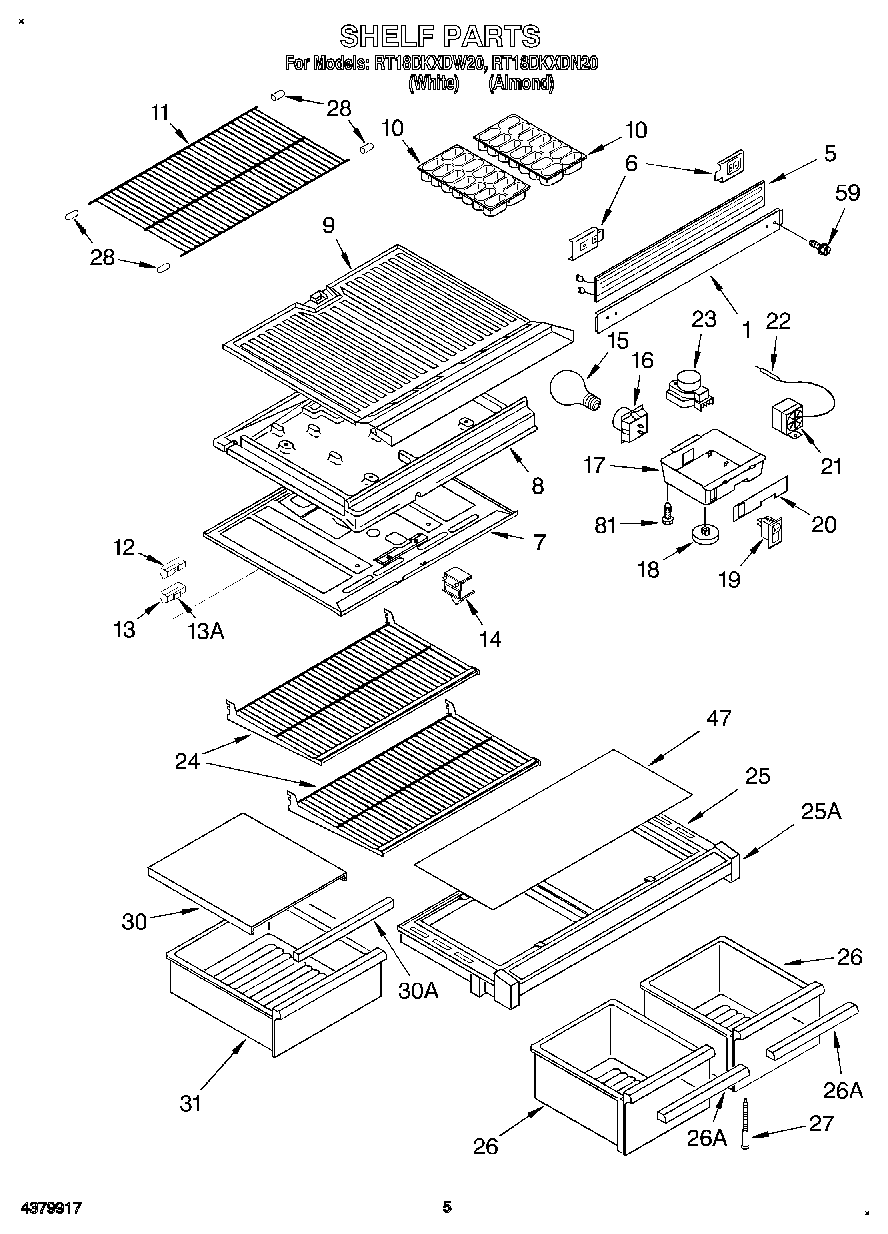

RT18DKXDN20 03 – SHELF

Products

Position	Product
1	Mullion (White)
1	Mullion (Almond)
5	Heater, Mullion
6	Tapping Plate, Mullion Mounting
7	Top Panel, Refr., With Snap Bushing
8	Divider, Styrofoam
9	Bottom Panel, Frz.
10	WP841180A Whirlpool Microwave Glass Turntable Tray
11	Shelf, Freezer (Straight)
12	Deflector, Air (With Seal)
13	Cover, Air Deflector 13A
13A	Extension, Air Deflector (With Insulation)
14	W11384469 Whirlpool Door Switch
15	W11679940 Whirlpool Refrigerator Light Bulb Assembly
16	Socket, Light/Lamp
17	Box, Control
18	Knob, Temp. Control
19	Switch, Energy Saver
20	Label, Control Box
21	Control, Temperature
22	Sleeve, Plastic Tube
23	Timer
24	Wire Shelf, Full Cantilever (2)
25	Cover, Crisper Pan
25A	Trim, Crisper Cover
26A	Trim, Crisper Pan (Left Hand)
26	Pan, Crisper (Right Hand)
26	Pan, Crisper (Left Hand)
26A	Trim, Crisper Pan (Right Hand)
27	Support, Crisper Cover (Adjustable)
28	Cap, Protector
30A	Trim, Meat Pan
30	Cover, Meat Pan
31	Pan, Meat
47	Insert, Pan Cover (Glass)
59	WPL 4343326
81	Harness-Wir
81	WPL 4343328
81	Screw, CR Truss Head, 8-10 x 1-3/4
81	Screw, Control Mtg., CR Pan Head 6-32 x 1/4
81	Screw, Timer Mtg., Cr Pan Head 6-20 x 7/16
81	Bushing, Snap-In (Plastic)
81	Seal, Air Deflector
81	Plug-Button, Control Box
81	Nut-Anchor
