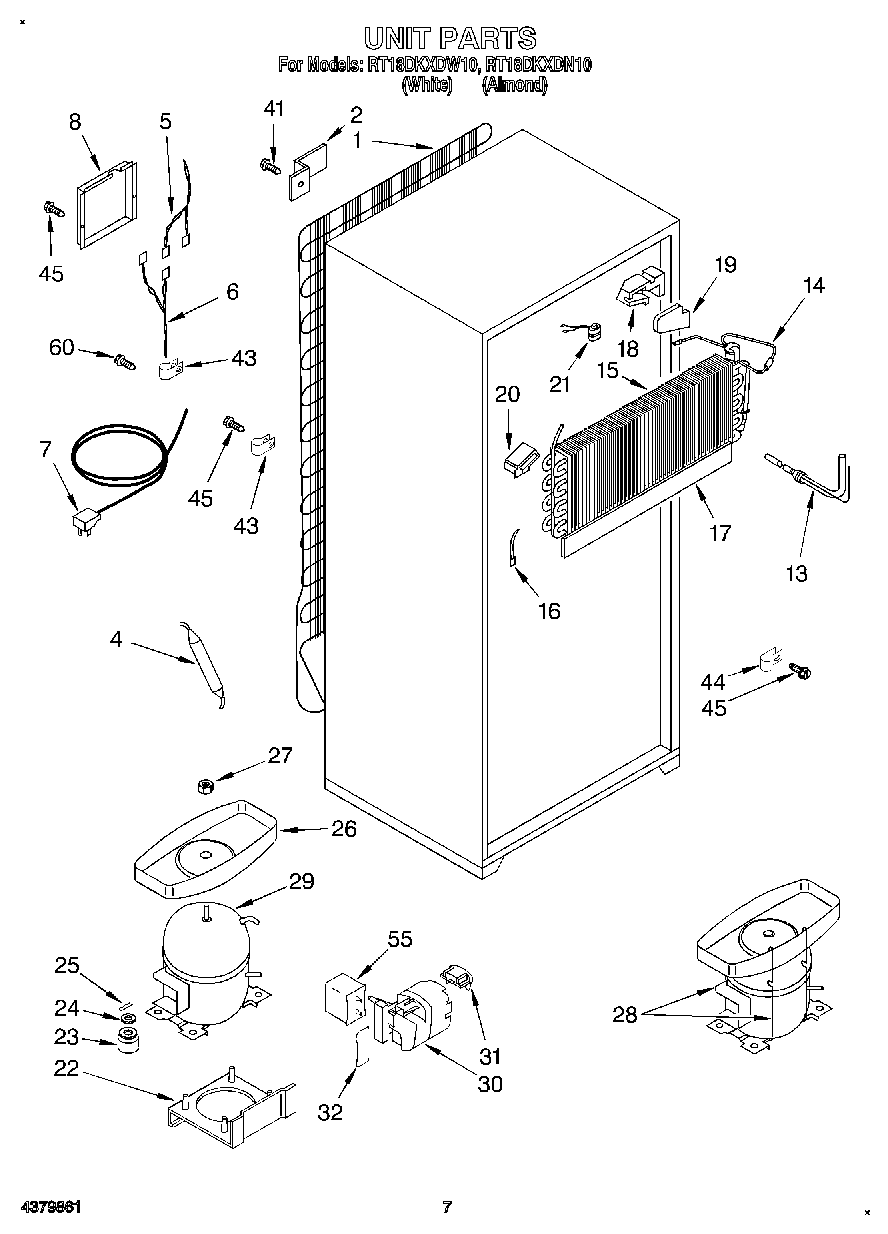

RT18DKXDW10 04 – UNIT, LIT/OPTIONAL

RT18DKXDW10 04 – UNIT, LIT/OPTIONAL

Written by

in

RT18DKXDW10 04 – UNIT, LIT/OPTIONAL

Products

PositionProduct
WPL LIT4343344
WPL 2171718
WPL LIT4343431
Torx Key
WPL LIT4343430
1Condenser
2Bracket, Condenser Mounting (4)
4W10843121 Whirlpool Refrigerator Tube
5Harness-Wiring, Control/Divider
6Harness-Wiring, Compressor
7Cord, Electric Power
8Cover, Wiring
13Heat Exchanger, Suction Line
14Heater, Defrost
15Evaporator
16Strap, Evaporator/ Heater (Aluminum)
17Insulator, Evap. (Plastic)
18Insulation Block, Right Hand
19Insulation Plug, Right Hand
20Insulation Block, Left Hand
21Thermostat, Defrost
22Plate, Compressor Mounting
23Grommet, Compressor Mounting
24Washer, Compressor Mounting
25Clip, Compressor Mounting
26Pan-Defrost Drain, Orig/Svce Compr
27Nut-Lock, 1/4-20 Drain Pan Mounting
28Pan Retainer Kit, Service
29W10439652 Whirlpool Refrigerator Compressor
30Starter-PTC
314388953 Whirlpool Overload Relay
32Wire-Bale
41WPW10141625 Whirlpool Refrigerator Screw Assembly
43Clamp, Wiring Harness
44Clamp, Nylon
45Screw, 8-15 A x 1/2
55Capacitor, Run
60Golden Harvest (Uncut)
60WPL 4343382
60WPL 4343374
60WPL 4343366
60606755 Whirlpool Refrigerator Bag
60511873 Whirlpool Refrigerator Paint
60350942 Whirlpool Spray Paint
60212643 Whirlpool Refrigerator Permagum Sealer
60Golden Harvest
6072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
60Almond (Uncut)
60WP72107 Whirlpool Touchup
60799344 Whirlpool Refrigerator Paint
6072017 Whirlpool Appliance Touch-Up Paint White
60350956 Whirlpool Spray Assembly
60833938 Whirlpool Refrigerator Terminal
60876370 Whirlpool Refrigerator Insulation
60WPL 4343365
60285006 Whirlpool Spray
60WPL 4343327
6072032 Whirlpool Touch Up Paint Black
60WPL 876029
60WPL 799833
60CEMENT, ALUMILASTIC (1 1/4 OZ.)
60TAPE, VINYL (3/4 X 108“)
60WP542638 Whirlpool Refrigerator Grease
60WP505587 Whirlpool Refrigerator Sealer
60WP503695 Whirlpool Refrigerator Sealer
60350930 Whirlpool White Spray Paint
