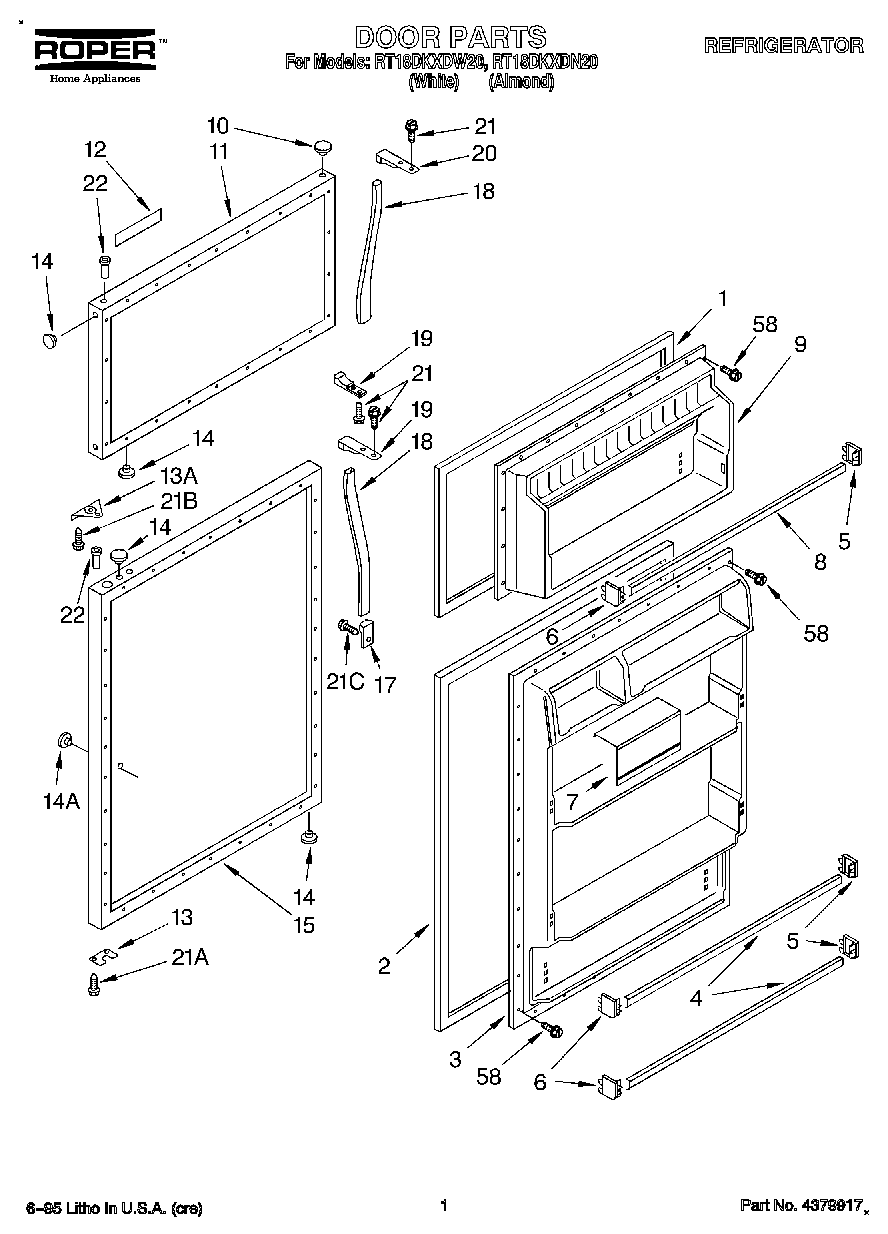

RT18DKXDW20 01 – DOOR

Products

Position	Product
1	Gasket, Freezer Door (Magnetic)
2	Gasket, Refrig. Door (Magnetic)
3	Panel, Inner Door Refrigerator
4	Rack, Door (2)
5	Support, Door Rack (Right Hand)
6	Support, Door Rack (Left Hand)
7	Door, Dairy
8	Rack, Door
9	Panel, Inner Door (Freezer)
10	Plug-Button, Hinge Brg. Hole (Almond)
10	Hole Plug, Bearing Hinge (White)
11	Panel, Freezer Door (With Insulation) (Almond)
11	Panel, Freezer Door (With Insulation) (White)
12	Nameplate
13	Door Stop (Refr.) 13A
13A	Door Stop (Frzr.) (Almond)
13A	Door Stop (Frzr.) (White)
14A	Plug-Button, Ref. Door Front (Almond)
14A	Plug-Button, Ref. Door Front (White)
14	Plug-Button, Handle Mtg. (White)
14	Plug-Button, Handle Mtg. (Almond)
15	Panel, Refr. Door (With Insulation) (White)
15	Panel, Refr. Door (With Insulation) (Almond)
17	819342 Whirlpool Refrigerator Endcap Kit
18	Handle, Door (2)
20	Handle End
21	Screw, Handle Mtg. 8-32 D x 1/2 21A
21C	Screw, CR Truss Head, 8-15 A x 3/4
21B	Screw, Cr Truss Head, 10-32 x 1/2
21A	Screw, Cr Oval Hd. 10-24 D x 5/8
22	Bearing, Hinge
58	Screw, 8-15 A x 1/2
58	Plug-Button, Refr. Door Front (Shim, Handle)
58	Plug-Button, Refr. Door Front (Shim, Handle)
58	WP1101634 Whirlpool Refrigerator Cover
