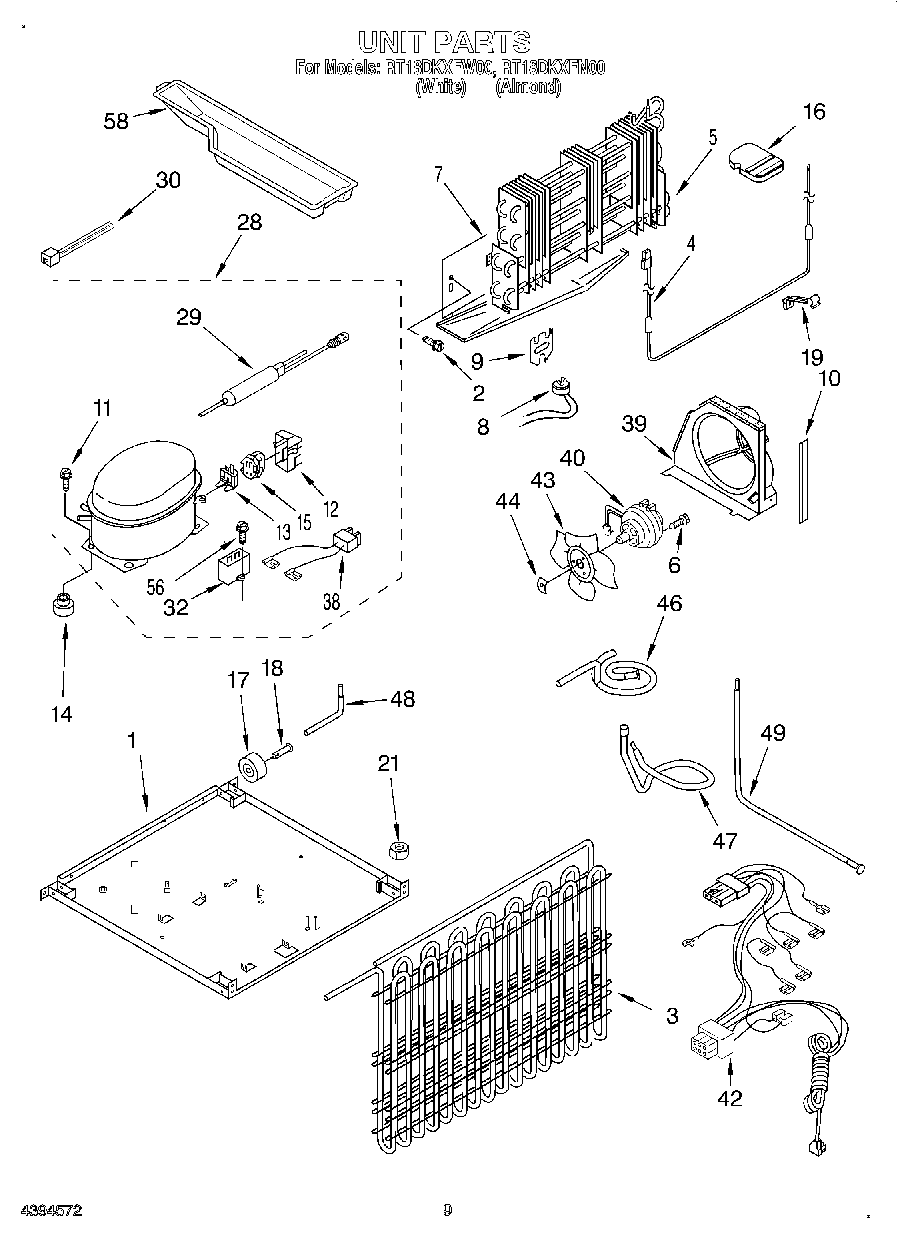

RT18DKXFN00 06 – UNIT, LIT/OPTIONAL

Products

PositionProduct
Torx Key
WPL LIT677971
WPL LIT2195481
Literature Parts (Do-It-Yourself Manual Ref./Frz.)
WPL LIT2195381
WPL LIT2195583
1Plate, Unit Mounting
2WP489478 Whirlpool Refrigerator Screw
3Condenser
4WP2315531 Whirlpool Refrigerator Heater
5Evaporator Assy.
6WP8281196 Whirlpool Screw
7Drain Pan
8WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
9Bracket, Heater
10Extension, Air Baffle
11SCREW
12WP2162358 Whirlpool Refrigerator Terminal Cover
134387913 Whirlpool Refrigerator Primary Overload Relay
13WP2149959 Whirlpool Refrigerator Overload
14876811 Whirlpool Grommet
14W11661108 Whirlpool Grommet
15Relay (See Overload)
16Support Block
174388239 Whirlpool Refrigerator Primary Cabinet Roller
18W11594405 Whirlpool Axle
19Clip, Heater
21Nut (Not Serviced)
28Installation Kit
28W10823815 Whirlpool Refrigerator Compressor
28876765 Whirlpool Primary Mounting Kit Refrigerator
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32Capacitor
38WP2172890 Whirlpool Refrigerator Wire
39Air Baffle
40W10822259 Whirlpool Refrigerator Condenser Fan Motor
42Wire Assy. Unit
43Blade, Fan
44WP486692 Whirlpool Refrigerator Nut
46Tube, Discharge
47Tube, Suction
48W10528578 Whirlpool Refrigerator Tube
49Tube, Condenser To Heat Loop
56W11693756 Whirlpool Screw Assembly
58212643 Whirlpool Refrigerator Permagum Sealer
58Evap. Tray
58Start Kit
58350956 Whirlpool Spray Assembly
58VALVE, ACCESS (5/8“)
58Almond (Uncut)
58WP72107 Whirlpool Touchup
58350930 Whirlpool White Spray Paint
58Door Reversal Instructions
58799344 Whirlpool Refrigerator Paint
5872017 Whirlpool Appliance Touch-Up Paint White
58TAPE, VINYL (3/4 X 108“)
58350942 Whirlpool Spray Paint
58876370 Whirlpool Refrigerator Insulation
58WPL 876029
58WPL 799832
58CEMENT, ALUMILASTIC (1 1/4 OZ.)
58285006 Whirlpool Spray
5872032 Whirlpool Touch Up Paint Black
58WP978025 Whirlpool Refrigerator Valve
58978030 Whirlpool Refrigerator Valve
58WP542638 Whirlpool Refrigerator Grease
58978027 Whirlpool Refrigerator Primary Valve
58WP505587 Whirlpool Refrigerator Sealer
58978026 Whirlpool Refrigerator Primary Valve
58VALVE, ACCESS (1/2“)
58876764 Whirlpool Refrigerator Primary Valve
58WP503695 Whirlpool Refrigerator Sealer
58833938 Whirlpool Refrigerator Terminal
58606755 Whirlpool Refrigerator Bag
58511873 Whirlpool Refrigerator Paint
58WPL 799833
