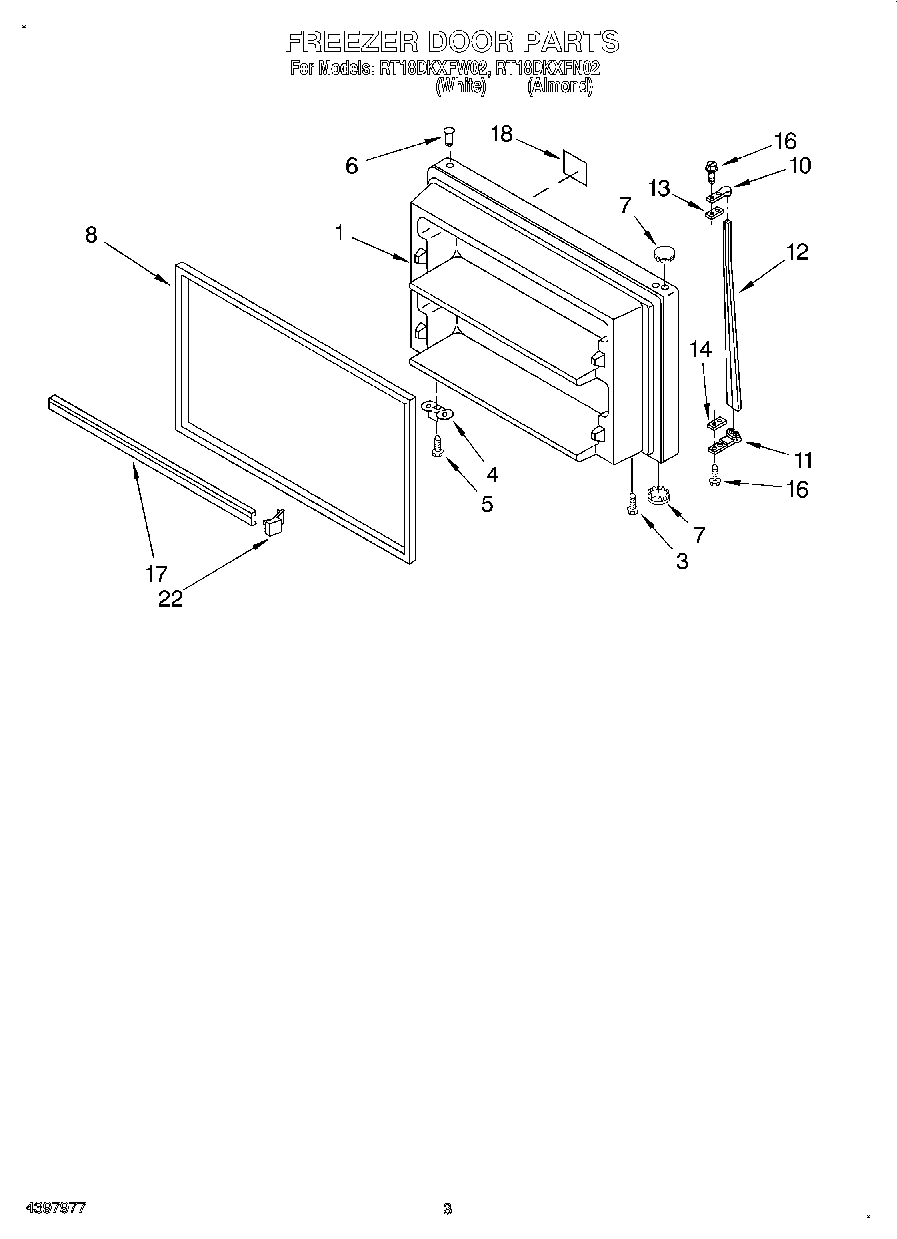

RT18DKXFN02 02 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Illus. 4, 17 & 18) (White)
1	Freezer Door (Includes No.22 & No.23) (Almond)
3	WP8281206 Whirlpool Refrigerator Screw
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	2159327 Whirlpool Refrigerator Door Gasket
11	819342 Whirlpool Refrigerator Endcap Kit
12	Handle, Center
13	Shim, Handle
14	Spa
16	WP488920 Whirlpool Refrigerator Screw
17	Trim-Door (2)
18	Nameplate
22	ENDCAP
100	FeaturePak (Includes 12,20) Also See Ref. & Frz. Dr. Pgs.
